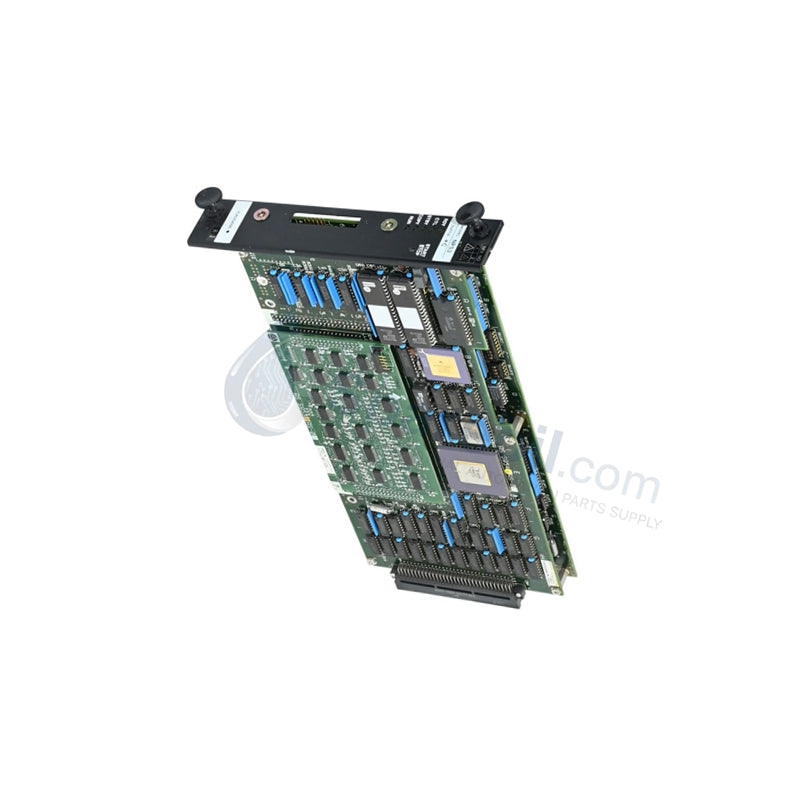

Yokogawa NP54C Processor Card AS-S9360AQ-01

Yokogawa NP54C Processor Card AS-S9360AQ-01 | New & Original Stock

Availability: 99 left in stock

Yokogawa NP54*C CENTUM Series Enhanced MFCU Processor Card The Yokogawa NP54*C, also cataloged as the Yokogawa NP54-C Enhanced MFCU Processor...

SKU: NP54*C

Manufacturer: Yokogawa
Product No.: NP54*C
Product Type: CPU Processors
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

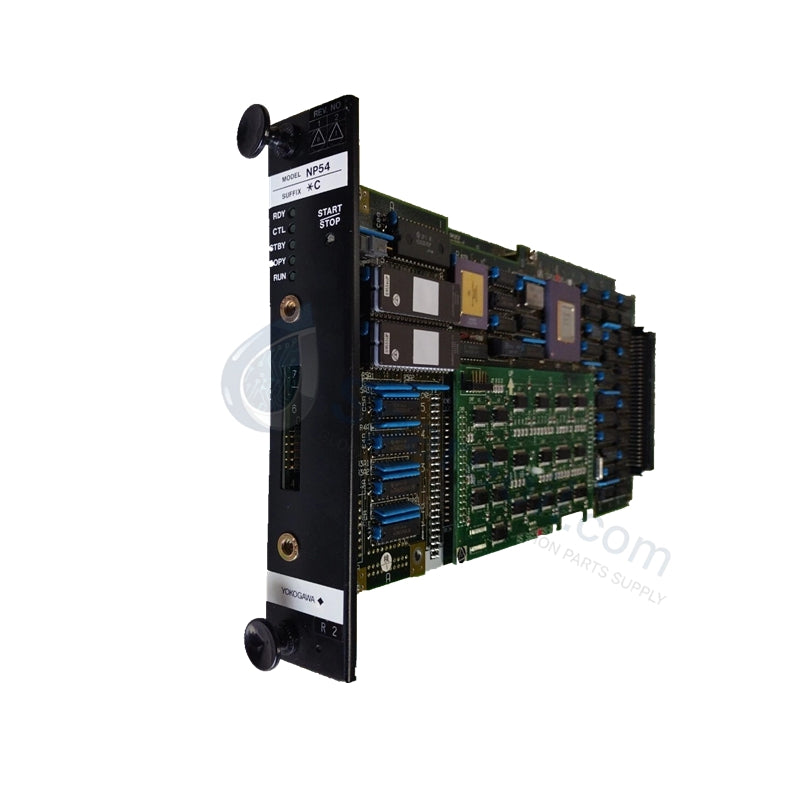

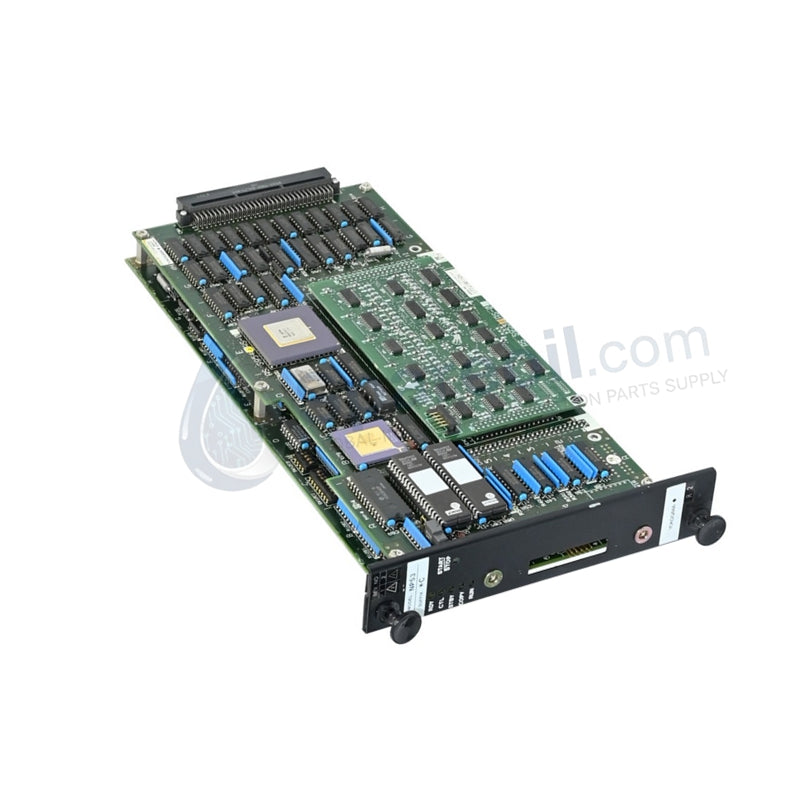

Yokogawa NP54*C CENTUM Series Enhanced MFCU Processor Card

The Yokogawa NP54*C, also cataloged as the Yokogawa NP54-C Enhanced MFCU Processor Card (AS-S9360AQ-01 / AS-S9532AS-0), operates as a dedicated hardware component for industrial process computation and data communication management within CENTUM VP, CENTUM XL, and u-XL network architectures.

Hardware Specifications

Parameter	Specification
Model	NP54*C (NP54-C / AS-S9360AQ-01 / AS-S9532AS-0)
Brand	Yokogawa
Origin	Japan
Weight	0.9 kg (Module baseline parameters; alternative card profiles list ~0.7 kg)
Dimensions	17.8 cm x 5.1 cm x 33.0 cm (Alternative housing footprints: 220 mm x 210 mm x 80 mm)
Operating Temp	-10 to +55 deg C (Extended configuration ranges expand from -40 to +70 deg C)
Power Consumption	Power Capacity: ~120 W maximum
Module Type	Enhanced Multi-Function Control Unit (MFCU) Processor Card
Input Voltage Range	100-120 VAC or 200-240 VAC, 50/60 Hz (Dual terminal configurations)
Output Voltage	24 VDC regulated
Output Current	Up to 5 A
Isolation Boundaries	Galvanic isolation between input power and processor logic core
Circuit Protection	Over-voltage, over-current, and short-circuit protection
Status Diagnostics	Onboard Power ON and Fault LED status arrays
Mounting Compatibility	Form-fit execution for horizontal (RYH-32) and vertical (RYV-11) nests
Operating Humidity	5% to 95% RH, non-condensing

Process Control & DCS Instrumentation Properties

The Yokogawa NP54*C coordinates process execution routines by serving as a dual-purpose Enhanced MFCU processing engine and regulated power distribution terminal for downstream instrumentation nests. The module incorporates localized galvanic isolation barriers to prevent AC line anomalies from feeding into the high-speed data acquisition loops, generating a stable 24 VDC regulated output rated up to 5 A. The central logic circuit utilizes real-time self-diagnostics to flag processing degradation, shifting the status indicator matrix instantly if the 120 W power capacity undergoes an over-current or short-circuit thermal excursion.

Frequently Asked Questions

Q: How does the processor module respond during an internal memory or execution stack freeze?

A: The board includes a hardware-level watchdog timer completely independent of the microcode execution loop. If a processing error or logic lock occurs, the processor drops its communication loops immediately and trips the front-panel Fault LED to alert the engineering station.

Q: What input power terminal adjustments are required to switch from a 115 VAC to a 230 VAC utility line?

A: Voltage matching is achieved via physical configuration links. The input lines must be hardwired to the precise terminal layout on the host RYH-32 or RYV-11 nest backplane to prevent damage to the primary transformation stage.

Q: Can this processor card be extracted from the active busbar assembly while the DCS node is energized?

A: No, unassisted hot-swapping is restricted. Because the card controls multi-function process logic and acts as an integrated 120 W power supply for linked I/O sub-assemblies, its extraction kills the shared DC rail, disrupting field communication networks.

Field Installation Guidelines

Backplane Insertion Controls: Track the processor card vertically down the guide tracks of the horizontal RYH-32 or vertical RYV-11 nest assembly. Push firmly until the dual connectors seal against the backplane pin cluster, then lock the retention fasteners.
AC Input Conduit Separation: Run all incoming 100-120 VAC / 200-240 VAC feeder lines in a dedicated metal wireway. Keep these AC supply lines isolated from low-voltage RS-485 connections or 4-20 mA instrumentation loops to limit capacitive noise induction.
Chassis Earth Ground Continuity: Connect a heavy-gauge copper grounding conductor from the nest chassis earth terminal directly to the plant's dedicated low-impedance master instrument ground array, bypassing standard electrical utility neutrals.
Thermal Convection Management: Verify that the enclosure layout retains unobstructed open spaces above and below the processing nest. High-density execution loads at 120 W capacities require constant air movement to prevent the module from climbing past the 55 deg C ambient threshold.
