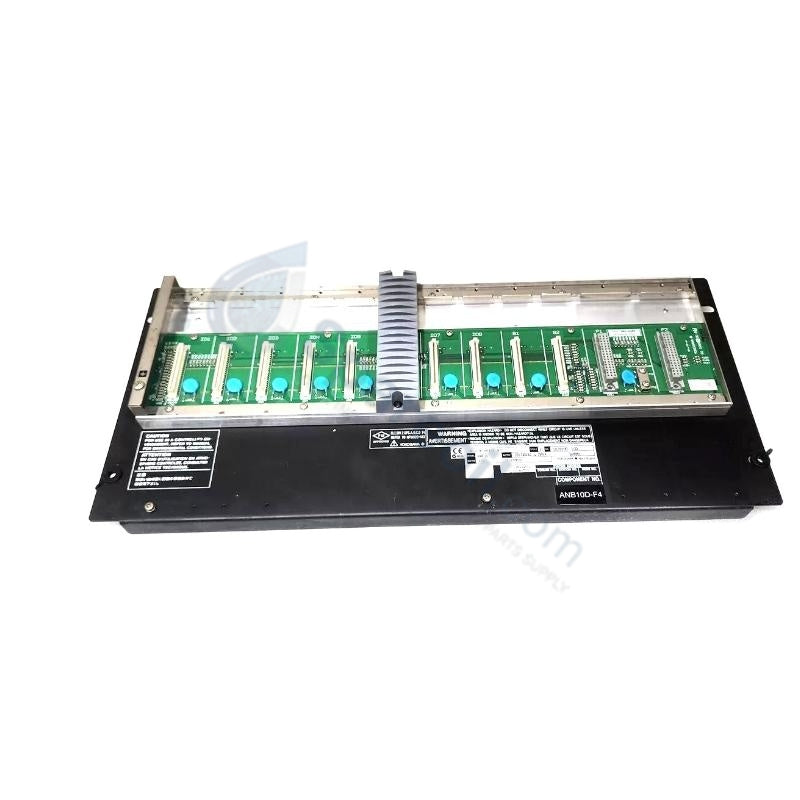

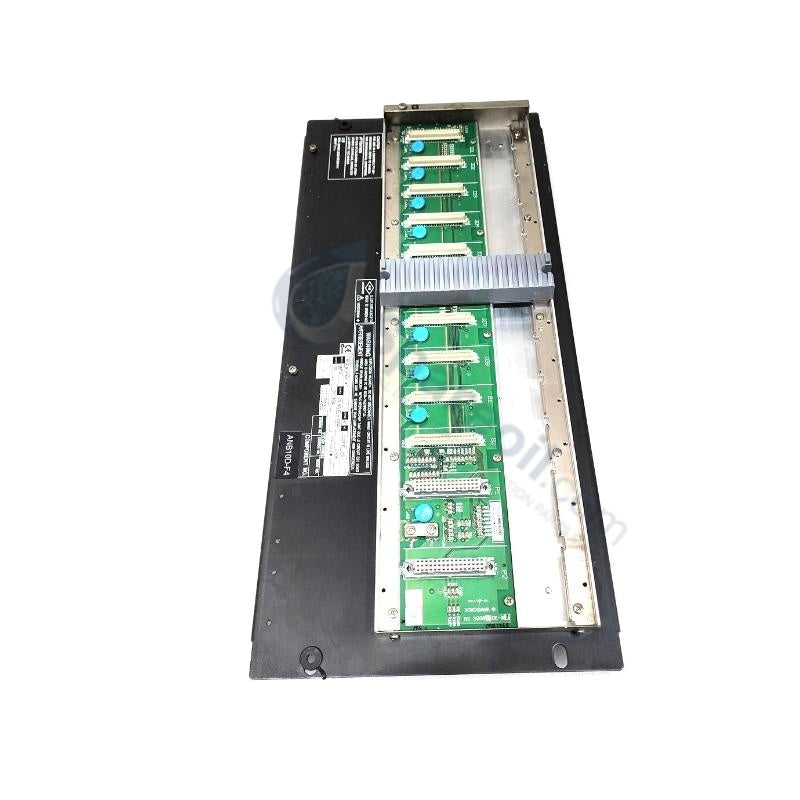

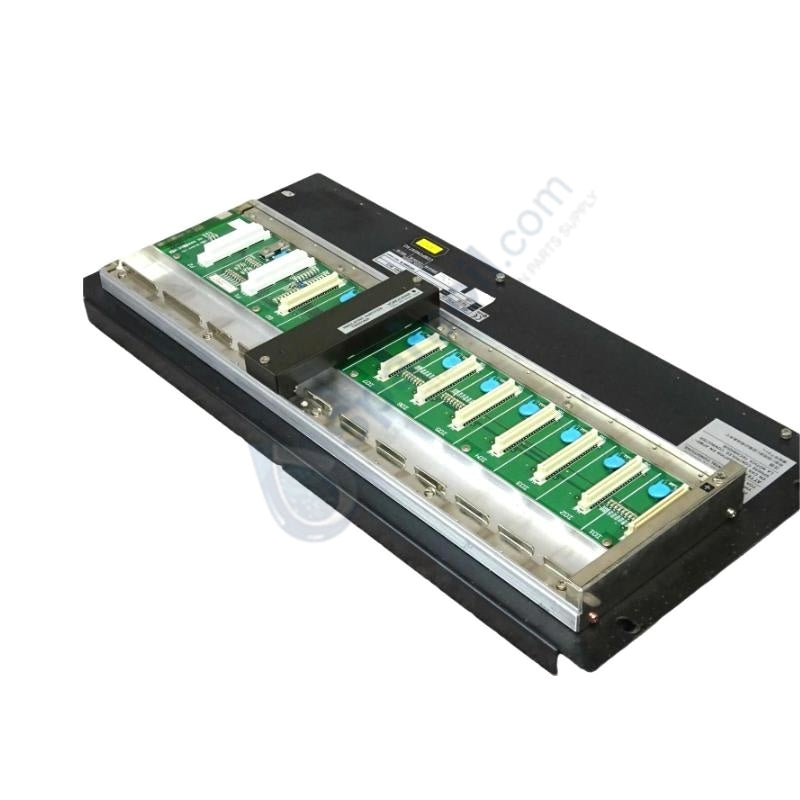

Yokogawa SNB10D-223/CU2N ProSafe-RS Safety Node Unit

The Yokogawa SNB10D-223/CU2N, also cataloged as the SNB10D Safety Node Unit, operates as a dedicated hardware component for safety I/O expansion signal distribution and power delivery within Yokogawa ProSafe-RS platforms.

Suffix Breakdown & Model Matrix

Suffix / Option Code Option Description
SNB10D Base Model Safety Node Unit chassis for ProSafe-RS SIS
-2 Power Supply Voltage 100 V AC to 120 V AC line voltage rating
2 Power Redundancy Dual-redundant power supply configuration
3 Hardware Setup Mounting and internal bus compliance specification
** /CU2N** Option Code Specialized connector / interface option variant

Hardware Specifications

Parameter Specification
Model SNB10D-223/CU2N
Brand Yokogawa
Origin Japan
Weight 0.52 kg to 8.0 kg (chassis base to fully populated rack)
Dimensions 18.4 cm x 15.0 cm x 3.0 cm (base unit footprint)
Operating Temp -20 deg C to 70 deg C (ISA G3 compliant)
Power Consumption 200 VA maximum
Input Line Voltage 100 V AC to 120 V AC (50/60 Hz)
System Compatibility Yokogawa ProSafe-RS Safety Instrumented System (SIS)
Slot Capacity Up to 8 safety I/O module slots plus dedicated power/bus slots
Bus Architecture Dual-redundant ESB Bus / ER Bus communication interface
Safety Compliance SIL3 capable in ProSafe-RS Safety Control Station configuration
Mounting Format Standard 19-inch panel rack mounting

4-20 mA HART Loop Protocol and Channel Isolation

The SNB10D-223/CU2N safety node unit routes analog inputs, 4-20 mA HART loop protocol parameters, and discrete field signals across backplane isolation barriers to the central Safety Control Station (SCS). High-integrity photocoupler circuits enforce channel-to-channel isolation and field-to-system galvanic separation, preventing electrical transients from propagating across safety logic loops. Continuous diagnostic loops monitor backplane power levels, transceiver state integrity, and I/O module health to ensure deterministic safety execution.

Frequently Asked Questions

Q: How does the dual-redundant power module design maintain safety execution during a single AC line drop?

A: The chassis houses two isolated power supply units fed by independent 100-120 V AC sources. If one line or power module fails, the redundant module instantly handles the total internal backplane load without triggering false trips or dropping communication with the SCS.

Q: Can safety I/O modules installed within the SNB10D-223/CU2N rack be replaced without de-energizing the safety system?

A: Hot-swapping supported I/O modules within an active SNB10D chassis is permitted, provided field technicians follow proper ESD grounding protocols and verify that the SCS recognizes the module removal state beforehand.

Field Installation Guidelines

Position the SNB10D-223/CU2N unit inside a 19-inch instrument cabinet frame. Secure the chassis using all four rack-mounting screws to resist cabinet vibration and maintain ground continuity.

Connect both 100-120 V AC feed lines to their respective power terminal connections. Route dual ESB Bus cables in separate wiring conduits to protect redundant signal pathways from simultaneous mechanical damage, and ground all cable shield drain wires at the main cabinet earth bar.
