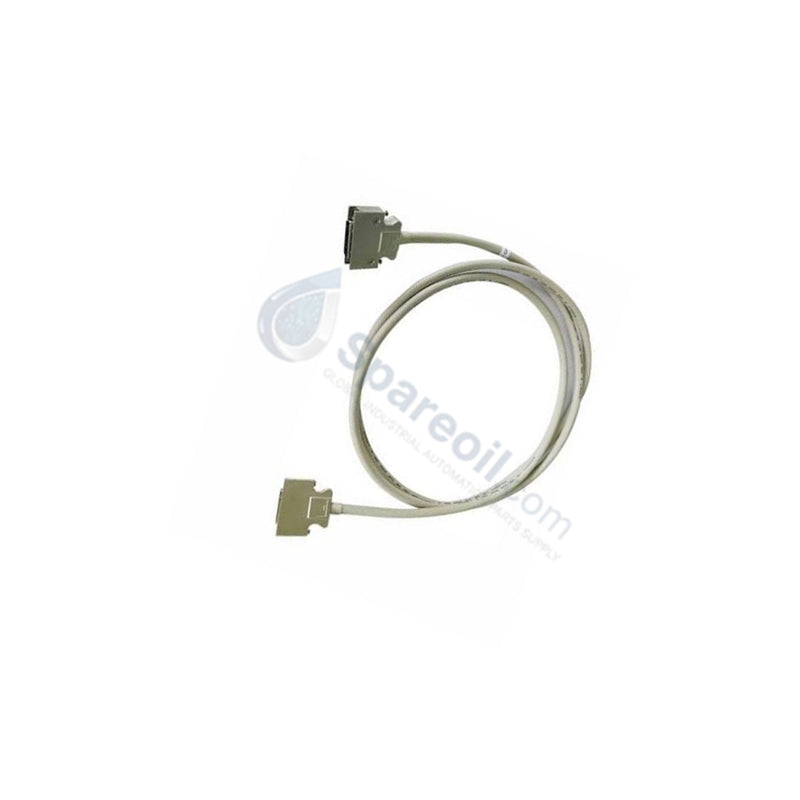

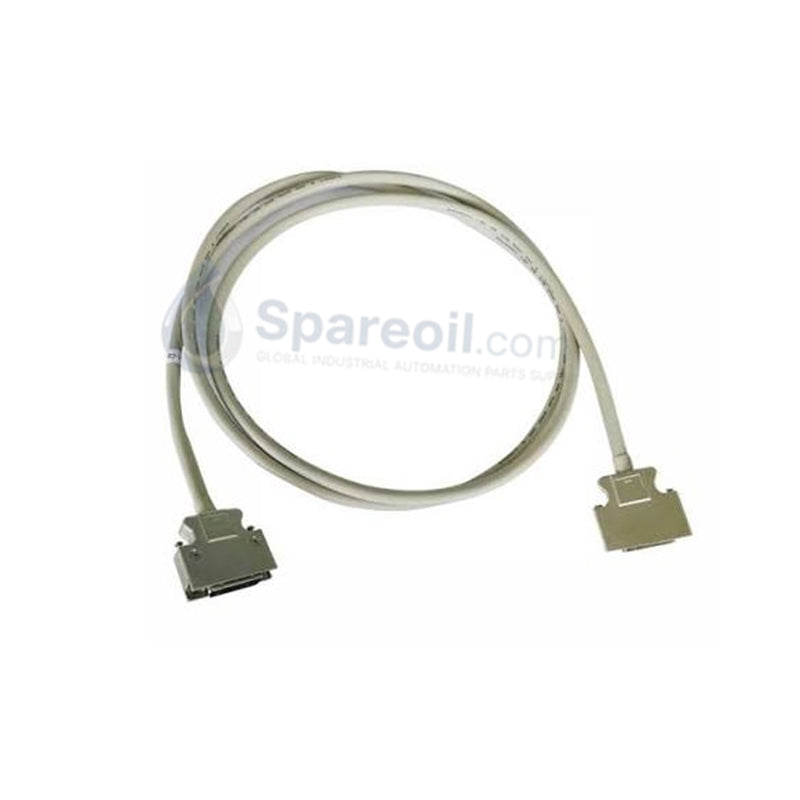

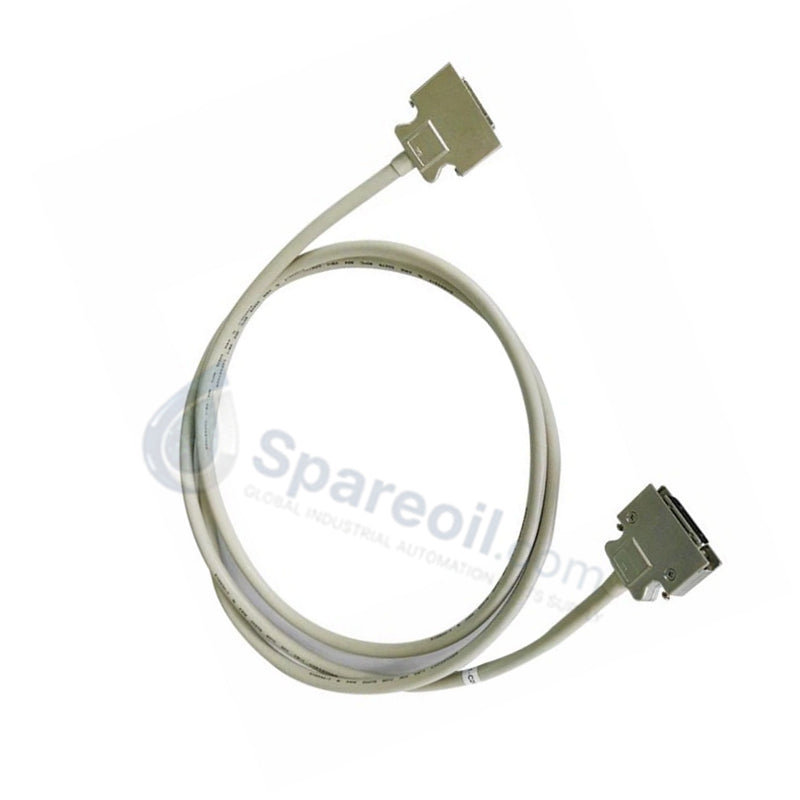

YCB301-C500 Yokogawa ESB Bus Communication Cable

Availability: 10 left in stock

Yokogawa YCB301-C500 ESB Bus Communication Cable The Yokogawa YCB301-C500, also cataloged as the YCB301 ESB Bus Communication Cable, operates as...

SKU: YCB301-C500

Manufacturer: Yokogawa
Product No.: YCB301-C500
Product Type: Communication Cables
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa YCB301-C500 ESB Bus Communication Cable

The Yokogawa YCB301-C500, also cataloged as the YCB301 ESB Bus Communication Cable, operates as a dedicated hardware component for high-integrity serial data transmission within Yokogawa CENTUM VP control platforms.

Hardware Specifications

Parameter	Specification
Model	YCB301-C500
Brand	Yokogawa
Origin	Japan
Weight	0.10 kg
Dimensions	500 m length
Operating Temp	-20 to +70 deg C
Power Consumption	Passive physical media
Network Protocol	ESB Bus (Extended System Bus)
Conductor Material	High-purity copper
Shielding	Overall EMI/RFI braid shield
Connection Method	Solderless lugs with M4 screws / ESB bus connectors
Bending Radius	Minimum 100 mm

Process Control & Signal Conditioning Profiles

The YCB301-C500 cable maintains continuous physical layer connectivity between central processor units and remote expansion I/O node units over Extended System Bus networks. High-density braided shield construction mitigates electro-magnetic noise coupling, preventing network packet loss across extended cable runs. Galvanic isolation across connected bus interfaces prevents stray ground loop currents from propagating between remote node racks. Furthermore, balanced copper conductors provide low signal attenuation, ensuring precise transit of digital telemetry and 4-20 mA HART loop protocol data streams pass through connected I/O units without signal degradation.

Frequently Asked Questions

Q: Can installation personnel route the YCB301-C500 cable through outdoor conduit paths?

A: Yes, the rugged jacket construction supports both indoor and outdoor conduit routing provided ambient temperatures remain between -20 and +70 deg C.

Q: How does proper shield termination affect communication reliability across the ESB bus?

A: Grounding the overall cable shield braid to the master functional earth bar at designated termination points redirects coupled high-frequency electrical noise to ground, keeping the differential data lines clean.

Q: Does bending the cable sharper than the specified 100 mm minimum bend radius cause permanent transmission errors?

A: Bending the assembly tighter than the 100 mm threshold alters conductor spacing and internal foil geometry, creating characteristic impedance mismatches that reflect data pulses and cause signal degradation.

Field Installation Guidelines

Route the ESB bus cable through dedicated, grounded metallic conduits, maintaining a minimum physical separation of 300 mm from three-phase AC power lines.
Secure cable ends into terminal junction points using M4 screw terminals tightened to the vendor-specified torque limit.
Verify that the total length of the cable run does not exceed the maximum allowable physical distance specified for the target ESB bus topology.
Attach the overall shield drain wire directly to the master grounding bus bar using a low-impedance grounding clamp.
Support vertical cable runs with stress-relief clamps every 1.5 meters to prevent physical tension on upper termination points.
