AFV10D-S41201 Yokogawa Control Unit

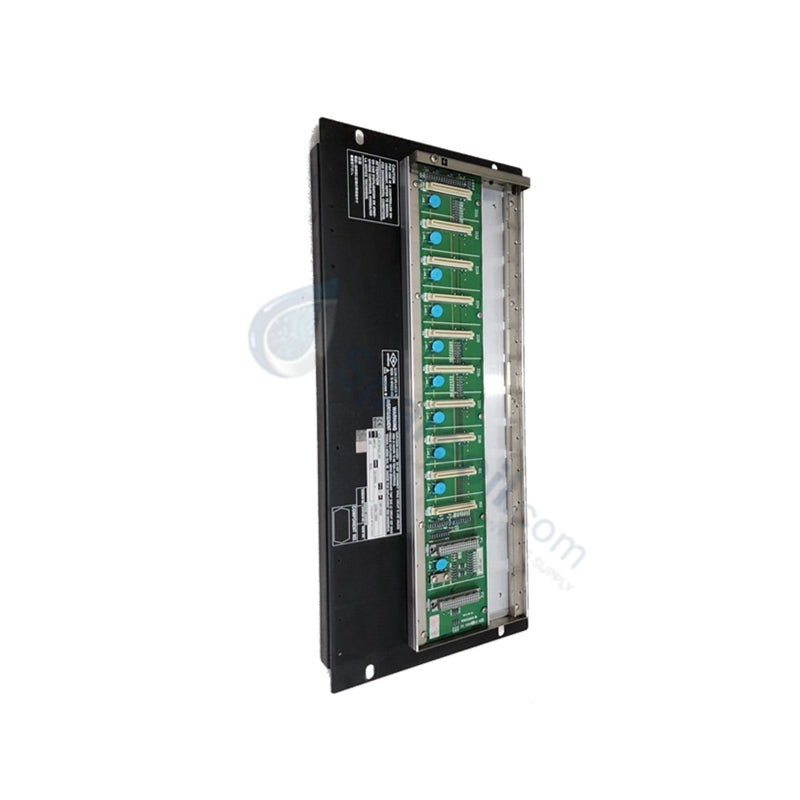

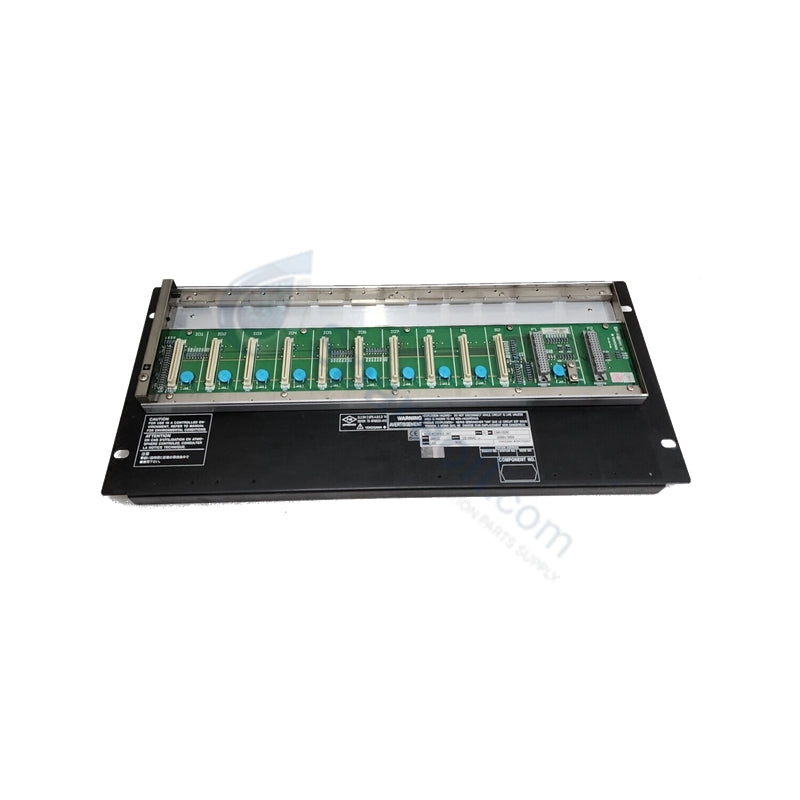

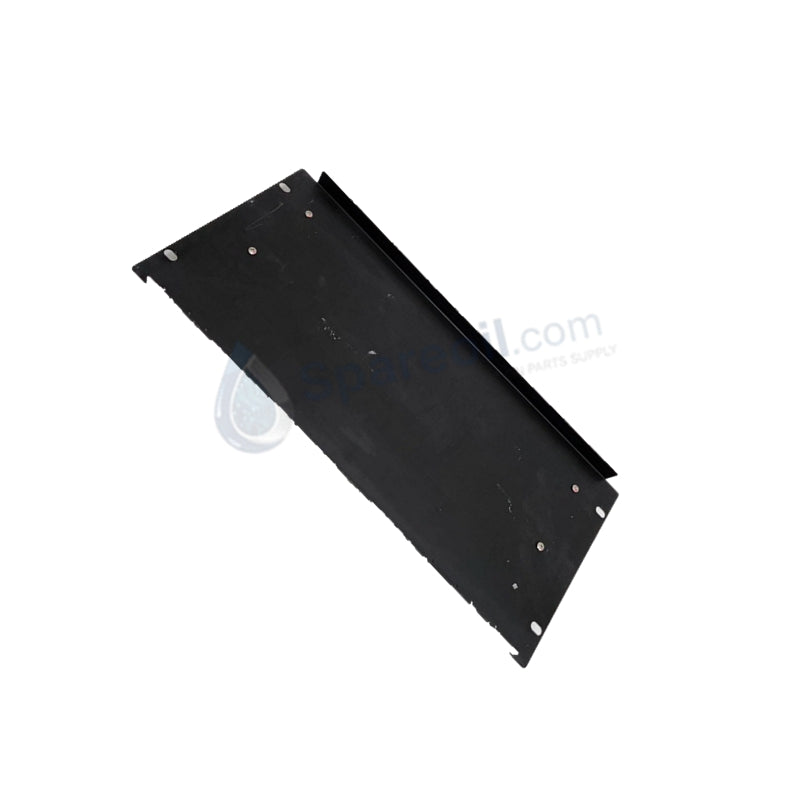

Yokogawa AFV10D-S41201 CENTUM VP Duplexed Field Control Unit

Yokogawa AFV10D-S41201 CENTUM VP Duplexed Field Control Unit

Availability: 10 left in stock

Yokogawa AFV10D-S41201 Duplexed Field Control Unit The Yokogawa AFV10D-S41201, also cataloged as the AFV10D Field Control Unit, operates as a...

SKU: AFV10D-S41201

Manufacturer: Yokogawa
Product No.: AFV10D-S41201
Product Type: Field Control Units
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 6000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AFV10D-S41201 Duplexed Field Control Unit

The Yokogawa AFV10D-S41201, also cataloged as the AFV10D Field Control Unit, operates as a dedicated hardware component for deterministic regulatory and sequence control execution within CENTUM VP control station platforms.

Suffix Breakdown & Model Matrix

The AFV10D-S41201 utilizes specific suffix codes to define redundancy architecture, power input requirements, and control functions.

Model Suffix	Specification Details
AFV10D-S	Standard Field Control Unit type
4	Dual-Redundant Vnet/IP, Dual-Redundant power supply
1	Reserved / Always 1
2	220-240 VAC power supply input
0	Basic type
1	LFS1500 Control Function for Field Control Station

Hardware Specifications

Parameter	Specification
Model	AFV10D-S41201
Brand	Yokogawa
Origin	Japan
Weight	6.0 kg to 8.0 kg (Configuration dependent)
Dimensions	350 x 260 x 180 mm
Operating Temp	0 deg C to +55 deg C
Power Consumption	200 VA
Interface	Vnet/IP and FIO node support

Process Control & Network Connectivity

This controller manages plant-wide processes through deterministic scan cycles, handling regulatory PID loops and sequence logic. It utilizes an ESB bus interface to maintain real-time data communication with connected FIO node units. The architecture supports redundant Vnet/IP network interfaces, ensuring sustained connectivity to the control system operator stations. To maintain signal integrity in diverse industrial environments, the module implements channel-to-channel isolation on I/O communication pathways and utilizes cold junction compensation (CJC) for temperature-sensitive analog inputs. Redundant power supply modules provide continuous voltage regulation, preventing process interruption during power fluctuation or module failure.

Frequently Asked Questions (FAQ)

Q: Does the AFV10D-S41201 support online hardware replacement?

A: Yes, the unit is designed for online maintenance. Redundant CPU and power supply modules can be hot-swapped while the system remains powered, provided the secondary module is in a standby state and fully synchronized.

Q: Are there specific limitations regarding the Vnet/IP network connection?

A: The Vnet/IP interface must be connected using shielded Cat6 cabling routed through dedicated signal trays. Ensure that the total bus segment length remains within the specified limits to prevent communication packet jitter.

Field Installation Guidelines

Mounting: Fix the A2BE1D or A2BE2D baseplate to the cabinet frame using M5 bolts. Ensure the baseplate is perfectly level to prevent mechanical stress on the backplane connectors.
Grounding: Connect the cabinet ground stud to the site protective earth (PE) bus using a low-impedance copper braided strap to ensure electromagnetic compatibility and surge protection.
Wiring: Maintain a minimum clearance of 150 mm between ESB bus cables and high-power AC lines to minimize induced electromagnetic interference.
Verification: After power-up, monitor the front-panel status LEDs. A steady green indicator for both the CPU and power modules confirms that the self-diagnostics have passed and the unit is fully operational.
