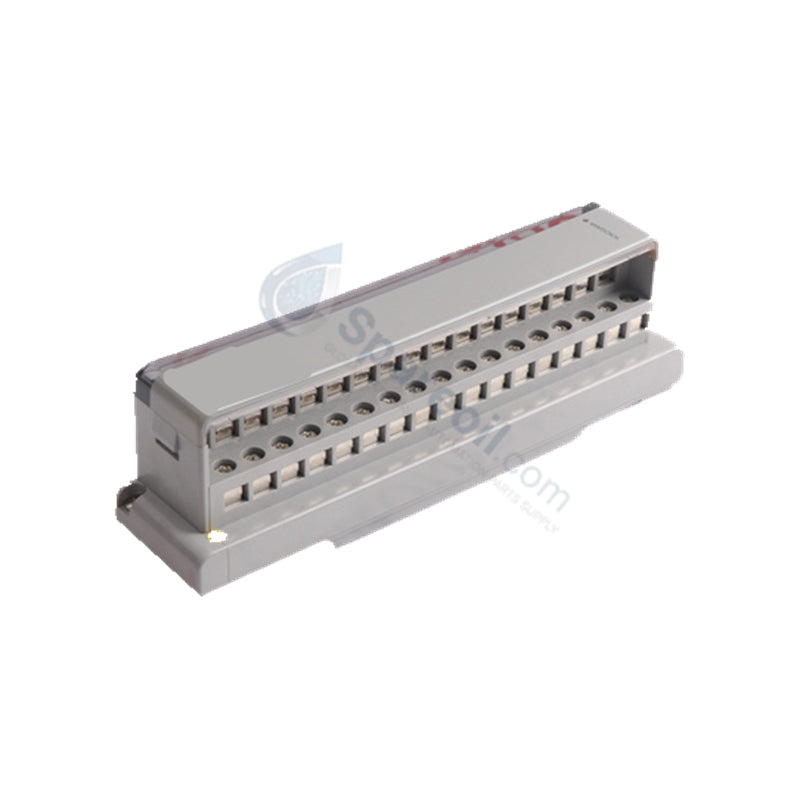

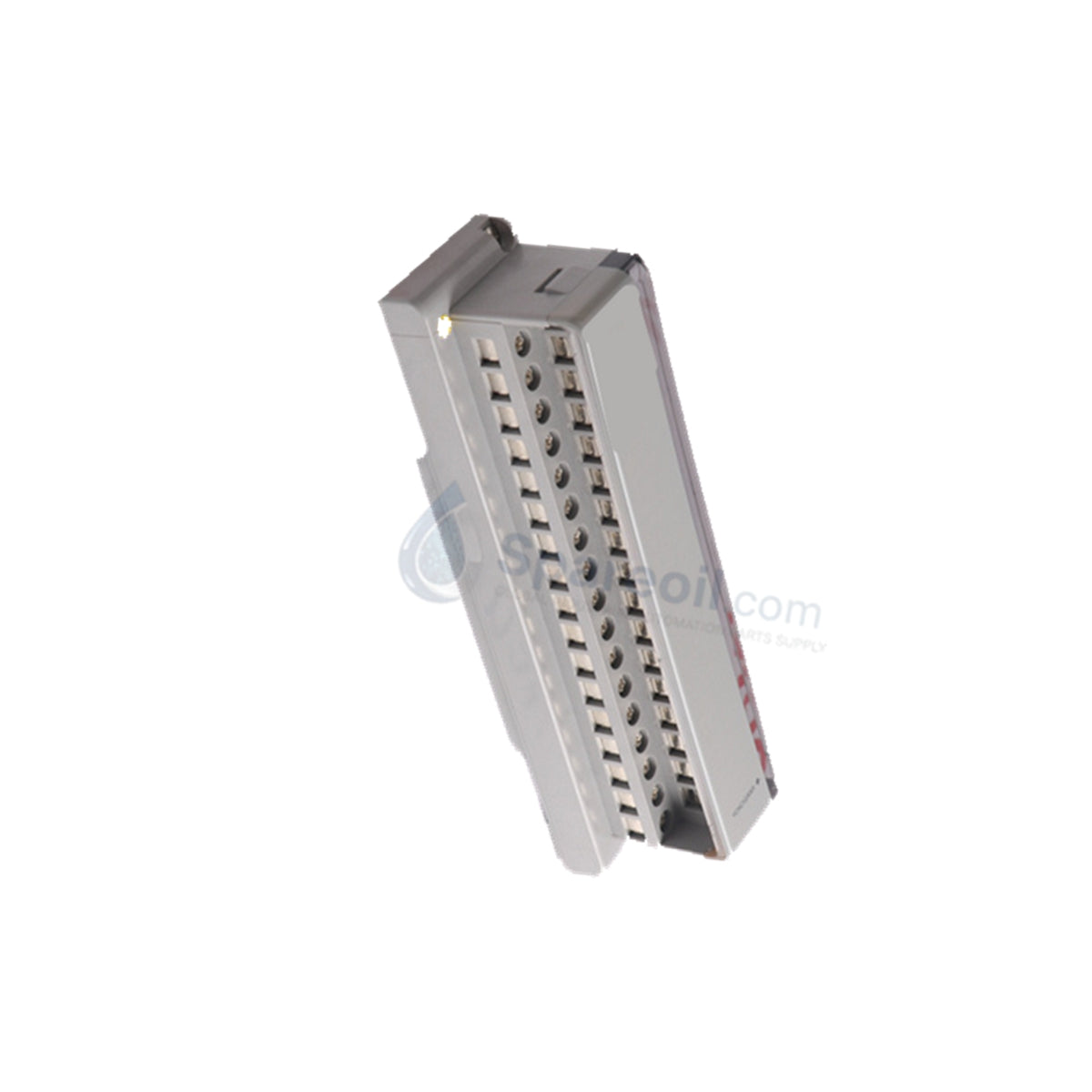

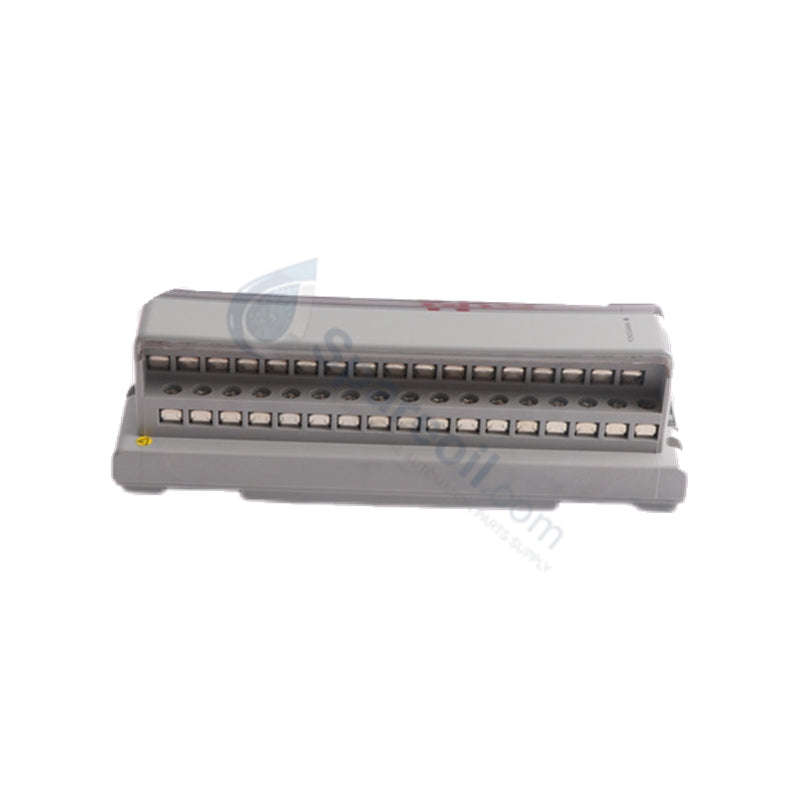

Yokogawa AMT16M S1 Voltage Input Multiplexer Module

The Yokogawa AMT16M S1, also cataloged as the AMT16M Voltage Input Multiplexer Module, operates as a dedicated hardware component for multi-channel DC voltage signal consolidation within Yokogawa CENTUM and STARDOM DCS platforms.

Hardware Specifications

Parameter Specification
Model AMT16M S1
Brand Yokogawa
Origin Japan
Weight 0.5 kg
Dimensions 81 mm x 103 mm x 146 mm
Operating Temp -20 deg C to 70 deg C
Power Consumption Max 20 mA at 12–24 V DC
Input Channels 16 voltage channels
Input Range 0–5 V DC, 0–10 V DC
Measurement Accuracy +/-0.01% FS +/-1 digit
Sampling Rate Up to 1000 Hz
Communication Ports RS-485 (Modbus RTU)
Connection Type BNC connectors
Protection Rating IP20

4-20 mA Loop Integration and Channel Isolation

The AMT16M S1 integrates high-density channel-to-channel isolation networks designed to prevent common-mode voltage spikes and ground loop interferences across field instrumentation circuits. By multiplexing up to 16 voltage feedback signals over an RS-485 serial backbone into host Yokogawa DCS controllers, the unit preserves signal conversion linearity without requiring separate transmitter barriers. Internal circuitry employs integrated cold junction compensation (CJC) processing algorithms when interfacing with temperature-converted DC voltage loops, maintaining analog accuracy during ambient rack temperature fluctuations.

Frequently Asked Questions

Q: What grounding precautions must be observed during the signal shield wiring process?

A: Terminate all incoming BNC coaxial and shielded signal line drain wires to a single-point protective earth ground at the cabinet interface panel. Floating shields or multiple grounding points generate ground loops that distort 0–10 V DC analog readings across adjacent multiplexed channels.

Q: How does the unit maintain data throughput when all 16 input channels operate at the maximum 1000 Hz sampling rate?

A: The onboard micro-controller buffers analog-to-digital conversions locally before packetizing data over the RS-485 bus using Modbus RTU protocol. Ensure the serial baud rate and bus master polling cycle match the channel scan speed to prevent buffer overrun errors.

Field Installation Guidelines

Mount the module on a standard 35 mm DIN rail inside an IP54 or higher rated industrial enclosure to protect the IP20 terminal assembly from environmental airborne dust and moisture. Maintain a minimum vertical clearance of 50 mm above and below the module housing to enable unrestricted passive thermal dissipation.

Route high-voltage power lines and motor drive cables in separate wire trays away from the low-voltage analog signal cables. Secure all BNC connectors to their respective channel ports, ensuring lock tabs are fully engaged before applying 12–24 V DC loop power to the main supply terminals.
