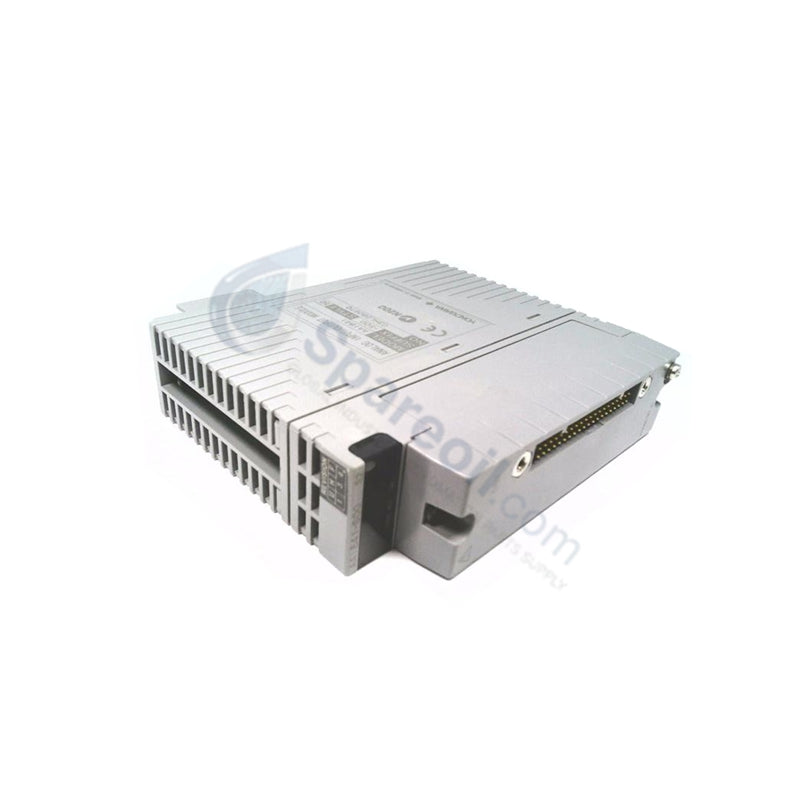

Yokogawa EC401-50 ESB Bus Coupler Module
Configured for high-speed deterministic bus extension in ProSafe-RS safety instrumentation platforms, the Yokogawa EC401-50 (EC401 ESB Bus Coupler Module) provides direct physical/electrical execution. The module interfaces safety node units across redundant ESB bus lines to execute real-time inter-module communications and safety logic execution.
Suffix Breakdown & Model Matrix
- EC401: Base model ESB bus coupler module designed for safety control station node units.
- -5: Standard module type configured without explosion protection requirements.
- 0: Basic functionality configuration.
- S3: Hardware revision code indicating functional compliance with SIL3 architecture standards.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | EC401-50 S3 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 3.0 kg (Shipping Weight) |
| Dimensions | Standard FIO / Safety Node module size (19-inch rack node compatible) |
| Operating Temp | 0 to 55 deg C |
| Storage Temp | -20 to 70 deg C |
| Operating Humidity | 10 to 90% RH (non-condensing) |
| Power Supply | 24 VDC nominal (internal node bus powered) |
| Power Consumption | Node bus allocation limit |
| Communication Interface | ESB Bus (Safety Bus interface) |
| System Platform | ProSafe-RS Safety Instrumented System (SIS) |
| Safety Integrity Level | SIL3 (IEC 61508 compliant) |
| Redundancy Support | Dual ESB Bus line redundancy |
| Mounting Type | Safety Control Station Node rack slot |
| Certifications | CE, IECEx, ATEX, SIL3 safety compliance |
SIL3 Certification & Fail-Safe State Execution
The EC401-50 S3 complies with IEC 61508 SIL3 safety integrity requirements to maintain deterministic communication across the ESB bus architecture. Internal hardware circuits incorporate continuous self-diagnostics and cyclic redundancy checks (CRC) to monitor data packet transmission between the safety CPU and remote I/O modules. Upon detecting parity errors, hardware cable disconnects, or communication timeouts, the bus coupler forces the affected safety channels into a predefined fail-safe state execution without interrupting non-faulted parallel safety loops. Dual ESB bus line switching operates seamlessly to prevent false trips during single-path transmission faults.
Frequently Asked Questions
Q: Does the EC401-50 module support dual-redundant ESB bus line configurations?
A: Yes, two EC401-50 modules installed in dedicated bus coupler slots of a safety control station node provide fully redundant ESB bus communication channels, ensuring continuous SIL3 execution even if one bus cable suffers a physical rupture or signal degradation.
Q: Can an EC401-50 bus coupler module be hot-swapped during active ProSafe-RS control operations?
A: Technicians can hot-swap a faulted EC401-50 module in a redundant ESB bus configuration while the safety node remains powered and online. The parallel redundant bus module maintains active data execution. Replacing a module in a non-redundant single-bus system will break communication to downstream I/O units, triggering fail-safe shutdown states on those channels.
Field Installation Guidelines
Mount the EC401-50 S3 firmly into its designated node rack slot, tightening the top and bottom securing screws to establish a solid ground bond with the chassis frame. Route ESB bus interface cables through dedicated cable trays, maintaining strict separation from high-voltage AC lines and variable frequency drive wiring to eliminate electromagnetic noise coupling. Ensure the maximum permitted ESB bus cable lengths are not exceeded and that standard bus termination resistors are properly seated at both physical ends of the bus topology. Always verify cabinet convection airflow to ensure operating temperatures remain between 0 and 55 deg C.
