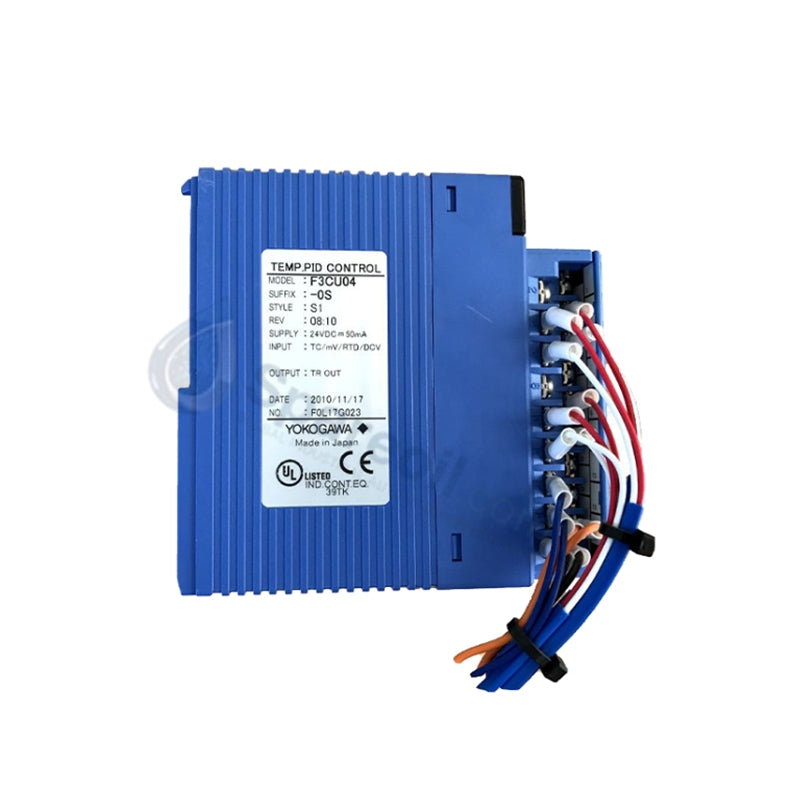

Yokogawa F3CU04-0S/Z01 FA-M3 4-Loop PID Module

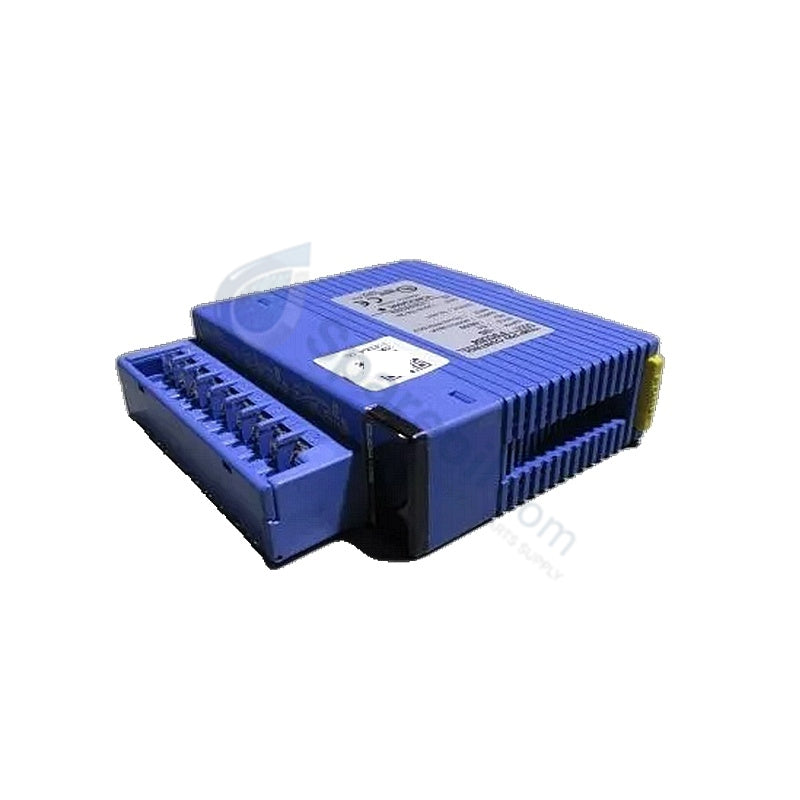

Yokogawa F3CU04-0S/Z01 FA-M3 4-Loop PID Module

Availability: 20 left in stock

Yokogawa F3CU04-0S/Z01 FA-M3 Temperature Control and PID Module Configured for 4-loop temperature regulation and independent loop processing in FA-M3 platforms,...

SKU: F3CU04-0S/Z01 S1

Manufacturer: Yokogawa
Product No.: F3CU04-0S/Z01 S1
Product Type: Temperature Control Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa F3CU04-0S/Z01 FA-M3 Temperature Control and PID Module

Configured for 4-loop temperature regulation and independent loop processing in FA-M3 platforms, the Yokogawa F3CU04-0S/Z01 S1, also cataloged as the F3CU04-0S/Z01 Temperature Control and PID Module, provides direct physical/electrical execution. The hardware offloads complex PID computations from the main CPU, executing high-speed input conversion with 0.1 percent full-scale accuracy across universal analog field inputs.

Hardware Specifications

Parameter	Specification
Model	F3CU04-0S/Z01 S1
Brand	Yokogawa
Origin	JAPAN
Weight	0.20 kg (Shipping Weight: 2.0 kg)
Dimensions	28.9 mm x 100 mm x 106.1 mm
Operating Temp	0 deg C to +55 deg C
Power Consumption	460 mA at 5 VDC (Backplane), 24 VDC external (max 200 mA)
Control Loops	4 independent PID loops
Sampling Period	200 ms for 4 loops, 100 ms for 2 loops
Input Accuracy	±0.1 percent of full scale
Input Types	Thermocouple (15 types), RTD (9 types), DC voltage/current
Isolation	Photocoupler and transformer isolation (1500 VAC for 1 min)
Field Connection	18-point terminal block with M3.5 screws

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The F3CU04-0S/Z01 features channel-to-channel isolation and galvanic transformer barriers rated for 1500 VAC to isolate process sensor loops from system backplane logic. The module processes universal thermocouple, RTD, and 4-20 mA HART loop protocol analog inputs, applying dynamic auto-tuning and fuzzy logic overshoot suppression. Integrated CJC (cold junction compensation) circuits adjust for thermal gradients at the terminal block to maintain primary measurement precision.

Frequently Asked Questions

Q: What is the primary backplane current draw for the F3CU04-0S/Z01 PID module?

A: The module draws 460 mA from the internal 5 VDC FA-M3 backplane bus, with external loop field power requiring up to 200 mA at 24 VDC.

Q: Can the 18-point terminal block be removed without disconnecting individual loop wires?

A: Yes, the M3.5 screw terminal block is detachable, allowing rapid module swap-outs while preserving existing field wiring terminations.

Field Installation Guidelines

Mount the F3CU04-0S/Z01 into an available slot on the FA-M3 base unit and lock the top connector latch firmly in place. Tighten the 18-point terminal block M3.5 screws to a torque spec of 0.8 N-m to prevent high-resistance connections under plant vibration conditions.

Route thermocouple, RTD, and analog signal wiring inside shielded twisted-pair cables separate from high-voltage AC lines. Ground the cable shield at a single cabinet earth point to prevent ground loops. Allow a warm-up period of at least 30 minutes after initial energization to achieve thermal equilibrium for accurate cold junction compensation.
