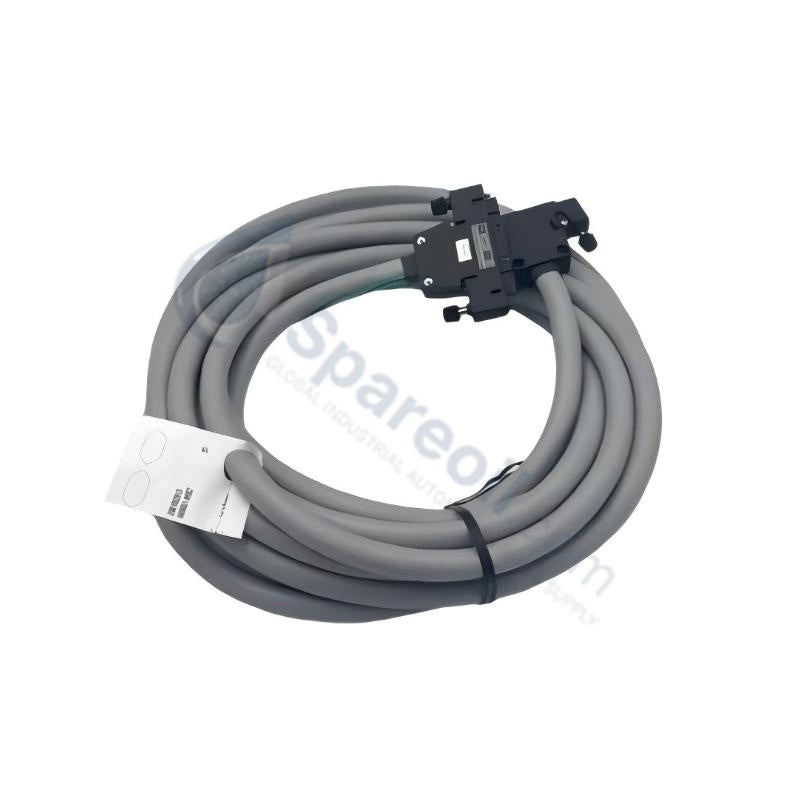

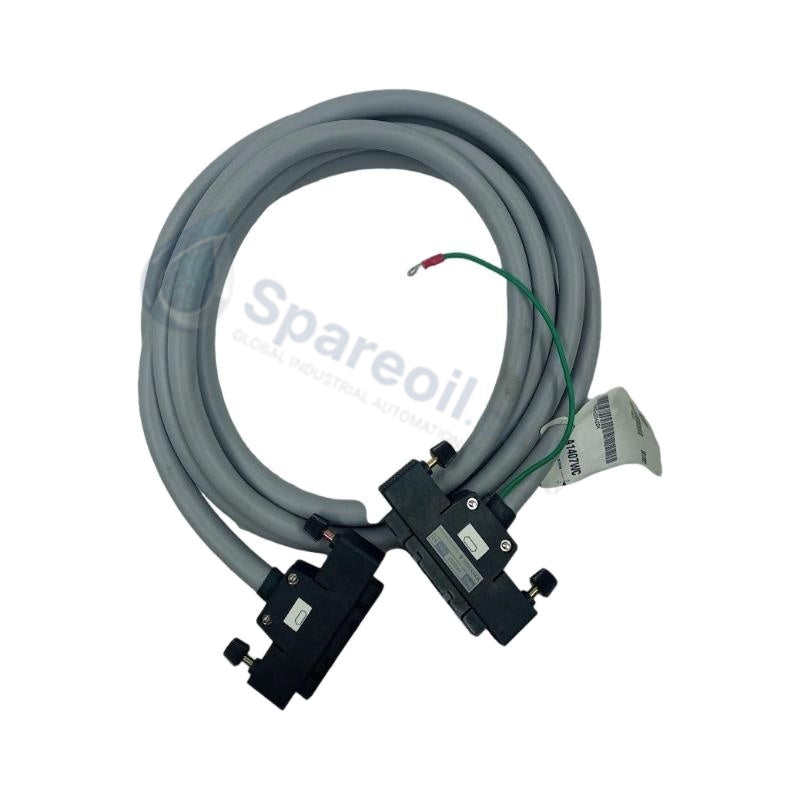

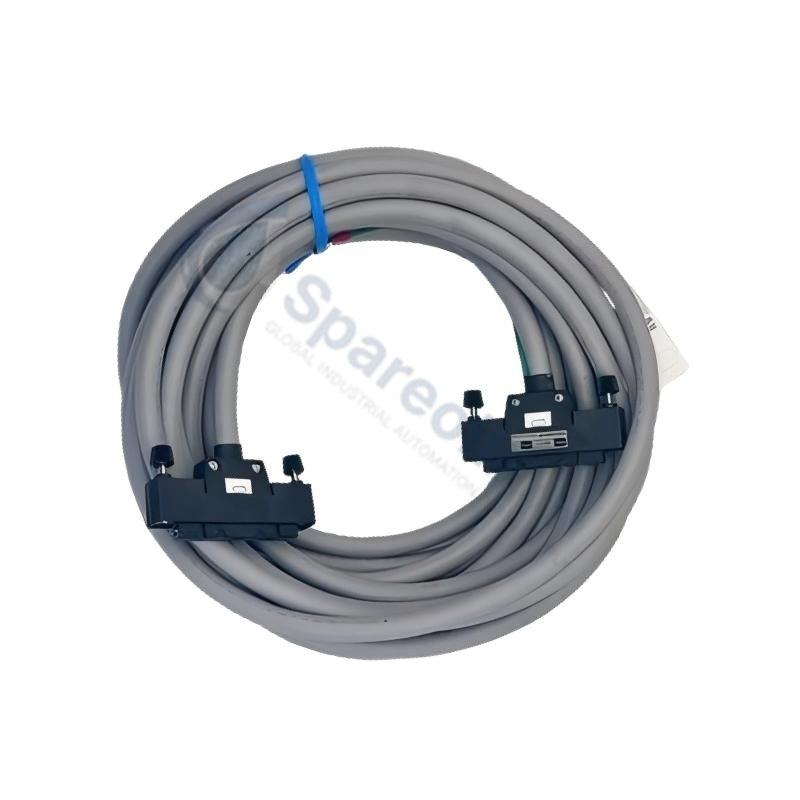

Yokogawa KS1-07 PLC Interface Cable

The Yokogawa KS1-07, also cataloged as the KS1 PLC Interface Cable, operates as a dedicated hardware component for multi-core signal interconnection and serial communication within Yokogawa FA-M3 control systems.

Hardware Specifications

Parameter Specification
Model KS1-07
Brand Yokogawa
Origin Japan
Weight 0.50 kg
Dimensions 0.7 m length
Operating Temp 0 to +55 deg C
Power Consumption Passive connection
Connector Type 1 40-pin multi-pole connector
Connector Type 2 40-pin multi-pole connector
Cable Type Shielded multi-conductor twisted-pair
Voltage Rating 30 VDC
Isolation Shield-to-conductor isolation, 500 VDC

Process Control & Signal Conditioning Profiles

The KS1-07 cable interconnects high-density FA-M3 digital input/output modules, such as the F3WD64 series, directly to external terminal blocks or interface racks. Multi-core twisted-pair conductors minimize inductive signal crosstalk across high-density 24 VDC control loops. Integrated overall braided shielding protects low-voltage discrete telemetry against severe industrial electromagnetic interference. Furthermore, low internal line resistance prevents voltage drops across multi-channel signal routes, ensuring stable 4-20 mA HART loop protocol transit and discrete ON/OFF threshold detection across connected terminal points.

Frequently Asked Questions

Q: Can installation personnel hot-swap the KS1-07 cable connection while field loops remain energized?

A: Field cables can be disconnected during operation provided the target I/O module channels are temporarily inhibited in the controller logic to prevent false input trips or output glitches.

Q: How does the cable construction prevent signal degradation in noisy cabinet environments?

A: The cable incorporates an internal braided copper shield connected to grounded connector shells to bypass radio frequency and electromagnetic noise directly to chassis ground.

Q: What is the maximum recommended bending radius for routing the KS1-07 assembly in control panels?

A: Technicians must maintain a minimum bend radius of at least 60 mm inside wire ducts to prevent mechanical stress on internal copper conductors and connector strain reliefs.

Field Installation Guidelines

  • Align the 40-pin connector shell with the module receptacle keyway and press firmly until side retaining latches lock into position.
  • Secure the cable shield drain braid directly to the cabinet functional earth bus bar using a dedicated grounding clamp.
  • Segregate the low-voltage KS1-07 cable harness from three-phase AC power lines by maintaining a minimum separation distance of 100 mm in cabinet wire raceways.
  • Avoid applying mechanical tension or tight zip-tie cinching along the cable jacket to prevent internal conductor damage.
  • Inspect connector pins prior to mating to ensure contacts are free from dust, debris, or mechanical deformation.
