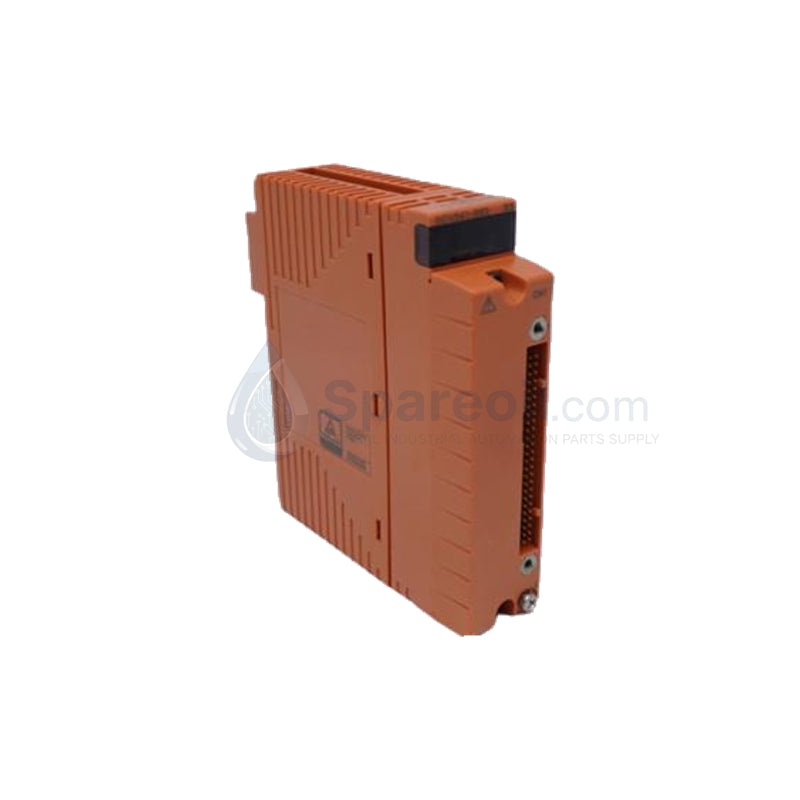

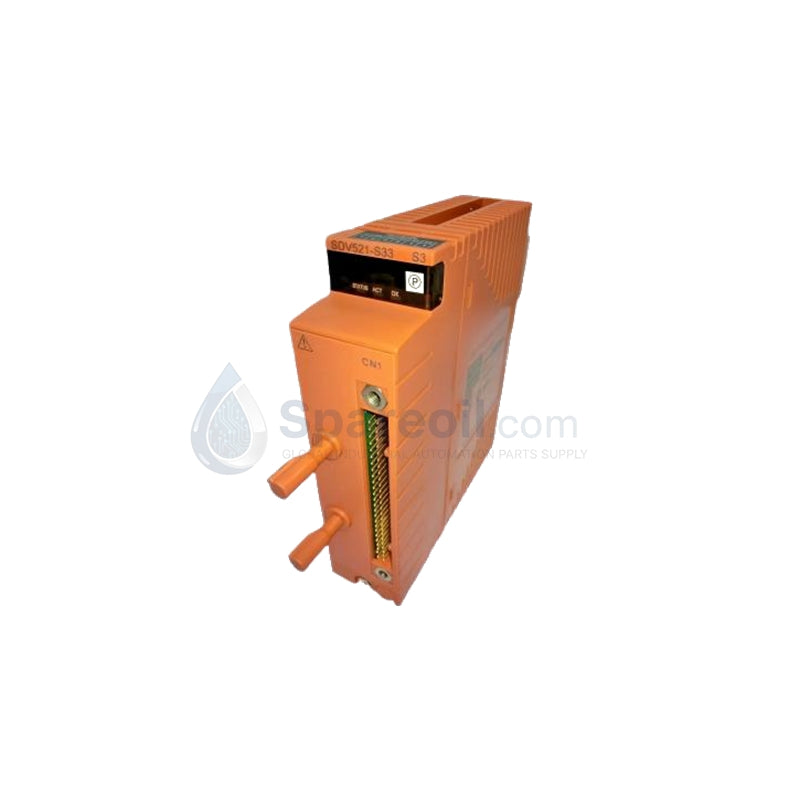

Yokogawa SDV521-S33/PRP-S3 Digital Output Module
The Yokogawa SDV521-S33/PRP-S3, also cataloged as the SDV521 Digital Output Module, operates as a dedicated hardware component for driving safety actuators and relays within ProSafe-RS SIS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV521-S33/PRP-S3 |
| Brand | Yokogawa |
| Origin | Singapore |
| Weight | 0.35 kg (Net), 0.5 kg (Shipping) |
| Dimensions | Standard rack-mounted I/O module enclosure |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | 24 VDC 8.2 A (total system/load input rating), ~0.8 A @ 5 VDC backplane |
| Number of Channels | 16 digital output channels |
| Output Signal Type | 24 VDC nominal voltage/current drive for solenoids and relays |
| Channel Output Current | Up to 0.5 A per channel |
| Galvanic Isolation | 1500 V RMS channel-to-backplane |
| Safety Integrity Level | SIL2 / SIL3 certified (IEC 61508) |
Process Control and DCS Connectivity
The SDV521-S33/PRP-S3 module converts digital control commands from the safety controller into isolated 24 VDC driving signals for field actuators, alarm relays, and shutdown solenoids. Each channel incorporates galvanic channel-to-backplane optical isolation rated at 1500 V RMS to eliminate ground loops and protect internal processing logic from high-voltage field spikes. Integrated diagnostic circuitry continuously monitors field loops for short-circuit faults and open-load conditions, ensuring deterministic real-time fail-safe state execution across critical process loops using 4-20 mA HART loop protocol instruments and discrete safety interlocks.
Frequently Asked Questions
Q: What action does the SDV521-S33/PRP-S3 module perform upon detecting an open-load or short-circuit condition?
A: The module identifies line open-wire and short-circuit faults via continuous loop diagnostic checks, triggering channel diagnostic indicators and reporting fault flags to the ProSafe-RS controller while driving outputs to a predefined fail-safe de-energized state.
Q: How does the module maintain channel protection under short-circuit conditions?
A: Each output channel integrates internal current-limiting and short-circuit protection circuits that clamp excessive current flow, preventing physical backplane damage during field wiring faults.
Field Installation Guidelines
Mount the SDV521-S33/PRP-S3 module into its designated slot in the ProSafe-RS I/O node unit until the locking lever clicks tightly into position. Tighten top and bottom retaining screws to ensure proper grounding to the rack chassis. Connect field actuator wiring using twisted-pair shielded cables attached to the front terminal block, ensuring individual drain wires terminate directly at the cabinet earth grounding rail. Maintain at least 50 mm of vertical clearance above and below the module enclosure to allow natural thermal convection across the -20 to +60 deg C ambient operating range.
