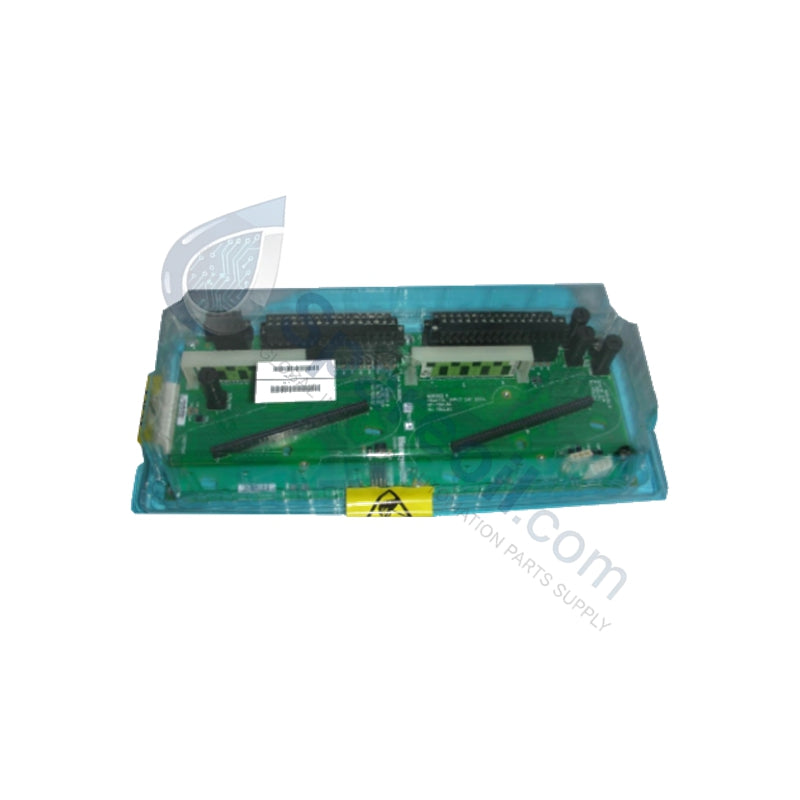

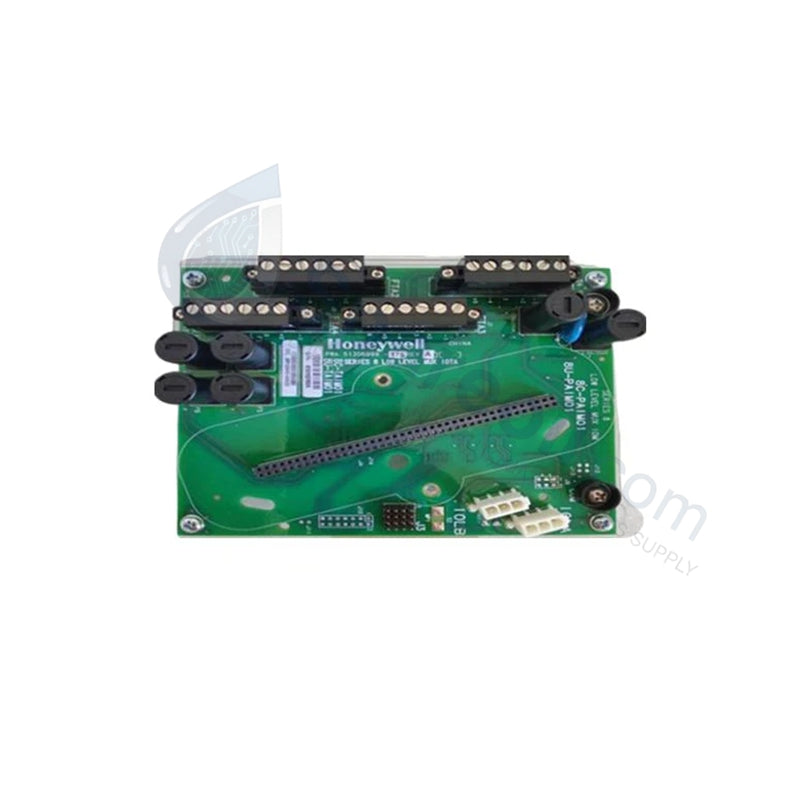

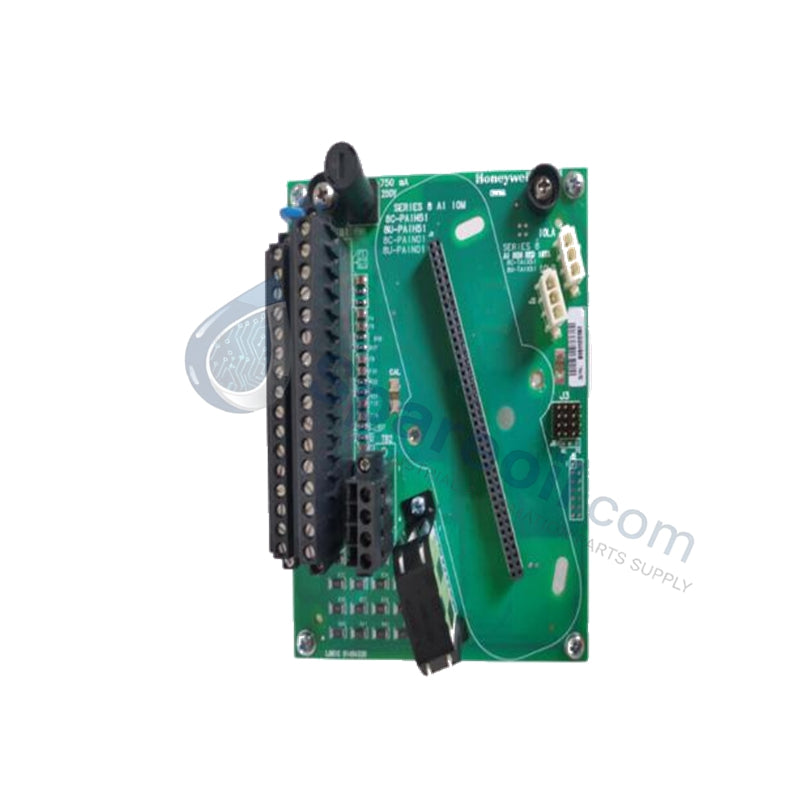

Honeywell 8C-TAIM01 Experion PKS C300 Input Assembly

Availability: 99 left in stock

Product Overview The Honeywell 8C-TAIMA1 (Internal Part Number: 51307171-175, also referenced as 8C-TAIM01) serves as the essential field wiring interface for the Experion PKS...

SKU: 8C(8U)-TAIM01

Manufacturer: Honeywell
Product No.: 8C(8U)-TAIM01
Product Type: Low Level Analog Input
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 8C-TAIMA1 (Internal Part Number: 51307171-175, also referenced as 8C-TAIM01) serves as the essential field wiring interface for the Experion PKS C300 Series 8 automation platform. This Analog Input Termination Assembly (IOTA) facilitates the direct connection of field instruments—including temperature transmitters, pressure sensors, and flow meters—to the DCS environment. Specifically optimized for low-level analog signals, it ensures high-fidelity data transmission from the field to the controller. We supply this unit as 100% Brand New and Original, providing the robust hardware foundation required for safety-critical process industries.

Technical Specifications

Feature	Specification Details
Model Number	8C-TAIMA1 / 8C-TAIM01
Part Number	51307171-175 / CC-TAIM01
Channels	8 Analog Input Channels
Signal Compatibility	4–20 mA, 0–10 V, Thermocouple, RTD
Accuracy	±0.1% of Full Scale
Isolation	Channel-to-channel and Bus isolation
Diagnostics	Open circuit and short circuit detection
Operating Temp	-40°C to +70°C (-40°F to +158°F)
Mounting	Standard Series 8 Rack / DIN Rail
Pairing Module	Required: 8C-PAIMA1 Analog Input Module
Country of Origin	USA

Engineering Advantages

Precision Data Acquisition: The assembly maintains a ±0.1% full-scale accuracy, which eliminates signal noise during the conversion of raw field data. This precision allows the C300 controller to execute complex PID loops with minimal process deviation.
High-Performance Noise Rejection: Advanced galvanic isolation shields the system bus from field-side interference. This protection proves critical in environments with heavy motor loads or high-frequency switching that typically disrupt low-level analog signals.
Seamless Hot-Swap Maintenance: The IOTA supports online replacement. Technicians can replace the paired electronic module without disconnecting field wiring or shutting down the entire rack, significantly reducing Mean Time to Repair (MTTR).
Environmental Hardening: Designed for the factory floor, the 8C-TAIMA1 operates across an extreme temperature range of -40°C to +70°C. This eliminates the need for expensive climate-controlled enclosures in many remote field stations.
Integrated Fault Diagnostics: The hardware supports real-time monitoring for signal faults. The system identifies open circuits and short circuits immediately, allowing operators to distinguish between a failed field sensor and a controller error.

FAQs

Is the 8C-TAIMA1 compatible with the CC-TAIM01?

Yes. The CC-TAIM01 is the part number typically associated with the un-coated or specific regional versions of the same Series 8 IOTA. Both refer to the 8-channel Analog Input Termination Assembly.
Does this IOTA require a specific electronic module?

Yes. To function, you must pair the 8C-TAIMA1 with the 8C-PAIMA1 Analog Input Module. The IOTA handles the physical wiring while the PAIMA module handles the signal processing.
Can I use this for both Thermocouples and 4-20mA signals?

The IOTA provides the physical connection points for both. However, the signal type configuration depends on the settings within the Experion PKS software and the capabilities of the paired electronic module.
What is the guarantee of originality?

We ship the Honeywell 8C-TAIMA1 in its original factory-sealed packaging. Every unit includes a 12-month warranty and full traceability to ensure it meets Honeywell's E-E-A-T industrial standards.
