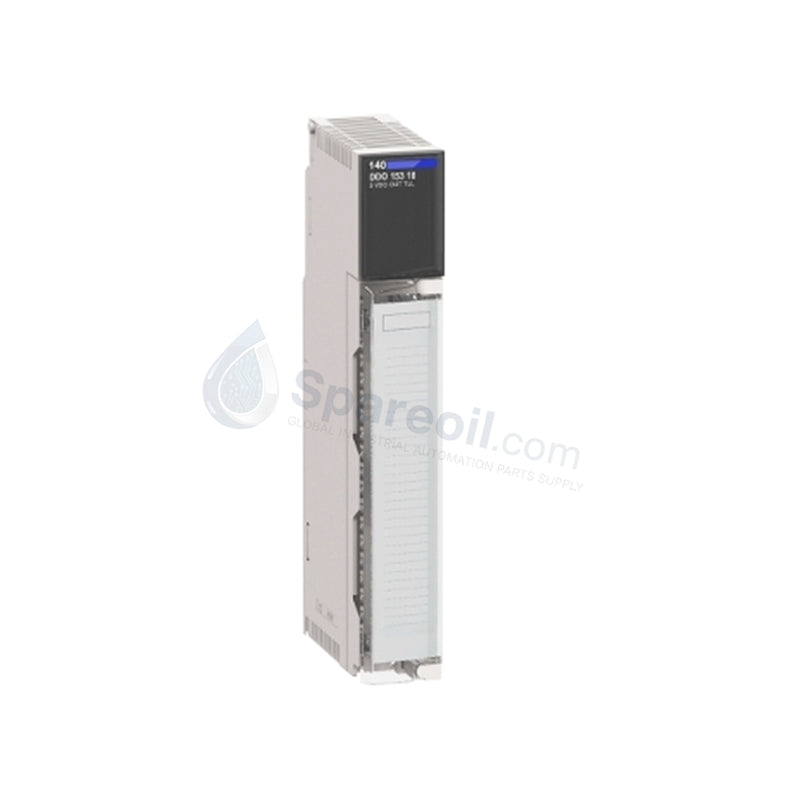

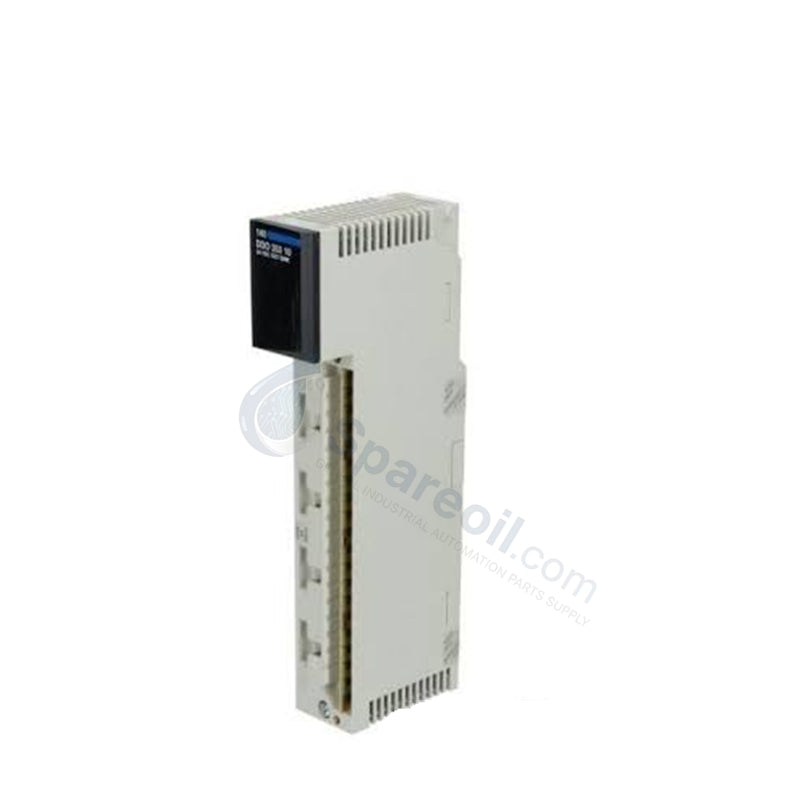

Schneider Electric 140DDO35310 Modicon Quantum DC Discrete Output Module

Configured for high-density digital output control in Modicon Quantum automation platform networks, the Schneider Electric 140DDO35310 (140DDO35310 DC Discrete Output Module) provides direct physical/electrical execution. The module commands 32 solid-state discrete channels structured into 4 isolated groups of 8 channels each, operating under negative logic (sink) configurations. This hardware component translates internal backplane logic states into external 24 VDC switching actions, requiring 2 output words of register addressing from the master controller.

Hardware Specifications

Parameter	Specification
Model	140DDO35310
Brand	Schneider Electric
Origin	France
Weight	0.45 kg (0.99 lb)
Dimensions	4.5 x 31.2 x 16.3 cm
Operating Temp	0 to 60 deg C
Power Consumption	330 mA bus current requirement
Discrete Output Voltage	24 VDC nominal (19.2 to 30 VDC limits)
Maximum Load Current	0.5 A per channel (4 A per group, 16 A total per module)
Isolation Voltage	1780 Vrms DC channel-to-bus for 1 minute; 500 Vrms DC group-to-group
Response Time	<= 1 ms (state 0 to 1 and state 1 to 0)
Maximum Leakage Current	0.4 mA at 30 VDC
Power Dissipation	2.0 W + (0.4 V x total load current)
Diagnostic Indicators	1 Active LED (green), 1 Fault LED (red), 32 Status LEDs (green)

Backplane Bus Communication Velocity and Protection Matrix

The hardware integrates directly with the standard Quantum rack to maintain stable backplane bus communication velocity under varying load configurations. Internal protection circuits feature an integrated 5 A fuse per channel group to handle short circuits and protect the internal solid-state components. The module detects physical faults, lighting the red external fault LED (F) when it identifies a loss of field power or a blown fuse condition. This diagnostic data transfers to the processor within the standard backplane scan cycle.

Frequently Asked Questions

Q: What happens to the output channels if field power drops below the minimum operating threshold?

A: When external field power falls outside the 19.2 to 30 VDC range, the hardware senses a loss of field power condition, triggers the front red Fault LED, and reports the error state to the controller while forcing the affected output group into a de-energized state.

Q: Does this module support hot-swap replacement within an active Quantum rack?

A: Yes, the Quantum platform mechanical design permits the module to be removed and inserted under power. However, the field wiring connector block must be detached first to isolate field currents and prevent transient voltage damage to the backplane interface.

Field Installation Guidelines

Insert the module into the designated slot of the standard Quantum backplane and press firmly until the rear ground clips and bus connectors seat securely.
Verify that each external group is protected by an external 3 A fuse per point or 5 A fuse per group to prevent overcurrent damage from high inductive fields.
Route the 24 VDC field output wiring separate from low-voltage analog signal cables and high-voltage AC mains inside the wire ducts to prevent inductive coupling and signal corruption.
