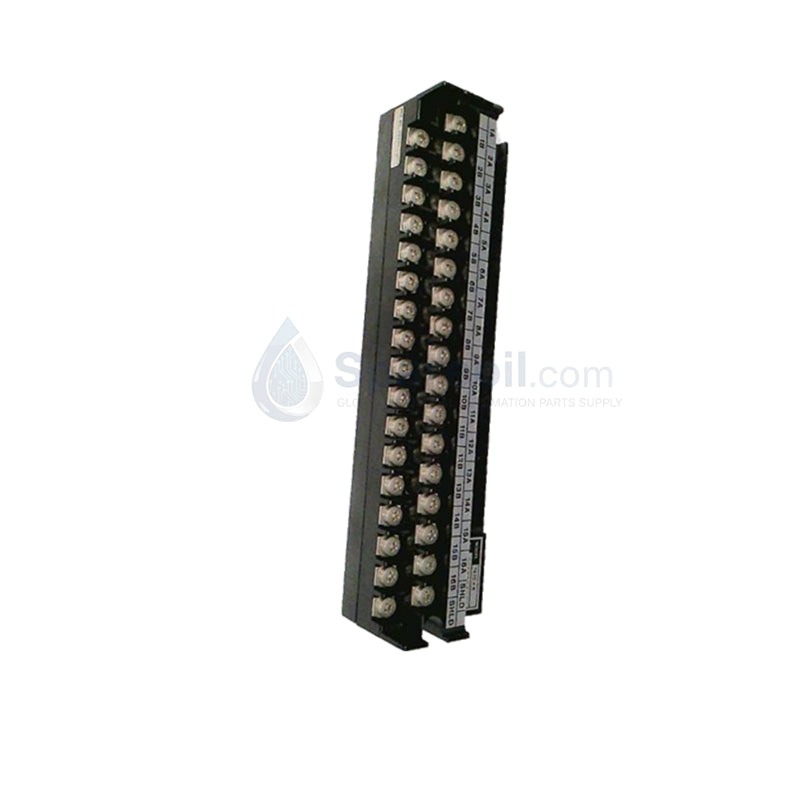

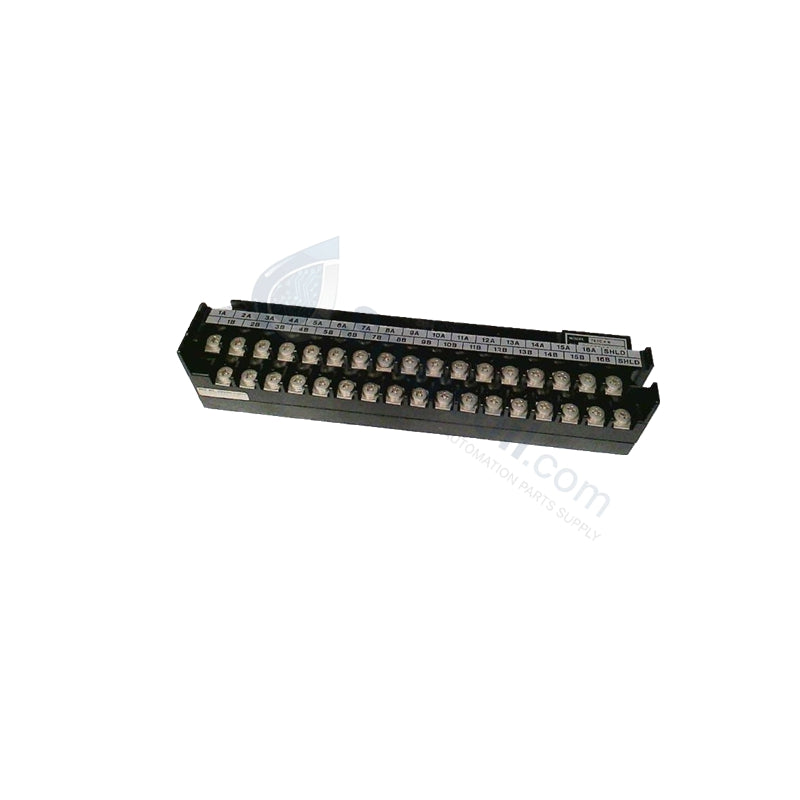

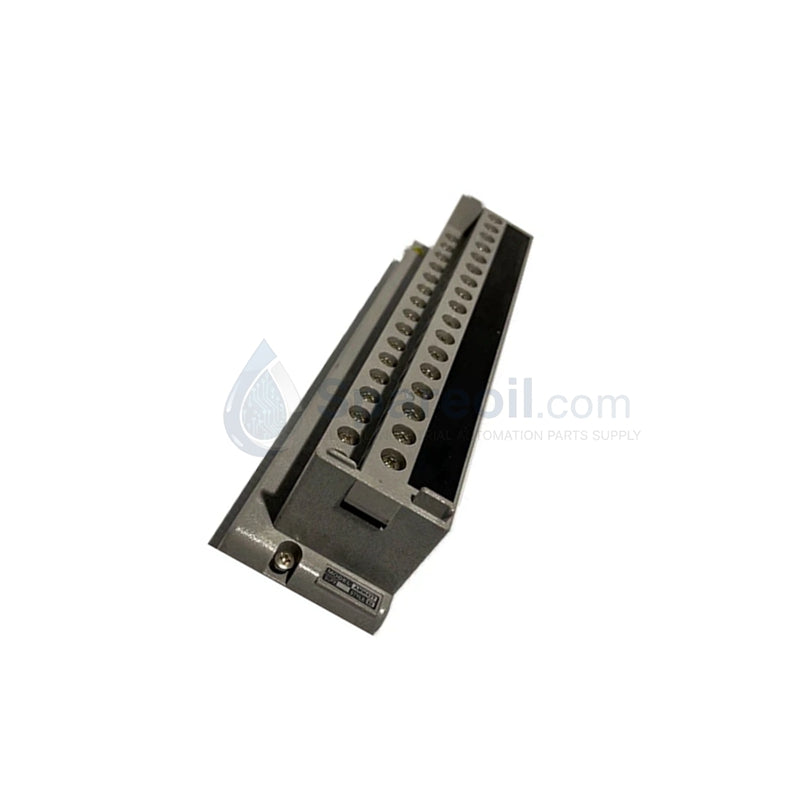

Yokogawa TE32 CENTUM VP Series Terminal Block Module

The Yokogawa TE32, also cataloged as the TE32 Terminal Block Module, serves as the primary TE32 Terminal Block Module utilized to execute physical connection paths between field instruments and I/O cards across CENTUM VP and ProSafe-RS platforms.

Hardware Specifications

Parameter Specification
Model TE32
Brand Yokogawa
Origin Japan
Weight 0.36 kg (0.80 lbs)
Dimensions 114 mm x 32.6 mm x 60.5 mm
Operating Temp -20 to +70 deg C (Extended range)
Power Consumption Passive hardware routing bus (No active internal circuit consumption)
Number of Points 32 Channels
Terminal Type Vibration-resistant screw terminals
Rated Voltage 250 V AC/DC
Rated Current 10 A
Insulation Resistance 100 M Ohm minimum at 500 V DC
Dielectric Strength 2000 V AC for 1 minute
Storage Temperature -20 to +70 deg C
Housing Material Industrial-grade thermoplastic
Certification Compliance IEC, CE, UL certified

Process Control & DCS Instrumentation Properties

The terminal hardware establishes high-density physical marshaling pathways, routing field sensor arrays through 32 discrete channels directly to corresponding input/output processor nodes. To maintain data path accuracy over a 4-20 mA HART loop protocol layer, the architectural traces emphasize structural channel-to-channel isolation. The robust terminal arrangement incorporates internal physical isolation geometries capable of sustaining a 2000 V AC dielectric test barrier for 1 minute, effectively shielding multi-channel node systems from high-voltage transient spikes and preventing common-mode ground loop degradation from interfering with the central DCS bus architecture.

Frequently Asked Questions

Q: What are the physical current limitations when routing continuous high-load loops through the TE32?

A: Each individual channel across the 32-point block accommodates a maximum rated continuous current of 10 A at voltage levels up to 250 V AC/DC, making it compatible with high-draw solenoids or low-power instrument loops.

Q: How does this module perform when exposed to sustained industrial vibration inside a marshaling cabinet?

A: The device utilizes heavy-duty thermoplastic housing paired with specialized mechanical screw terminals that provide sustained clamping pressure. This architecture maintains electrical contact integrity and counters standard frequency vibrations encountered next to heavy industrial machinery.

Q: Does this passive component require a localized ground link to verify its dielectric strength?

A: Yes, field engineers must anchor the integrated structural ground clip of the module to the carrier panel or DIN rail to optimize the 2000 V AC dielectric barrier protection and facilitate the dissipation of transient electrostatic noise.

Field Installation Guidelines

  • Conductor Strip Length and Torque Parameters: Strip the outer insulation of the field wiring back according to terminal block dimensional depth limits. Insert the bare wire fully into the screw clamp and torque the terminal screw down tightly to eliminate high-resistance points while avoiding wire shear.
  • Shield Terminal and Separation Routing: Keep low-voltage 4-20 mA loop cables physically separated from high-voltage motor control lines inside the cabinet wire ducts. Terminate the overall drain shields directly at the cabinet master earth bus bar to preserve optimal signal isolation.
  • DIN Rail Mounting Rigidity: Snap the thermoplastic base firmly onto a standard 35 mm DIN rail structure. Secure the outer edges of the assembled terminal line with rigid mechanical end clamps to prevent lateral sliding or separation during intense field-side vibration sequences.
