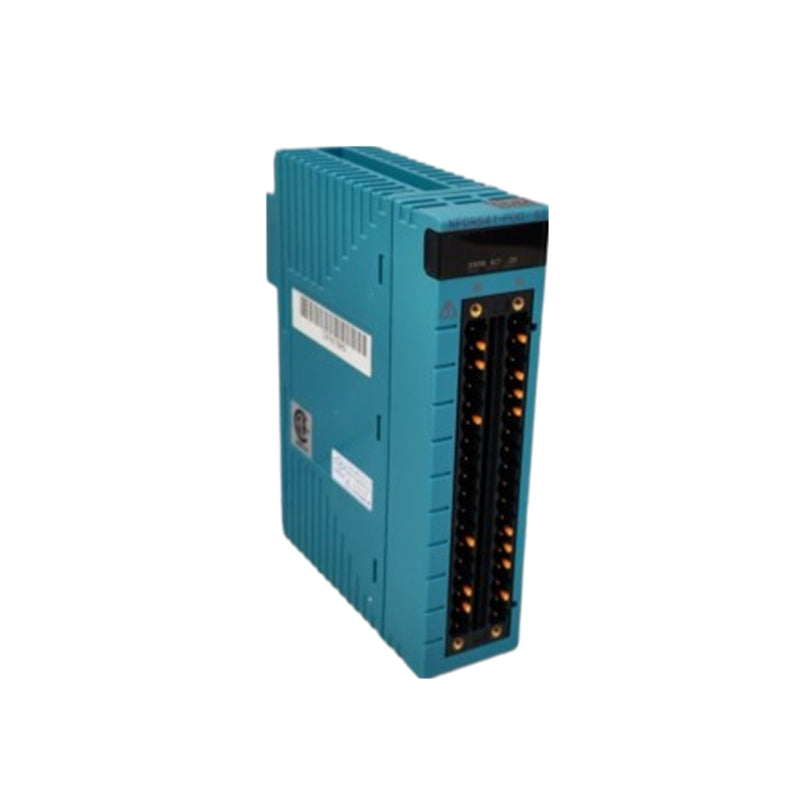

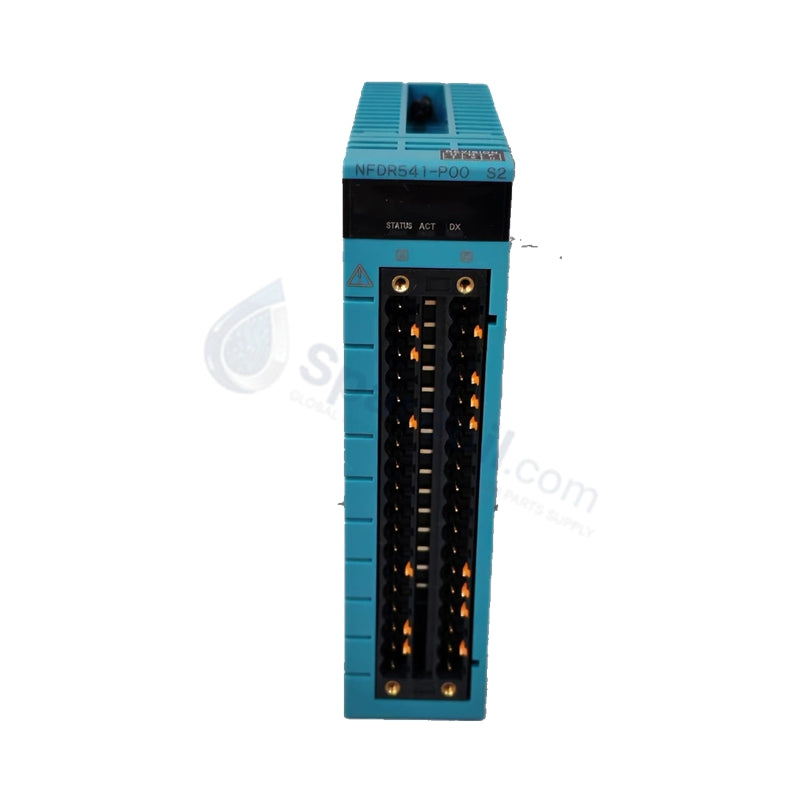

YOKOGAWA NFDR541-P00 Digital Output Module

The YOKOGAWA NFDR541-P00, also cataloged as the NFDR541 Digital Output Module, operates as a dedicated hardware component for deterministic relay contact switching within CENTUM VP and CS 3000 distributed control systems.

Hardware Specifications

Parameter Specification
Model NFDR541-P00
Brand YOKOGAWA
Origin Japan
Weight 0.36 kg to 0.41 kg
Dimensions 130 x 107.5 x 32.8 mm
Operating Temp -20 deg C to +70 deg C
Power Consumption 290 mA (5 VDC backplane), 140 mA (24 VDC)
Number of Outputs 16 isolated relay contact channels
Rated Current 0.5 A per channel
Isolation 2 kVAC (output to system bus)

Process Control and DCS Instrumentation Integrity

The YOKOGAWA NFDR541-P00 utilizes robust channel-to-channel isolation architecture to prevent fault propagation across critical output loops. In the context of DCS integration, the module facilitates precise control signal execution for actuators, solenoids, and safety relays. The internal circuitry provides continuous diagnostic self-monitoring, which communicates real-time status data to the host controller to ensure signal integrity during state transitions. This module maintains strict galvanic separation to mitigate common-mode noise interference typical in high-density industrial control environments.

Frequently Asked Questions (FAQ)

Q: Does the NFDR541-P00 support hot-swapping during active system operation?

A: The module supports hot replacement capabilities when installed within compatible baseplates in a redundant rack configuration, minimizing process downtime during maintenance intervals.

Q: What are the electrical requirements for the output contacts?

A: The outputs are designed as no-voltage dry contacts. An external 24 VDC supply is mandatory for load actuation, with a maximum current rating of 0.5 A per individual channel.

Field Installation Guidelines

  • Mounting: Secure the module into the designated Compact FIO baseplate. Ensure the module is fully seated until the mechanical locking mechanism engages to prevent intermittent connection failures.

  • Wiring: Utilize shielded twisted-pair cabling for all signal connections to maintain the 2 kVAC isolation integrity. Ground cable shields at a single point to prevent ground loop formation.

  • Termination: Verify that the field wiring terminal configuration matches the hardware specifications for the P00 revision to avoid contact over-voltage or short-circuit conditions.

  • Safety: Prior to performing any installation or maintenance, verify that the associated system segment is placed in bypass mode to prevent inadvertent actuation of connected safety relays or solenoids.
