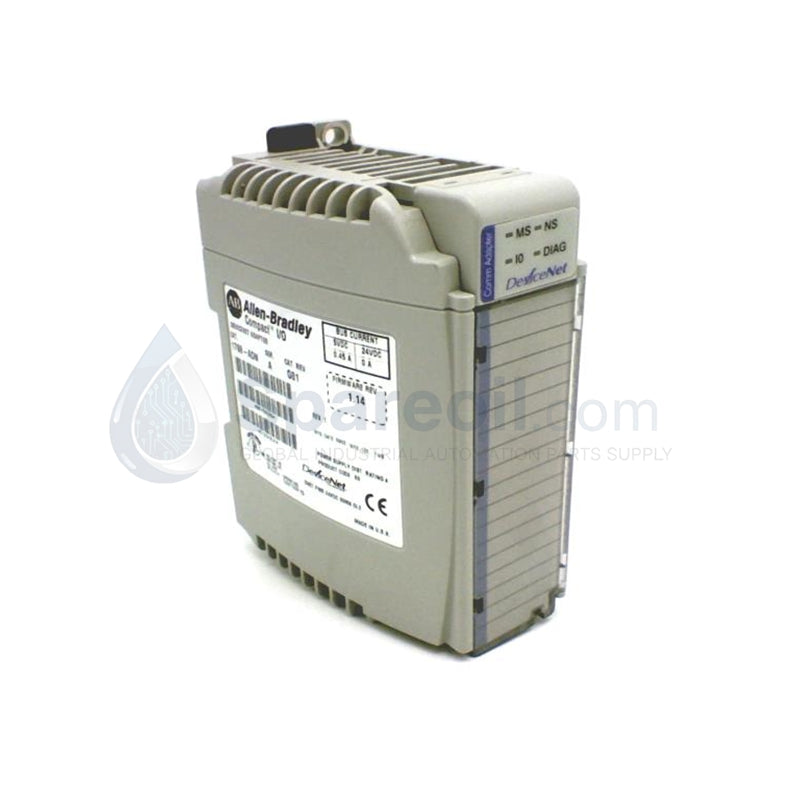

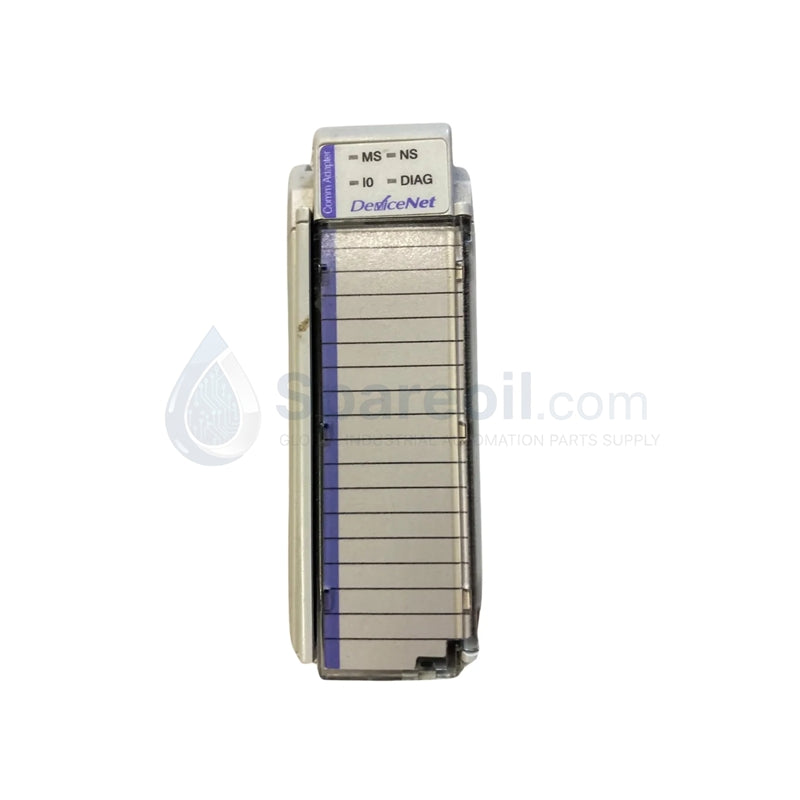

1769-ADN Allen-Bradley DeviceNet Communication Adapter Module

Availability: 99 left in stock

Allen-Bradley 1769-ADN DeviceNet Communication Adapter The Allen-Bradley 1769-ADN, also cataloged as the 1769-ADN DeviceNet Communication Adapter, operates as a dedicated...

SKU: 1769-ADN

Manufacturer: Allen Bradley
Product No.: 1769-ADN
Product Type: Communication Adapters
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Allen-Bradley 1769-ADN DeviceNet Communication Adapter

The Allen-Bradley 1769-ADN, also cataloged as the 1769-ADN DeviceNet Communication Adapter, operates as a dedicated hardware component for interfacing 1769 Compact I/O modules with distributed master controllers within DeviceNet network platforms. The module executes data packet translations using the Common Industrial Protocol (CIP) to function as a slave station on the bus, allowing remote I/O processing without a localized CPU assembly.

Suffix Breakdown & Model Matrix

1769-ADN Series A: Initial hardware revision featuring an internal backplane current draw of 450 mA at 5.1 VDC.
1769-ADN Series B: Updated hardware revision optimizing internal component architectures, featuring an increased backplane current draw of 500 mA at 5.1 VDC.

Hardware Specifications

Parameter	Specification
Model	1769-ADN
Brand	Allen-Bradley / Rockwell Automation
Origin	USA
Weight	0.28 kg (0.61 lb)
Dimensions	118 x 50 x 87 mm (H x W x D)
Operating Temp	0 to 60 deg C
Power Consumption	Dependent on Series backplane current draw
Protocol	DeviceNet (CIP)
Expansion Module Capacity	Up to 30 modules per I/O bank
Memory Mapping Capacity	180 words Input / 180 words Output max
DeviceNet Baud Rates	125 Kbps (500 m max), 250 Kbps (250 m max), 500 Kbps (100 m max)
Backplane Current (Series A)	450 mA @ 5.1 VDC
Backplane Current (Series B)	500 mA @ 5.1 VDC
DeviceNet Network Current Draw	90 mA @ 24 VDC
Isolation Voltage	30 V continuous, tested at 500 VDC for 60 s
Operating Humidity	5% to 95% non-condensing

Deterministic Network and Processing Characteristics

The hardware incorporates architecture optimized for real-time DeviceNet deterministic networks. The internal logic handles I/O density scaling up to a maximum threshold of 180 input words and 180 output words, regulating data transfers between the expansion modules and the main industrial network. Firmware flash compatibility via specialized system configuration software ensures matching communication parameters and data assembly structures across the local 1769 backplane link, minimizing protocol transmission latencies.

Frequently Asked Questions

Q: How does the network baud rate configuration affect the physical physical cable distance constraints of the system? A: The hardware supports three transmission rates that dictate the maximum trunk line length. Operating at 125 Kbps allows a maximum network distance of 500 m, 250 Kbps restricts the network to 250 m, and 500 Kbps limits the physical distance to 100 m.

Q: Can the adapter power the attached local 1769 expansion modules directly through the DeviceNet network connection? A: No, the 90 mA at 24 VDC drawn from the DeviceNet network powers only the adapter's internal communication transceiver. A separate 1769 power supply must be installed on the local backplane bank to supply the required 5.1 VDC or 24 VDC operating current to the attached expansion I/O modules.

Q: Is online module substitution or hot-swapping supported on the expansion bank attached to this adapter? A: No. The local backplane architecture does not support Removal and Insertion Under Power (RIUP). Main supply voltage and network power must be completely isolated before adding, removing, or swapping any I/O module within the bank to avoid configuration corruption or hardware component damage.

Field Installation Guidelines

Mount the communication adapter horizontally onto a standard DIN-rail assembly or securely using direct panel-mounting fasteners inside an approved industrial enclosure. Ensure a minimum layout clearance of 50 mm on all sides of the housing to prevent thermal building and keep the environment within the 0 to 60 deg C operational limits.

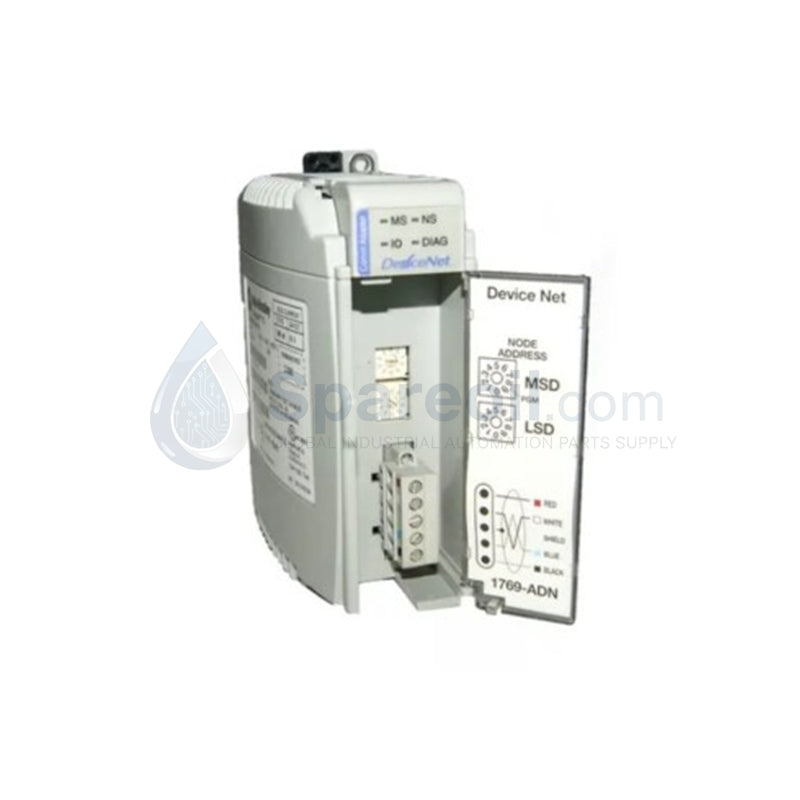

The DeviceNet open-style drop connector must be wired in strict compliance with the network color-coding standards (Red: V+, White: CAN_H, Shield: Bare, Blue: CAN_L, Black: V-). Install 121 Ohm, 0.25 W terminating resistors across the CAN_H and CAN_L lines at both physical ends of the trunk line. Ensure the network shield wire is tied to a single, high-integrity grounding source for the entire network segment to suppress signal crosstalk and common-mode electrical interference.
