9907-147 Woodward ProTech-203 Datasheet & Technical Manual

Availability: 99 left in stock

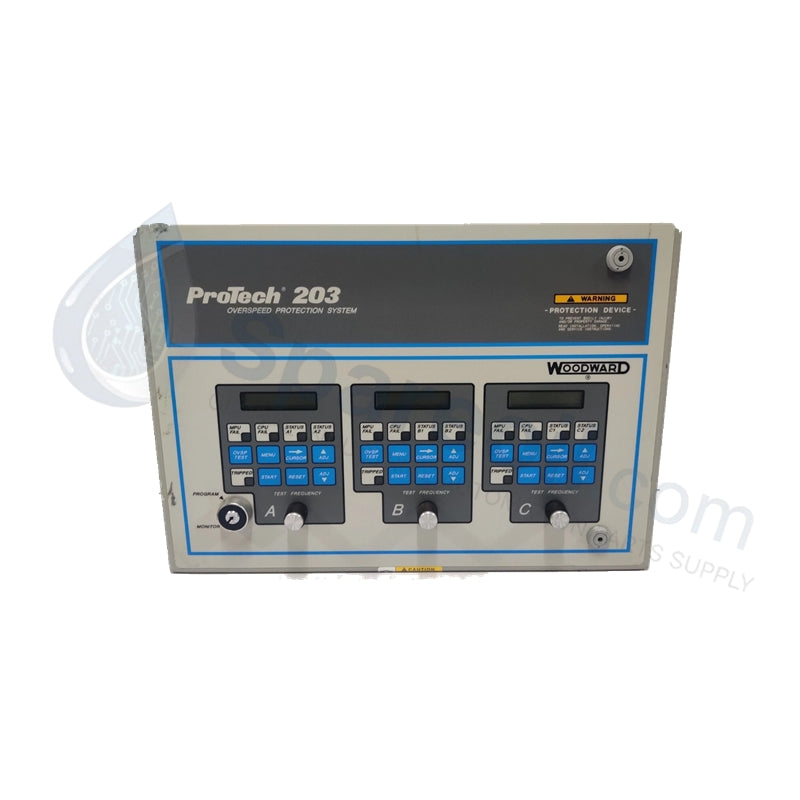

Woodward 9907-147 ProTech-203 Series The Woodward 9907-147, also cataloged as the 9907-147 Overspeed Protection System, operates as a dedicated hardware...

SKU: 9907-147

Manufacturer: Woodward
Product No.: 9907-147
Product Type: ProTech-203 Overspeed Protection System
Product Origin: USA
Payment:T/T, Western Union
Weight: 6500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

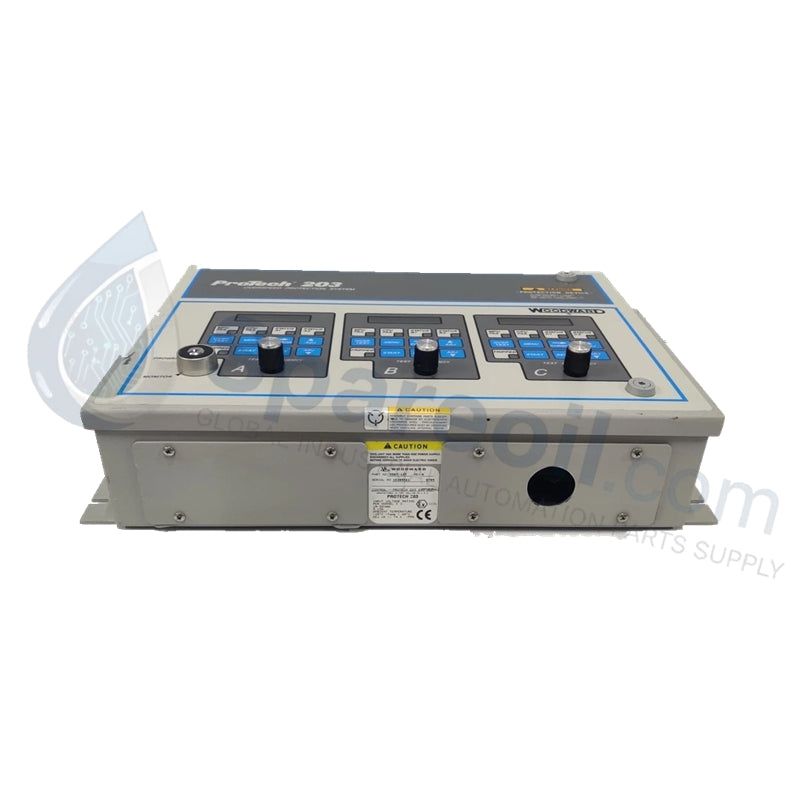

Woodward 9907-147 ProTech-203 Series

The Woodward 9907-147, also cataloged as the 9907-147 Overspeed Protection System, operates as a dedicated hardware component for high-integrity prime mover overspeed monitoring within ProTech-203 network platforms.

Hardware Specifications

Parameter	Specification
Model	9907-147
Brand	Woodward
Origin	United States
Weight	6.5 kg
Dimensions	482.6 mm x 310.4 mm x 142.7 mm
Operating Temp	-15 to +60 deg C
Power Consumption	24 VDC (18-32 VDC Operating Range)
System Redundancy	Triple Modular Redundant (TMR) / 2oo3 Voting Logic
Trip Configuration	De-Energize-to-Trip (DET) / Fail-Safe Logic
Speed Inputs	3 Independent Magnetic Pickups (MPU)
Trip Response Time	< 12 ms (Deterministic Hardware Trip)
Relay Outputs	Redundant Form-A / Form-C Safety Relays
User Interface	3 Independent LCD Screens with Tactile Keypads
Communication	Modbus RTU, CANbus, RS-232, RS-485
Enclosure	Lockable, vibration-resistant industrial metal housing

Industrial Drives & Governors Properties

The Woodward 9907-147 is engineered with dedicated thermal heat sink dissipation profiles integrated across its three independent processing cores to prevent thermal drift. This module maintains an ultra-low latency actuator loop feedback response, forcing relay contact transition within 12 ms of an verified overspeed excursion. The internal hardware architecture processes continuous input variables from three separate magnetic pickups over an independent 2-out-of-3 (2oo3) voting matrix, computing real-time rotor velocity trends without software-induced execution delays.

Frequently Asked Questions

Q: How does the De-Energize-to-Trip (DET) configuration behave during a total loss of input power?

A: The internal safety relays are continuously energized during standard safe turbine operation. In the event of a total 24 VDC power loss, field wire rupture, or internal hardware malfunction, the contacts immediately drop out to execute a fail-safe mechanical shutdown sequence.

Q: What is the configuration structure of the integrated user interface?

A: The hardware features three independent LCD screens paired with distinct tactile keypads. Each display link maps directly to one of the internal redundant CPU channels, enabling local monitoring, configuration verification, and diagnostic tracking per channel without interrupting the voting logic.

Q: What digital network interfaces are available for distributed supervisory control?

A: The system supports simultaneous remote data transmission via native Modbus RTU, CANbus, RS-232, and RS-485 interfaces. This multi-port communication topology facilitates the routing of trip logs, diagnostic alarms, and live pulse telemetry to external DCS or SCADA stations.

Field Installation Guidelines

Enclosure Assembly Mounting: Bolt the lockable, industrial metal housing securely onto a clean vertical frame inside the instrument enclosure. Ensure the mounting fasteners are torqued to resist localized machine vibrations and maintain stable structural integrity.
Magnetic Pickup Wiring Routing: Use separate twisted, double-shielded pairs for each of the three independent MPU inputs. Run these sensor lines through dedicated conduits away from heavy current AC supply lines or inductive breaker switching paths to isolate against electromagnetic noise.
Shield Grounding Matrix: Connect the cable shields to the local instrumentation ground bus bar at the panel side only. Do not ground both ends of the shield to prevent the formation of ground loops that could introduce signal distortion into the speed sensing paths.
Safety Relay Termination: Connect the Form-A or Form-C trip relay circuits using conductor gauges sized to handle the peak inductive load of the trip solenoid. Install transient voltage suppression components across external DC inductive loads to protect the physical contacts from degradation.
