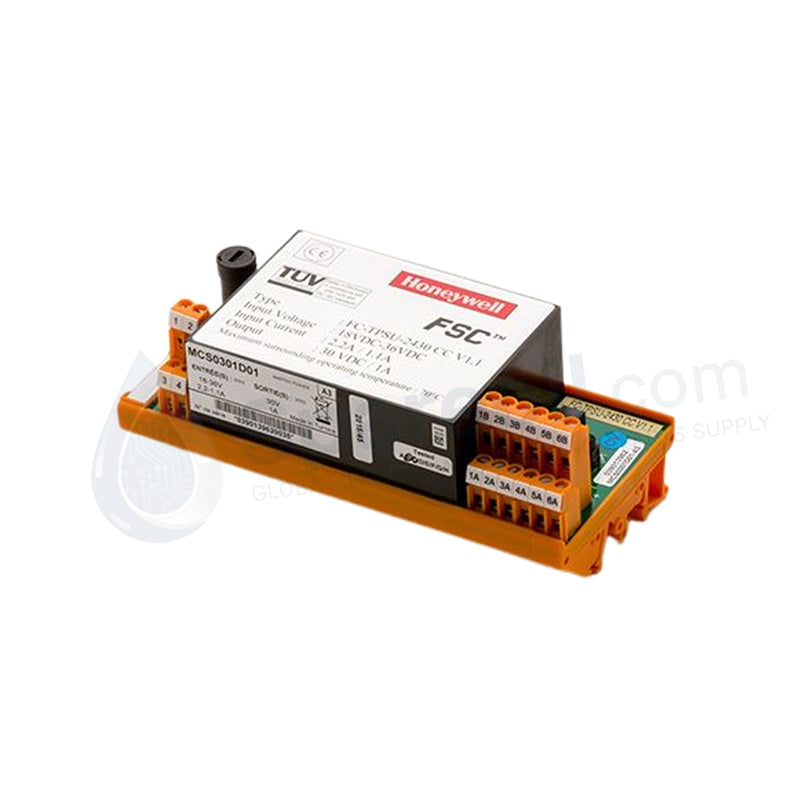

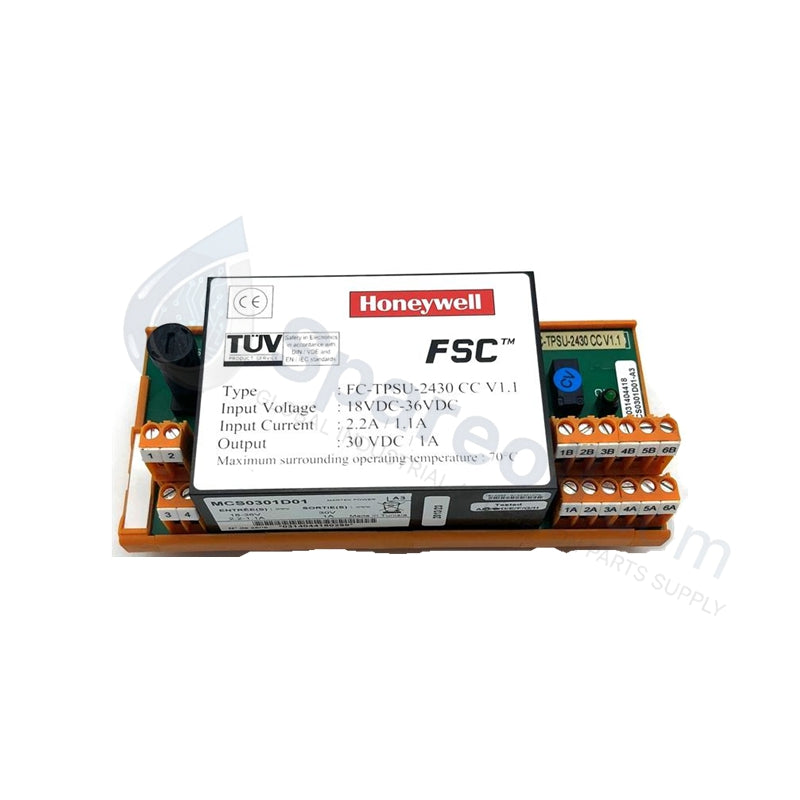

FC-TPSU-2430 Honeywell Safety Manager Datasheet & Technical Manual

Availability: 99 left in stock

Honeywell FC-TPSU-2430 Safety Manager Series The Honeywell FC-TPSU-2430, also cataloged as the FC-TPSU-2430 DC/DC Converter, operates as a dedicated hardware...

SKU: FC-TPSU-2430

Manufacturer: Honeywell
Product No.: FC-TPSU-2430
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 140g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell FC-TPSU-2430 Safety Manager Series

The Honeywell FC-TPSU-2430, also cataloged as the FC-TPSU-2430 DC/DC Converter, operates as a dedicated hardware component for power conditioning and regulation within Honeywell Safety Manager platforms.

Hardware Specifications

Parameter	Specification
Model	FC-TPSU-2430
Brand	Honeywell
Origin	United States
Weight	0.14 kg
Dimensions	20 mm x 190 mm x 128 mm (4TE profile)
Operating Temp	-10 to +60 deg C
Power Consumption	Optimized low-wattage loss design
Module Type	DC/DC Converter / Regulated Power Supply
Output Voltage	24 VDC (stabilized internal logic distribution)
Safety Rating	Suitable for SIL 3 rated safety loops (IEC 61508)
Chassis Slot Width	4TE slot configuration
Diagnostics	Integrated status reporting via Safety Manager backplane

High Reliability Safety Control (SIS)

The module functions within a high-integrity Safety Instrumented System (SIS) environment, deploying high galvanic isolation parameters between the input and output stages to protect sensitive internal logic solvers from voltage transients. Built with a slim 4TE mechanical profile, the hardware architecture aligns with the safety system's fail-safe state execution metrics, isolating field-side electrical noise from the central processors. This electrical separation and power stability ensure compliance with the target parameters demanded by the system's SIL3 certification.

Frequently Asked Questions

Q: What is the mechanical slot requirement for installing the FC-TPSU-2430 module?

A: The module is engineered with a compact 4TE form factor, requiring a single 2 cm wide power supply slot within the standard Honeywell Safety Manager chassis assembly.

Q: How are power anomalies or component faults reported to the control layer?

A: The converter tracks output stability parameters and transmits real-time health data through integrated diagnostic monitoring channels directly across the Safety Manager backplane interface.

Q: Does the module configuration support distributed I/O electrical isolation?

A: Yes, high galvanic isolation is structurally embedded between the input and output stages, preventing cross-talk and protecting the high-density internal safety processor components from field-side voltage spikes.

Field Installation Guidelines

Chassis Alignment and Insertion: Insert the module vertically into the dedicated power supply slot of the Safety Manager chassis. Ensure the rear connectors mate completely with the backplane distribution bus before securing the faceplate fasteners.
Cabinet Thermal Spacing: Maintain clear paths through the chassis ventilation slots. The low-wattage loss design relies on passive convective airflow to manage internal heat loading within the enclosure.
Grounding Connection: Ensure the main chassis rack is bonded to the master copper instrumentation grounding busbar with a low-impedance strap to facilitate safe transient voltage dissipation.
