51309283-600 Honeywell I/O Link Bridge

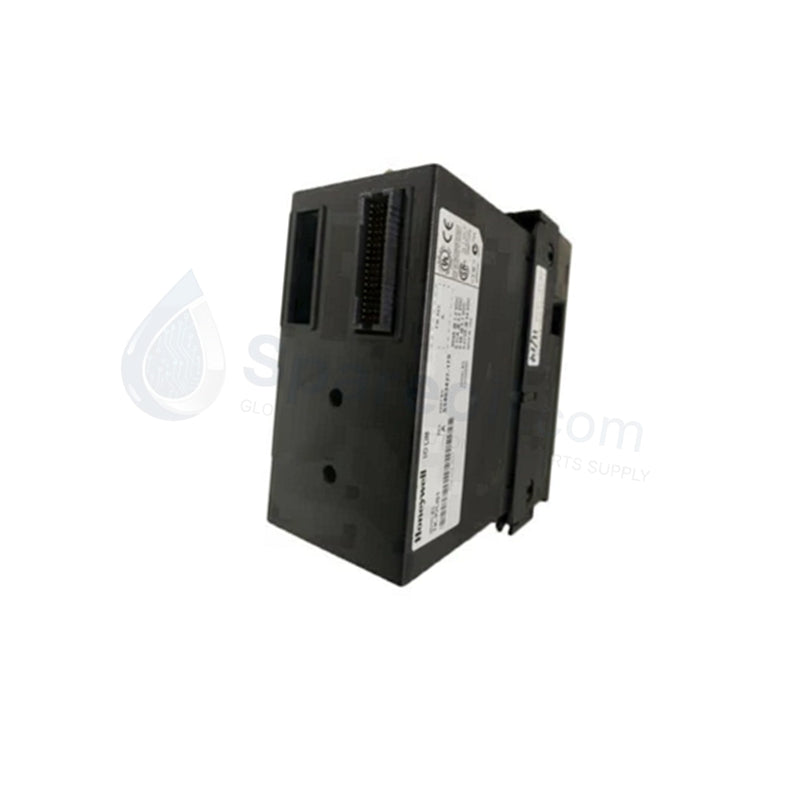

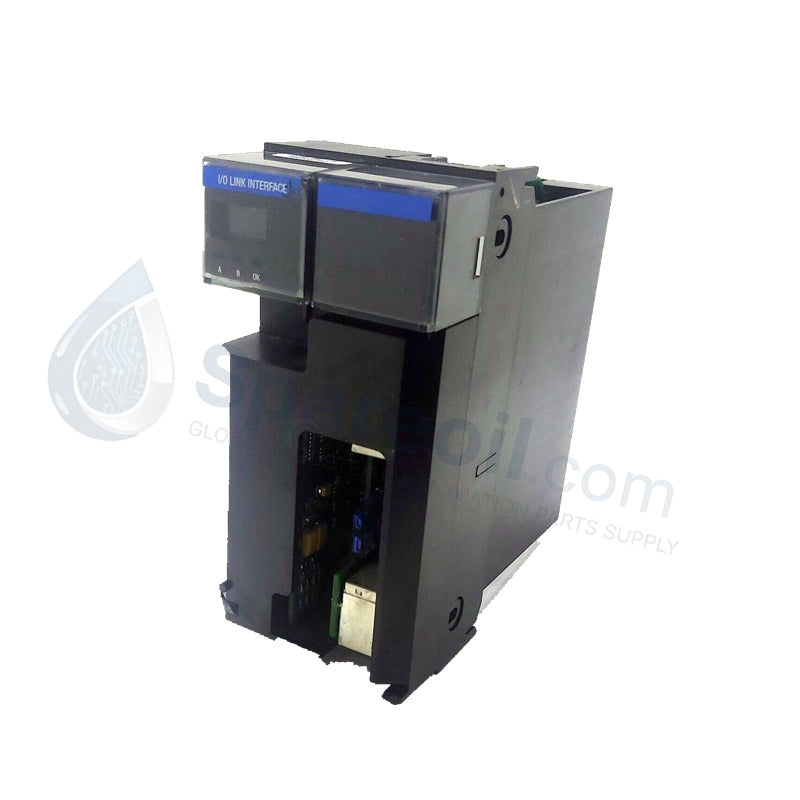

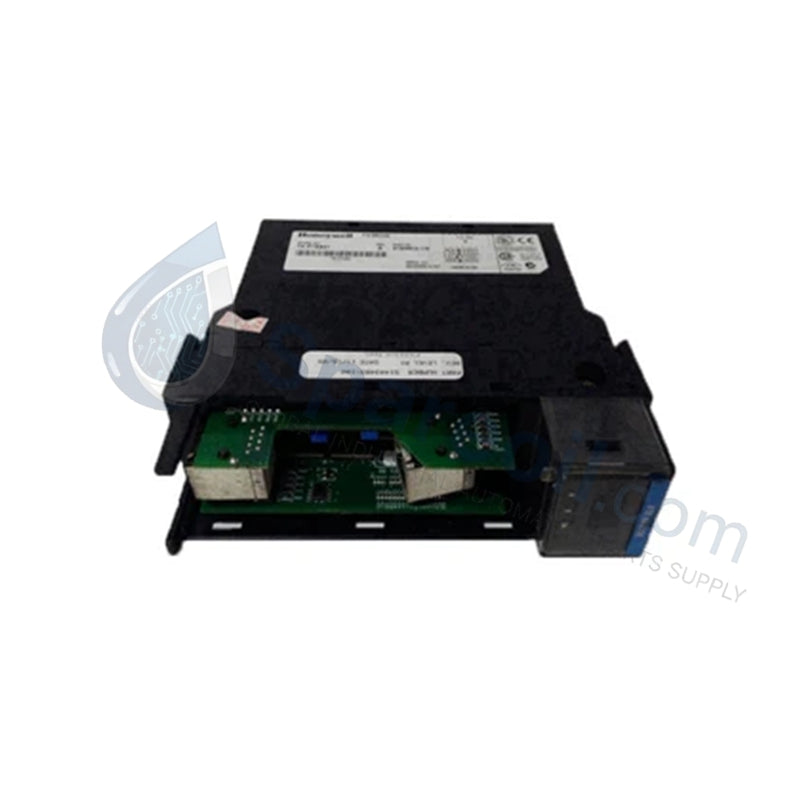

Honeywell 51309283-600 TK-IOLI01 I/O Link Interface Module

Honeywell 51309283-600 TK-IOLI01 I/O Link Interface Module

Availability: 99 left in stock

Configured for high-speed communication bridging in Honeywell Experion PKS and legacy TDC 3000 networks, the Honeywell 51309283-600 (TK-IOLI01 I/O Link...

SKU: TK-IOLI01 51403427-175 51309283-600

Manufacturer: Honeywell
Product No.: TK-IOLI01 51403427-175 51309283-600
Product Type: Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for high-speed communication bridging in Honeywell Experion PKS and legacy TDC 3000 networks, the Honeywell 51309283-600 (TK-IOLI01 I/O Link Interface Module) provides direct physical/electrical execution. The hardware manages the serial I/O Link protocol, driving deterministic data traffic between control processors and remote I/O subsystems. Operating within slot-mounted card racks, the component digitizes and routes sub-bus signals to achieve low-latency updates across localized instrumentation loops.

Hardware Specifications

Parameter	Specification
Model	51309283-600 (TK-IOLI01)
Brand	Honeywell
Origin	USA
Weight	0.45 kg
Dimensions	13.5 cm x 7.1 cm x 2.0 cm
Operating Temp	0 to +60 deg C (Standard Industrial Grade)
Power Consumption	5.5 Watts (Typical)
Function	I/O Link Interface Module
Primary Part Number	51403427-175
Secondary Part Number	51309283-600
Communication Protocol	High-speed Serial I/O Link
System Platform	Experion PKS / TDC 3000
Redundancy Support	Dual-link Redundant compatible
Installation Type	Card Rack Slot-mounted

Process Control and DCS Instrumentation Features

The communication module runs a dedicated link management routine synchronized with the 4-20 mA HART loop protocol subsystem to gather field variables from remote racks. The hardware provides channel-to-channel isolation parameters across the serial link interfaces, shielding inner processing units from external field surges or common-mode faults. To prevent degradation of dynamic loop updates, the module matches data rates with analog inputs using independent cold junction compensation (CJC) sub-buses, providing a transparent gateway for mapping legacy high-density I/O clusters directly into newer control architectures.

Frequently Asked Questions

Q: How does the interface module behave when operating within a dual-link redundant configuration?

A: Two modules operate in a primary/secondary pairing arrangement over independent serial paths; internal hardware logic executes a automatic switchover to the backup link if data frame corruption or a physical line break is detected.

Q: Can this hardware module bridge legacy components without changing field wiring?

A: Yes, the unit maintains backward compatibility with legacy TDC 3000 I/O hardware, allowing engineers to retain existing termination structures while upgrading the supervisory control layer.

Field Installation Guidelines

Chassis Seating: Slide the interface card into the guide rails of the designated rack slot until the rear pins mate with the backplane connectors. Tighten the faceplate locking screws to secure electrical bonding.
Serial Link Shielding: Ground the braided shielding of the high-speed serial link cables strictly at the designated chassis earth bars inside the master controller cabinet to eliminate ground differential loops.
Cable Routing Constraints: Route the dedicated I/O link serial communication cables through segregated low-voltage trays, keeping a minimum distance from high-voltage AC motor lines or switching inductive inductive components.
