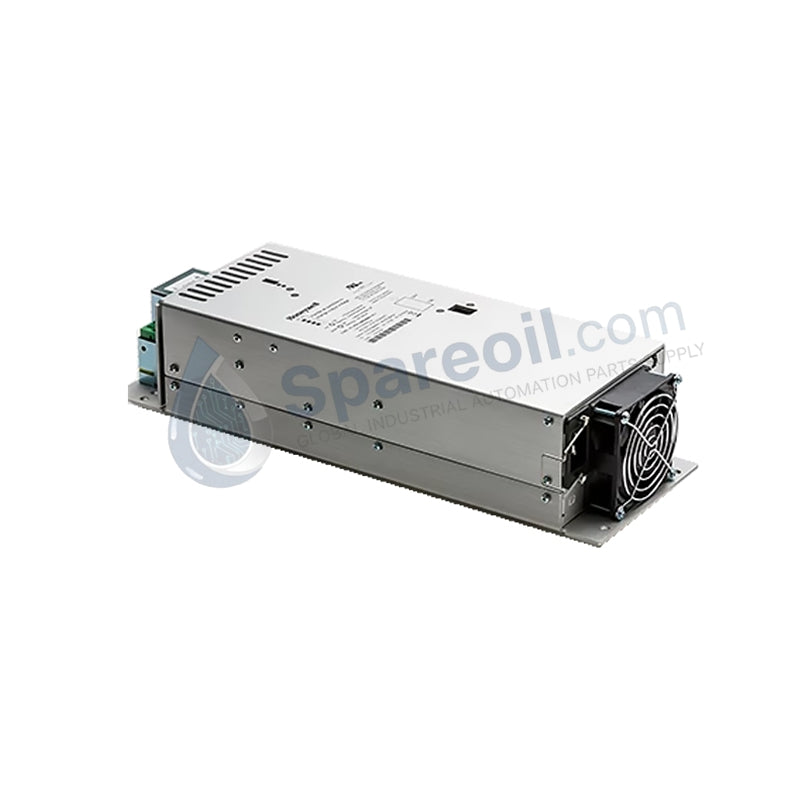

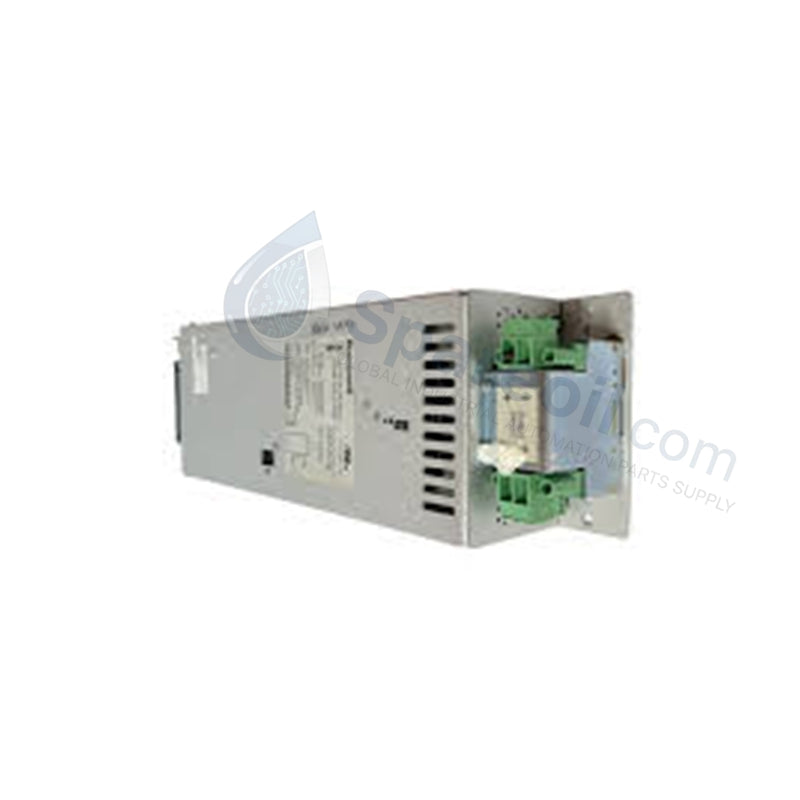

Honeywell FC-PSU-UNI2450 Safety Manager Power Supply

Configured for high-availability power distribution and transient ride-through execution in Honeywell Safety Manager systems, the Honeywell FC-PSU-UNI2450 (FC-PSU-UNI2450 Universal Power Supply Unit) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model FC-PSU-UNI2450 (Compatible with FC-PSU-UNI2450U)
Brand Honeywell
Origin United States
Weight 5.7 kg (12.57 lbs)
Dimensions Standard Safety Manager chassis integrated power block footprint
Operating Temp -5 deg C to 70 deg C (23 deg F to 158 deg F)
Power Consumption Input power baseline determined by > 87% efficiency curve
Input Voltage 110/230 VAC (Auto-ranging or switch-selectable)
Output Voltage 24 VDC to 28 VDC (Nominal 25 VDC / 28 VDC)
Output Current 50 Amperes continuous
Hold-up Time 100 ms minimum at full 50 A load configuration
Ripple & Noise < 40 mVpp
Protection Circuitry Dual overvoltage, overcurrent, and short-circuit protection
Cooling Profile Integrated forced-air cooling (Fan-assisted ventilation)

Channel-to-Channel Isolation & Power Regulation

The power supply unit converts raw 110/230 VAC mains grid inputs into a stable 24 VDC to 28 VDC output bus dedicated to logic solvers and critical field loop loads. Internal switching networks suppress voltage ripple beneath 40 mVpp, while integrated channel-to-channel isolation barriers mitigate common-mode noise transfer from incoming AC lines into sensitive DC processing paths.

An internal energy-storage matrix yields a 100 ms hold-up time at a full 50 A output current load. This baseline storage profile functions as a passive hardware filter, allowing the system to maintain stable output voltage through deep grid disruptions and prevent premature dropping of safety relays or unintended fail-safe state execution in the downstream safety instrumented system (SIS).

Frequently Asked Questions

Q: Does the FC-PSU-UNI2450 allow hot-swap manipulation inside a live safety rack? A: Yes. When deployed in parallel redundant configurations, individual units can be inserted or extracted while the main DC bus is energized. The active internal blocking diodes decouple the faulted or unpowered unit from the active power stream, preventing a parallel drop in system voltage.

Q: How does the unit protect output field loops from high-voltage AC surges entering the primary grid? A: The hardware incorporates dual overvoltage protection circuits alongside a galvanic isolation structure. If the internal switching regulators fail, independent clamp networks activate to clip the output voltage profile, preventing high-voltage propagation from reaching down to the logic processing modules.

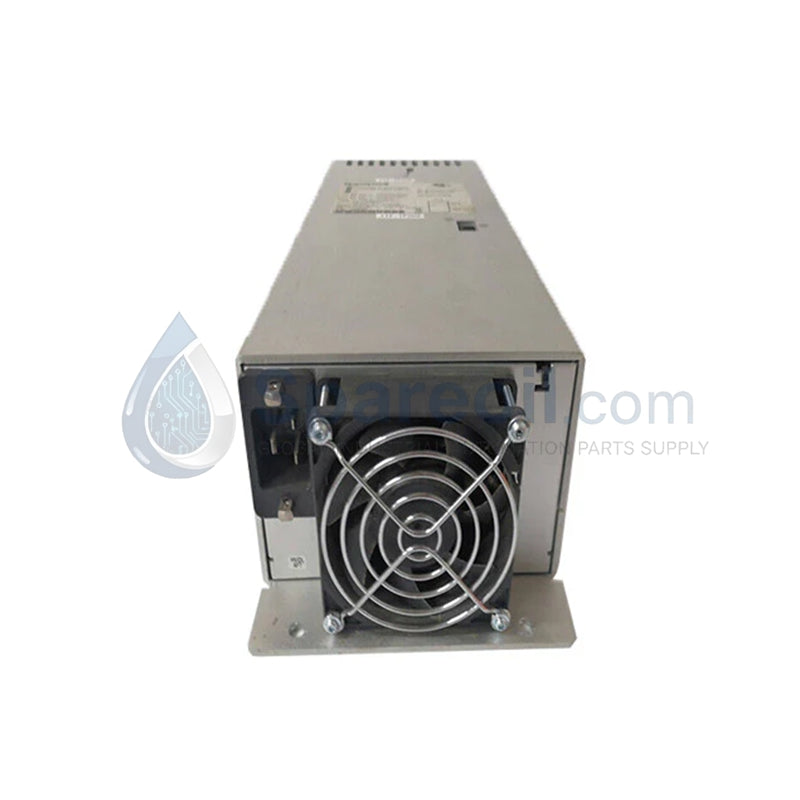

Q: What is the maintenance criteria for the integrated forced-air cooling fans? A: The module relies on constant fan-assisted ventilation to sustain its 50 A rating at elevated ambient temperatures up to 70 deg C. Fan health parameters are monitored internally; any drop in RPM triggers a system fault register, requiring prompt element inspection to avoid thermal shutdowns.

Field Installation Guidelines

  • Cabinet Ventilation and Placement: Slot the assembly into its assigned position within the Safety Manager enclosure. Ensure the intake and exhaust vents of the fan assembly are clear of wires or structural obstructions to facilitate steady vertical air displacement.
  • AC Input Wire Cross-Sections: Use minimum 4.0 mm2 (12 AWG) copper conductors rated for 90 deg C for the primary AC terminal connections. Torque all screw terminals to manufacturer specifications to eliminate high-resistance points.
  • Output Bus Grounding: Connect the main negative output rail to the cabinet master instrument ground bar using a low-impedance copper strap. Ensure that all shield drains from field instrumentation bypass the power supply chassis directly to the designated earth grounding frame.
