AKB331-M010 Yokogawa AKB331 Datasheet & Technical Manual

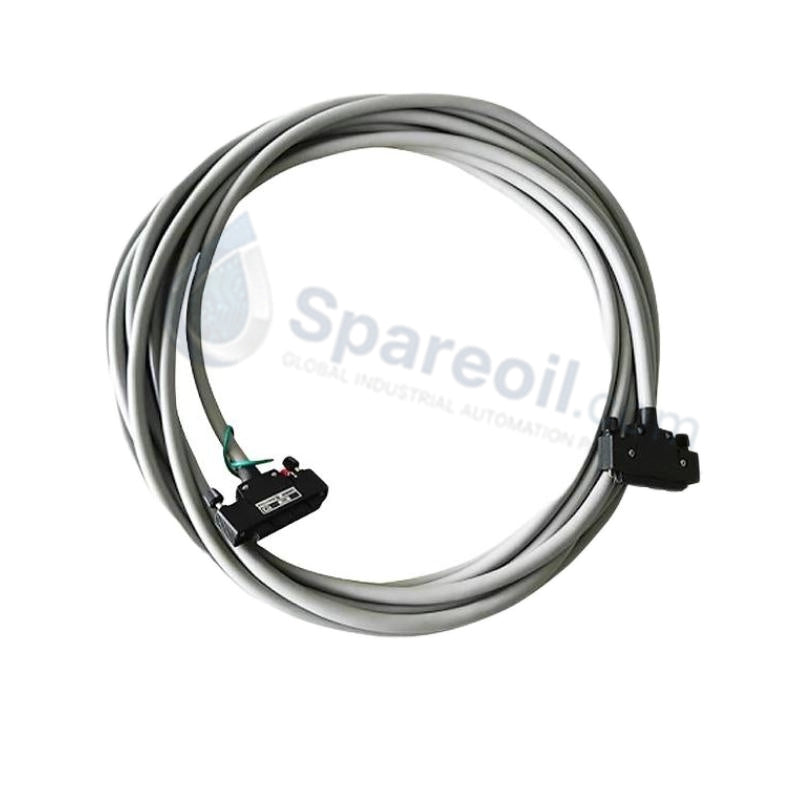

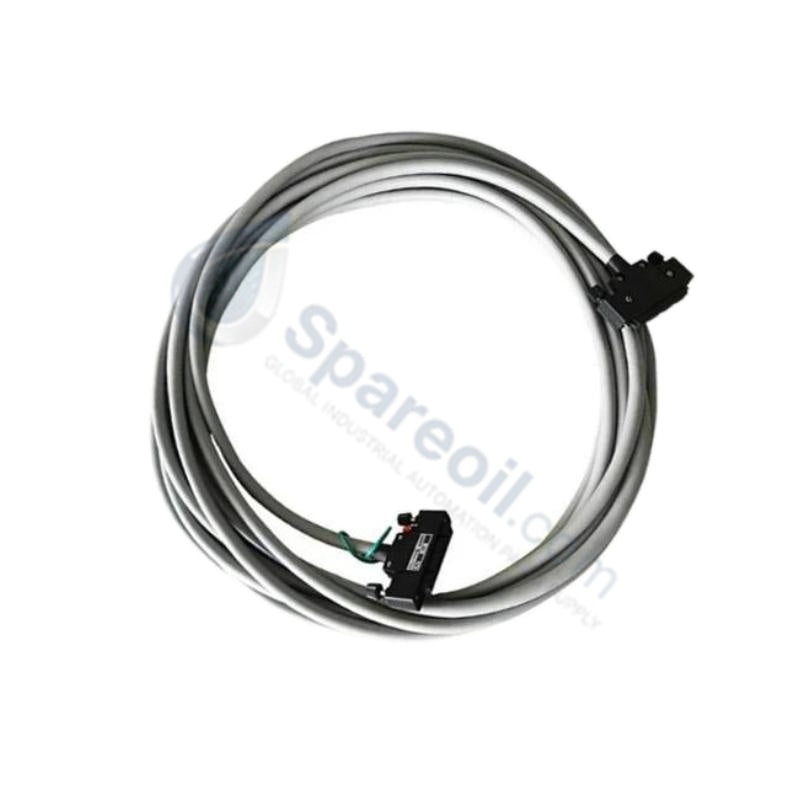

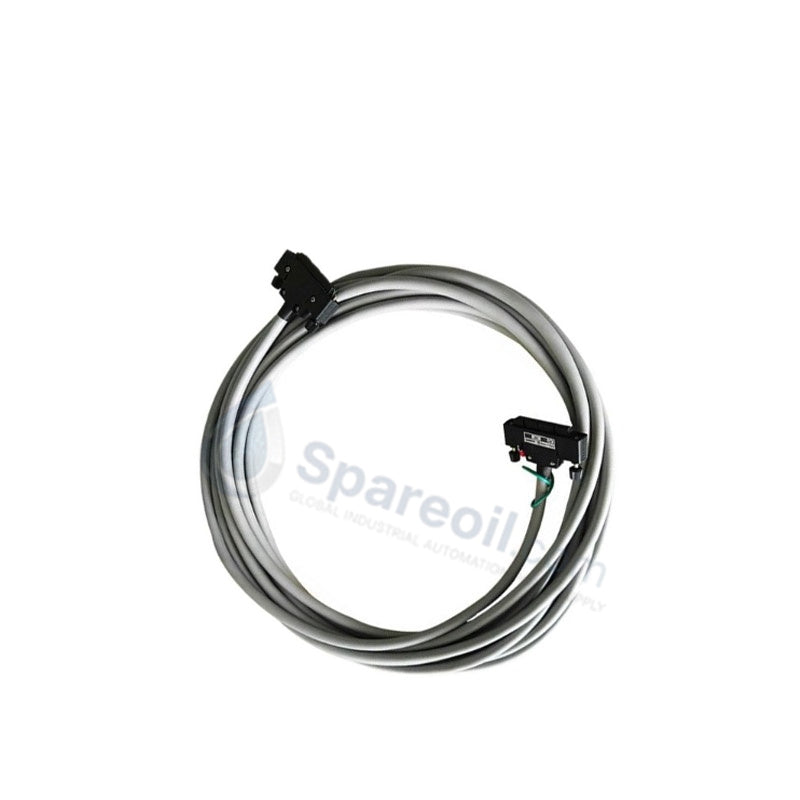

Yokogawa AKB331-M010 AKB331 Signal Cable 50-50 Pins

Yokogawa AKB331-M010 AKB331 Signal Cable 50-50 Pins

التوفر: 99 متوفر في المخزون

YOKOGAWA AKB331-M010 Signal Cable Configured for Specific Technical Task in System/Network Name, the YOKOGAWA AKB331-M010 (AKB331 Signal Cable (50-50 pins))...

رمز المنتج: AKB331

Manufacturer: Yokogawa
Product No.: AKB331
Product Type: Signal Cables
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

YOKOGAWA AKB331-M010 Signal Cable

Configured for Specific Technical Task in System/Network Name, the YOKOGAWA AKB331-M010 (AKB331 Signal Cable (50-50 pins)) provides direct physical/electrical execution. This passive hardware assembly establishes point-to-point electrical connectivity between discrete I/O modules, safety modules, and dedicated field terminal boards within CENTUM VP, CENTUM CS 3000, and ProSafe-RS control architectures. The cable acts as the primary pathway for high-density multi-channel signal routing, securing low-impedance connection integrity without signal degradation across industrial control networks.

Hardware Specifications

Parameter	Specification
Model	AKB331-M010
Brand	Yokogawa
Origin	Japan
Weight	0.5 kg
Dimensions	Factory length 10 m, 50-pin to 50-pin interface
Operating Temp	-20 deg C to +70 deg C
Power Consumption	0.0 W (Passive component)
Cable Type	Multi-core industrial signal cable
Connector Configuration	50-pin to 50-pin MIL standard
Compatible Modules	SDV144, SDV531, SDV53A, SDV541, SAT145
Shielding Structure	Dual-layer (aluminum foil + copper braid)
Conductor Material	High-purity stranded copper
Voltage Rating	300 V

Process Control & DCS Instrumentation Attributes

The AKB331-M010 signal assembly incorporates dual-layer electromagnetic interference shielding designed to stabilize 4-20 mA HART loop protocol parameters when deployed alongside high-density distributed control system components. The structural geometry of the multi-core conductor maintains tight channel-to-channel isolation metrics, suppressing electrostatic crosstalk and inductive coupling between adjacent pairs. This physical barrier ensures that low-level analog inputs and micro-ampere safety signals maintain strict signal integrity throughout transmission. Furthermore, the low resistance profile of the stranded copper conductors prevents voltage drops across the 10 m span, preserving the measurement accuracy required by host modules performing cold junction compensation or process variable digitization.

Frequently Asked Questions

Q: Can the AKB331-M010 signal cable be altered or truncated in the field to match specific panel dimensions?

A: No. The assembly is factory-terminated and sealed to maintain precise electrical characteristics. Field modification breaks the integrity of the dual-layer shielding and invalidates the safety certifications for high-density I/O routing.

Q: What is the maximum voltage threshold allowed across the individual pin contacts of this cable?

A: The insulation system and connector spacing are rated for a maximum operating voltage of 300 V. Exceeding this limit compromises the channel-to-channel isolation and risks dielectric breakdown between internal stranded cores.

Field Installation Guidelines

During deployment, installers must maintain the minimum bend radius constraints specified for multi-core shielded cables to prevent mechanical stress on the inner conductor strands. Route the cable through dedicated low-voltage wireways, ensuring absolute physical separation from high-current AC power lines or variable frequency drive outputs to avoid electromagnetic interference. Secure the 50-pin MIL connectors into the mating module receptacles until the mechanical locking mechanisms engagement is complete. The integrated dual-layer shield must connect directly to the system cabinet earth ground via the specified grounding bars, preventing ground loops while ensuring maximum electrostatic drain performance.
