Honeywell 10216/2/1 Fail Safe Control Series

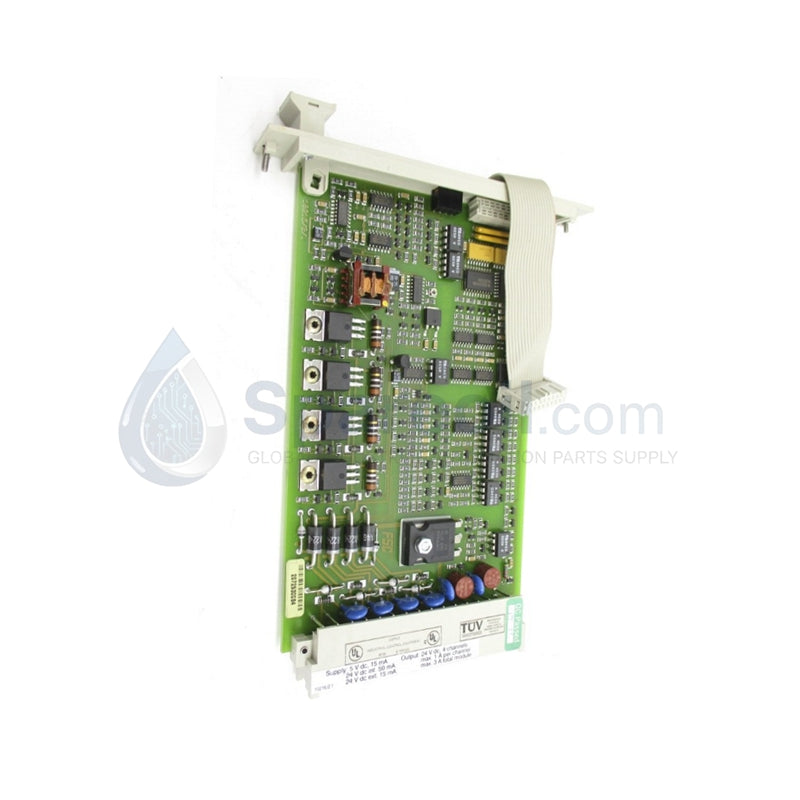

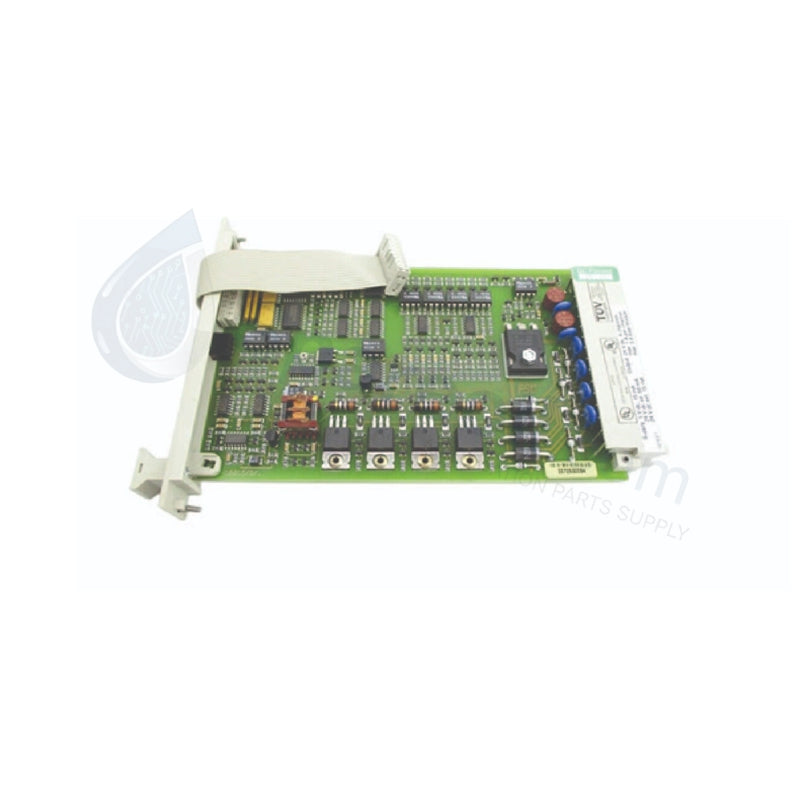

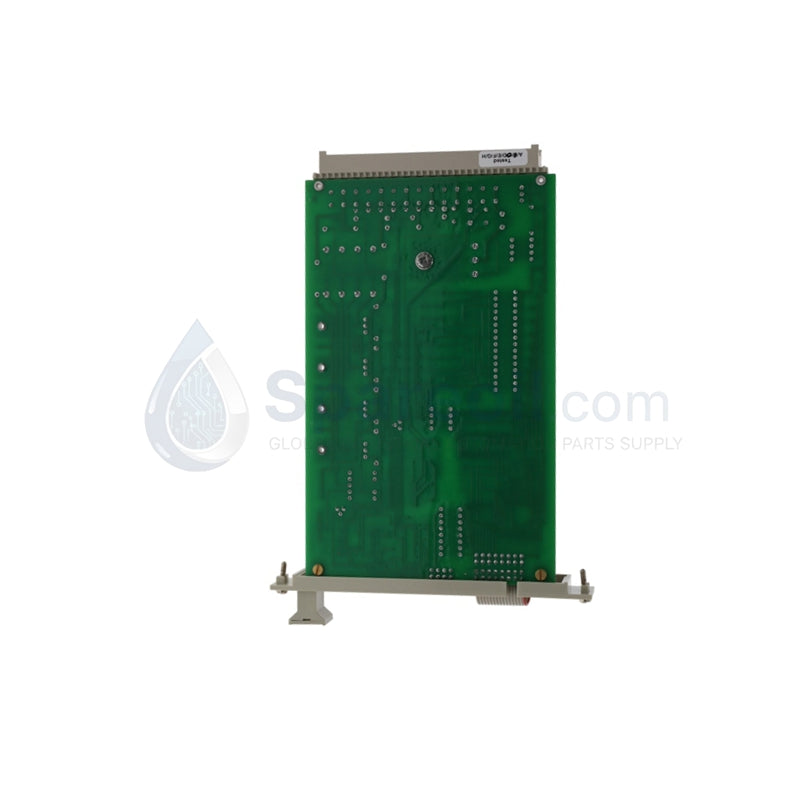

The Honeywell 10216/2/1, also cataloged as the 10216/2/1 (Board Reference 11502) Digital Output Module, operates as a dedicated hardware component for driving heavy-duty safety loads within Fail Safe Control (FSC) platforms.

Hardware Specifications

Parameter Specification
Model 10216/2/1 (10216-2-1)
Brand Honeywell
Origin United States
Weight 0.20 kg
Dimensions 3U Height x 4 HP Width (3 cm x 20 cm x 15 cm)
Operating Temp -10 to +60 deg C
Power Consumption Backplane powered via FSC rack
Output Channels 4 Independent Fail-Safe Channels
Rated Voltage 24 VDC
Max Current 2.0 A per channel (Short-circuit proof)
Max Power Load 48 W per channel
Safety Integrity Level TUV Certified SIL-3
Physical Key Coding Holes A15, C15 / Pins A15, C15

High Reliability Safety Control (SIS)

The module interfaces with Safety Instrumented Systems (SIS), leveraging a high-integrity design to meet strict SIL-3 requirements. Internal diagnostic registers execute continuous automatic de-energization tests and crosstalk detection to ensure immediate signal execution. The hardware architecture guarantees deterministic fail-safe state execution, driving a 24 VDC output at up to 2.0 A per channel while integrated suppression diodes manage back-EMF from heavy inductive coils without relying on interposing relays.

Frequently Asked Questions

Q: What mechanisms protect the 11502 internal board from field inductive transients? A: Each of the 4 independent fail-safe channels features integrated suppression diodes. These components isolate the module's internal electronic tracks by clamping the back-EMF voltage spikes generated when heavy solenoid valves or motor starter coils are de-energized.

Q: How does the 10216/2/1 handle physical short-circuit faults in field wiring? A: The module incorporates electronic short-circuit protection. Upon detection of an overcurrent condition exceeding the 2.0 A channel limit, the circuitry restricts the output current to safeguard the 11502 board and the power layers of the FSC backplane.

Q: What is the technical function of the physical key coding holes on the chassis? A: The physical key coding located at holes A15 and C15 matches corresponding index pins on the rack slot. This mechanical matrix prevents incorrect module insertion during hot-swap operations, isolating the system from potential voltage mismatches.

Field Installation Guidelines

  • Mechanical Slot Assignment and Coding: Before insertion, verify that the slot index pins match the A15 and C15 key coding configuration. Slide the 4 HP wide module into the 3U chassis guides until the rear interface connects completely with the backplane.
  • Inductive Load Grounding Strategy: Connect the common return paths of the 24 VDC field actuators directly to the master copper power distribution ground plane. Ensure all shield drain wires terminate at a single point to prevent circulating ground currents.
  • Wiring Separation Constraints: Route the 2.0 A high-current discrete output cables through separate wiring channels distinct from low-voltage analog inputs or sensitive communication lines to suppress magnetic cross-talk.
