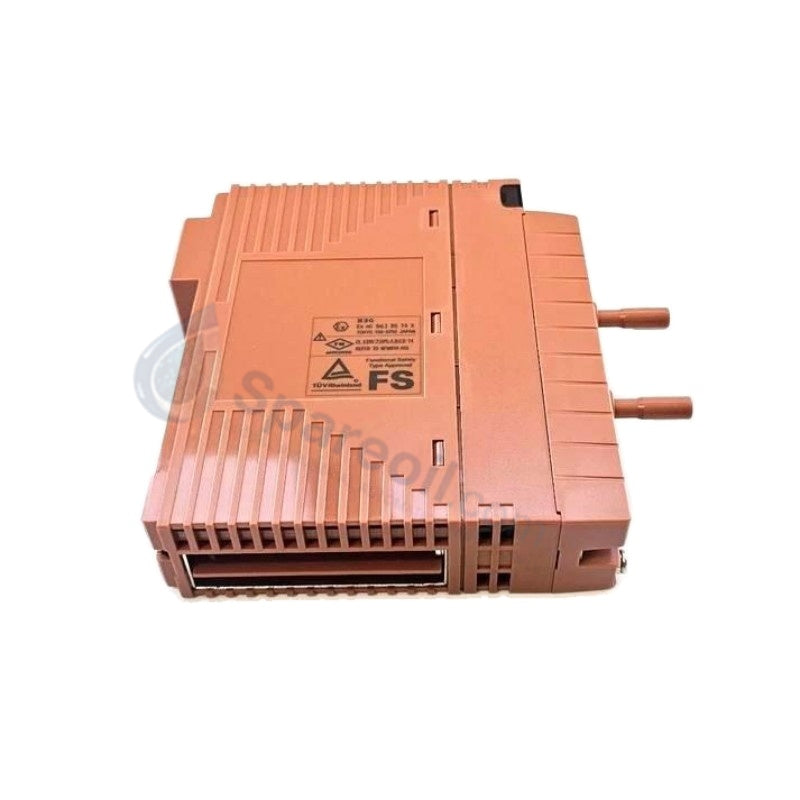

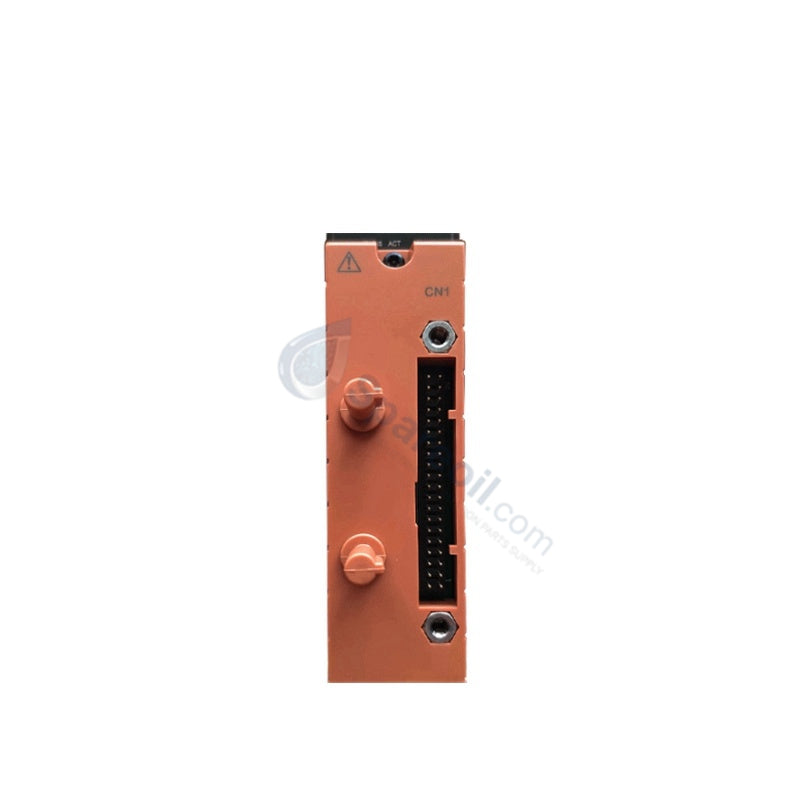

YOKOGAWA SAI143-S63 S3 Analog Input Module

Configured for high-density analog signal acquisition in CENTUM VP and ProSafe-RS systems, the YOKOGAWA SAI143-S63 S3 (SAI143 Analog Input Module) provides direct physical/electrical execution. The hardware processes 16 channels of 4-20 mA DC signals from field transmitters, digitizing process variables directly at the I/O node level.

Suffix Breakdown & Model Matrix

Base Model	Suffix / Option	Specification Profile
SAI143	-S63	Standard performance with G3 conformal coating (-20 to 70 deg C)
SAI143	S3	Style revision 3 hardware designator

Hardware Specifications

Parameter	Specification
Model	SAI143-S63 S3
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	2.2 cm x 12.4 cm x 12.6 cm
Operating Temp	-20 to 70 deg C
Power Consumption	300 to 400 mA
Input Signal Range	4 to 20 mA DC
Channel Count	16 channels, individually isolated
Input Impedance	250 ohms
Resolution / Accuracy	16-bit ADC / +/-0.1% of span
Isolation Rating	Optical isolation between channels and system bus
Environmental Rating	ISA-S71.04 G3 conformal coating

Process Control & Fieldbus Interfacing

The module incorporates 4-20 mA HART loop protocol support across all 16 input channels, enabling pass-through and burst-mode digital data transmission from smart transmitters. Channel-to-channel optical isolation protects internal backplane logic against field-side voltage surges, common-mode noise, and potential ground loops. Built-in signal suppression and continuous self-diagnostic routines verify channel hardware integrity in real time.

Frequently Asked Questions

Q: Does the unit support hot-swapping during active operation in a Field Control Station node?

A: Yes, technicians can hot-swap the module in a live system node without disconnecting power from adjacent I/O modules or interrupting system processing.

Q: What is the maximum allowable continuous input voltage for individual channels?

A: The input circuitry tolerates a maximum continuous input voltage of 30 VDC without damaging the input isolation stages or loop detection circuits.

Q: How does the G3 conformal coating protect the module inside field enclosures?

A: The ISA-S71.04 G3 coating shields the solid-state circuitry and printed circuit board against corrosive airborne contaminants such as hydrogen sulfide and sulfur dioxide.

Field Installation Guidelines

Mount the module vertically into an available slot within the Node Unit backplane. Push the module firmly into position until the connector engages fully, then secure the top retaining screw to complete the chassis ground earth connection.

Route field transmitter cables through low-voltage cable ducts, maintaining at least 300 mm separation from high-voltage AC distribution power cables. Connect 4-20 mA field loop wiring using the integrated signal cable interface adapter, ensuring shield drains terminate to a single dedicated system earth bar.
