8C-PAIN01 Honeywell Experion Series 8 Datasheet & Technical Manual

Availability: 99 left in stock

Honeywell 8C-PAIN01 Experion PKS Series 8 The Honeywell 8C-PAIN01, also cataloged as the 51454356-175 Analog Input Module, operates as a...

SKU: 8C-PAIN01

Manufacturer: Honeywell
Product No.: 8C-PAIN01
Product Type: Honeywell Experion PKS Series 8
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

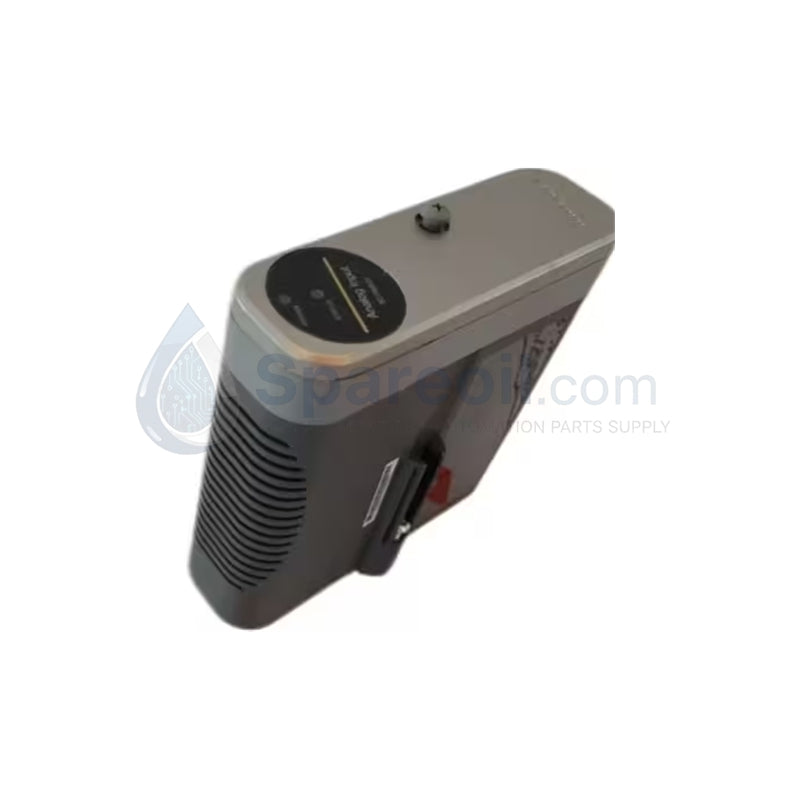

Honeywell 8C-PAIN01 Experion PKS Series 8

The Honeywell 8C-PAIN01, also cataloged as the 51454356-175 Analog Input Module, operates as a dedicated hardware component for high-precision differential analog input signal conditioning within Experion PKS Series 8 C300 platforms.

Hardware Specifications

Parameter	Specification
Model	8C-PAIN01
Brand	Honeywell
Origin	United States
Weight	0.5 kg
Dimensions	5.1 cm x 26.7 cm x 17.8 cm
Operating Temp	-40 to +70 deg C
Power Consumption	Backplane powered via Series 8 carrier
Input Configuration	16-Channel high-impedance differential voltage
Input Impedance	> 10 MOhms
Isolation Voltage	1000 VDC field-to-logic (optical isolation)
Software Configurable Ranges	-40 to +40 mA, 0-20 mA, 0-10 V
Conversion Accuracy	+/-0.1% of Full Scale
Resolution	0.01% of Full Scale
Common Mode Rejection (CMRR)	> 120 dB @ 60 Hz

Process Control and DCS Instrumentation

The module architecture incorporates a 4-20 mA HART loop protocol layer embedded within a high-impedance differential circuit design to achieve superior noise rejection in electrified process environments. Optical separation rated at 1000 VDC establishes a channel-to-backplane isolation barrier that stops transient spikes and ground loops from compromising the logic solver. The input stage maintains an input impedance greater than 10 MOhms, driving a fast analog-to-digital converter matrix that achieves a common mode rejection ratio (CMRR) exceeding 120 dB at 60 Hz.

Frequently Asked Questions

Q: How is the signal input range configured on the 8C-PAIN01 hardware? A: The input ranges, including -40 to +40 mA, 0-20 mA, and 0-10 V configurations, are entirely software-selectable via the Experion PKS engineering environment. No physical hardware jumpers or DIP switches are required on the module board.

Q: What level of electrical overload protection is built into the analog channels? A: The input loops feature multi-stage overload protection circuits capable of withstanding a continuous 120% current overload for up to 2 seconds, and transient peaks reaching up to 150% of full scale for a maximum of 0.1 seconds.

Q: Can this module be hot-swapped while the C300 controller is online? A: Yes, the Series 8 mechanical architecture supports live hot-swap execution. The 8C-PAIN01 module can be removed from or inserted onto its associated I/O Termination Assembly (IOTA) without disrupting power or data transmission to adjacent modules on the carrier.

Field Installation Guidelines

IOTA Attachment and Seating: Align the module pins with the corresponding receiver slots on the Series 8 IOTA block. Press down firmly until the integrated mechanical latch clicks into place to ensure uniform electrical connectivity.
Differential Shield Grounding: Field instrument twisted-pair shielding drain wires must be terminated at the designated grounding bar on the IOTA panel. Ensure single-point grounding practices are enforced to prevent circulating earth currents.
Signal Cable Trays: Route all analog input wiring through dedicated low-voltage wire paths. Maintain a minimum physical distance from 480 VAC electrical mains, motor drives, and magnetic switching relays to prevent inductive noise induction.
