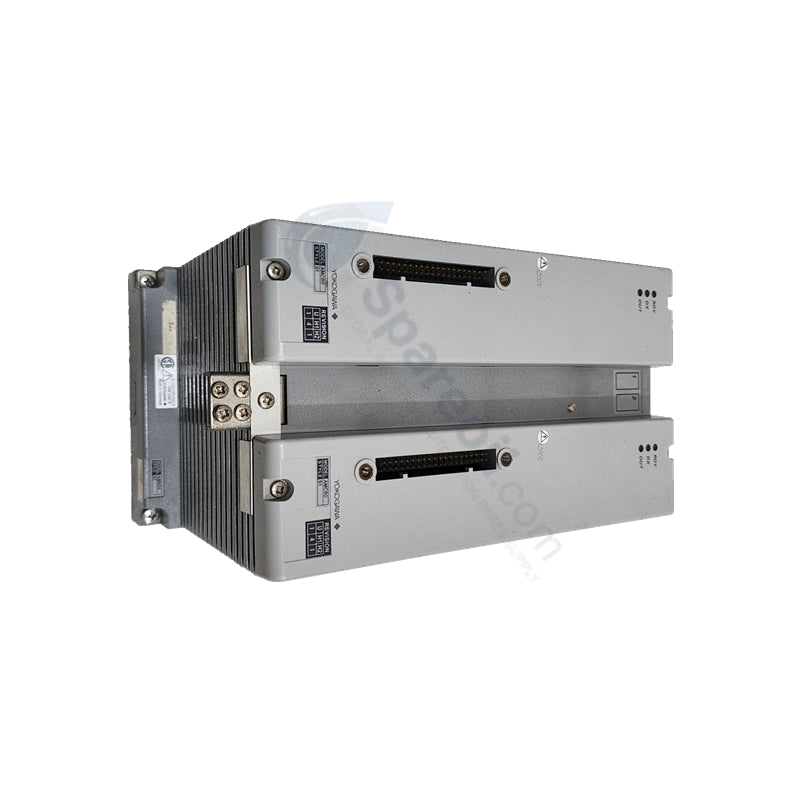

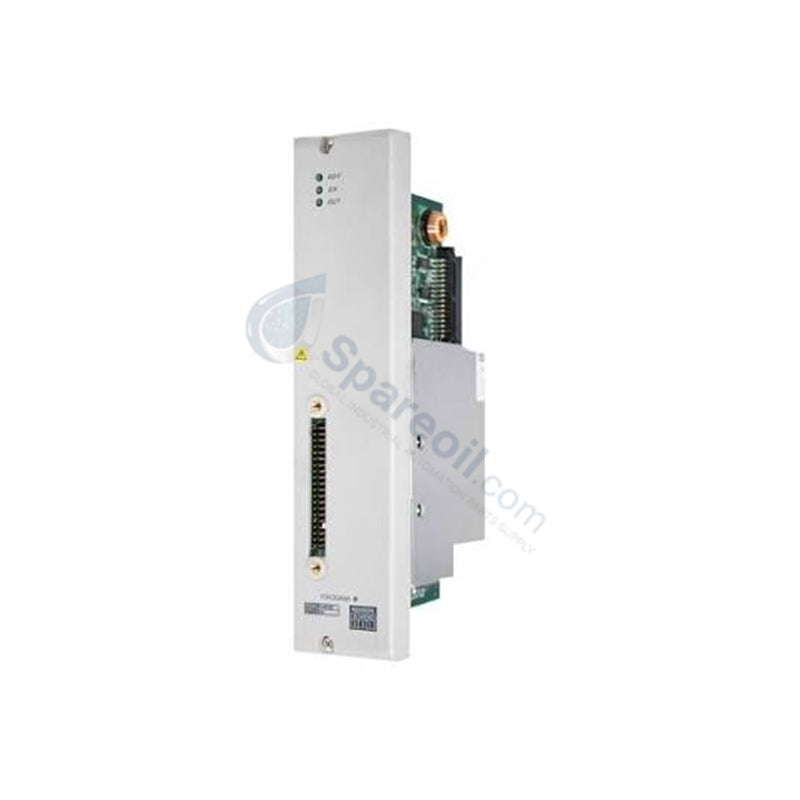

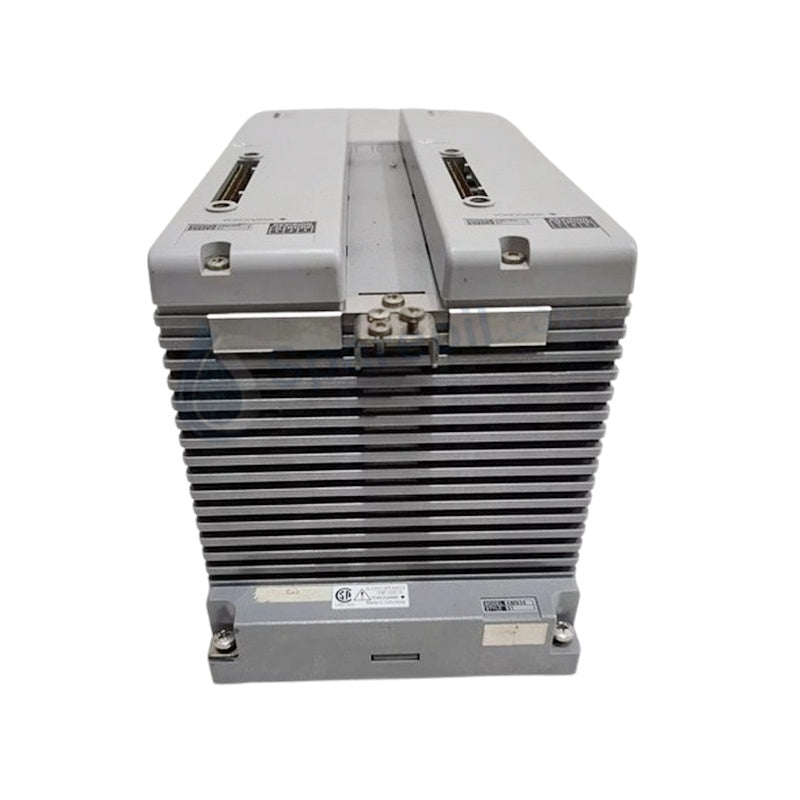

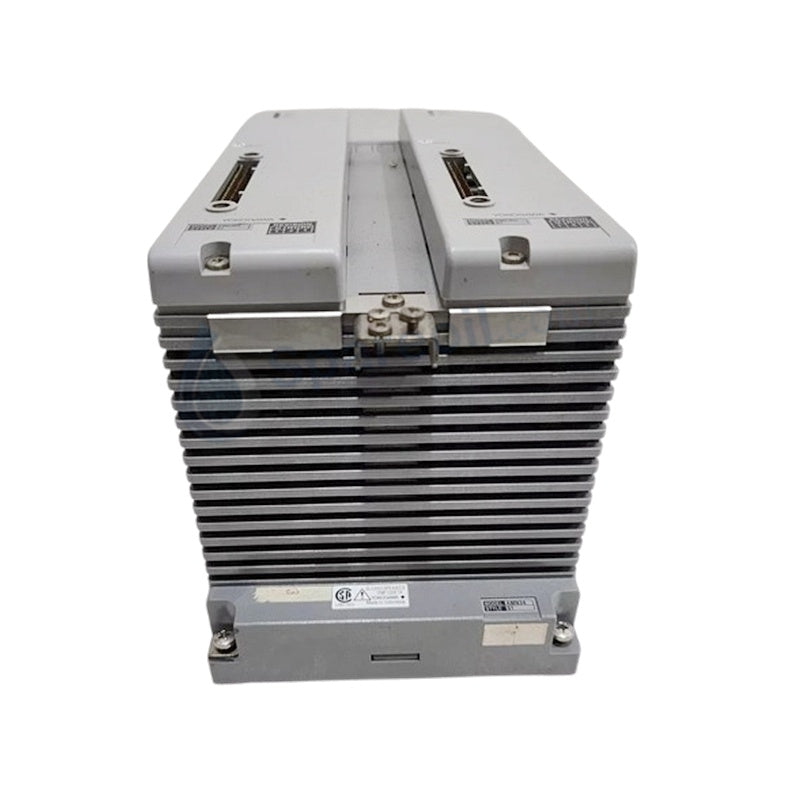

Yokogawa AMC80/ZCT CENTUM Remote Analog I/O Module

Configured for remote analog signal conversion and execution in CENTUM VP, CENTUM CS, and CS 3000 platforms, the Yokogawa AMC80/ZCT (AMC80 Remote Analog I/O Module) provides direct physical/electrical execution. The hardware acquires 0-10 VDC and 4-20 mA signals from transmitters via M4 terminal blocks and KS1 cables while converting data through 16-bit A/D-D/A circuits back to the central system bus.

Hardware Specifications

Parameter Specification
Model AMC80/ZCT
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 260 x 180 x 60 mm
Operating Temp -20 to +60 deg C
Power Consumption 24 VDC (±20% operating range)
System Compatibility CENTUM VP, CENTUM CS, CS 3000 DCS
Signal Types 0-10 VDC, 4-20 mA current loops
Signal Accuracy ±0.1% of full scale (typical)
Conversion Resolution 16-bit A/D and D/A conversion
Interface Connections CN1 / CN2 connectors for KS1 cables
Terminal Screw Sizes I/O & Power: M4 screws; Shield: M3 screws
Mounting Type 19-inch rack or wall mounting via M5 screws

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The module incorporates multi-stage optical isolation to decouple field wiring loops from system control logic circuits. Channel-to-channel and channel-to-system isolation barriers isolate connected 4-20 mA HART loop protocol lines against high common-mode voltages and electrical transients. Onboard signal conditioning networks process both 0-10 VDC and 4-20 mA signals with a full-scale precision of ±0.1%, rejecting high-frequency industrial noise before sending digitized field variables across the Vnet-IP network.

Frequently Asked Questions

Q: What cable specifications are required to interface the module with the main system nest?

A: Interconnection requires Yokogawa KS1 system cables plugged directly into the onboard CN1 and CN2 interface connectors.

Q: How are power supply feeds and ground connections terminated on the module?

A: Connect external 24 VDC power lines and chassis ground wires to the dedicated M4 screw terminal block, maintaining a tight screw engagement to ensure stable power distribution.

Q: Does the hardware support live replacement without interrupting adjacent I/O loops?

A: Yes, the unit supports hot-swapping procedures when installed in redundant I/O configurations, allowing technicians to replace the module without shutting down system power.

Field Installation Guidelines

  1. Position the module horizontally on a standard 19-inch rack frame or mounting wall, securing the housing with M5 screws.
  2. Verify that the main 24 VDC external power distribution feed remains de-energized prior to attaching wiring.
  3. Terminate power and field I/O wiring onto the M4 screw terminals, tightening each screw to a nominal torque of 1.2 Nm.
  4. Connect all field signal cable drain wires directly to the dedicated M3 shield terminal to establish an effective single-point ground path.
  5. Insert the KS1 interface cables firmly into the CN1 and CN2 connectors until the integrated locking latches engage fully.
  6. Confirm that front-panel diagnostic LED indicators illuminate steady green upon restoring 24 VDC loop power to verify proper system bus communication.
