FBM2 Foxboro P0400YC I/A Series Datasheet & Technical Manual

Availability: 10 left in stock

Foxboro FBM2 P0400YC Analog Input Fieldbus Module Configured for physical signal routing and conditioning in I/A Series Distributed Control System...

SKU: FBM2 P0400YC

Manufacturer: Foxboro
Product No.: FBM2 P0400YC
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

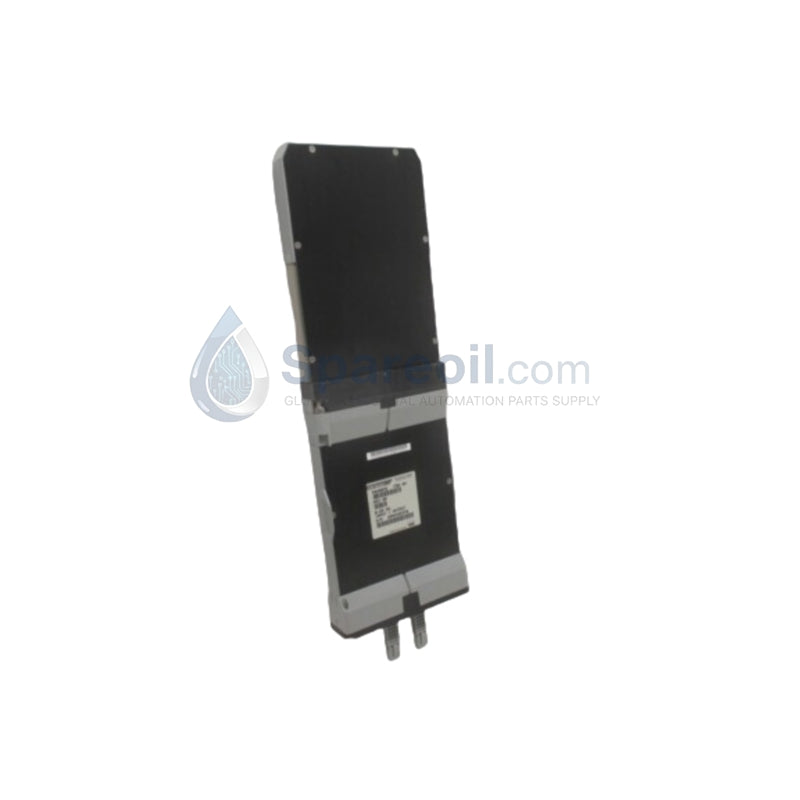

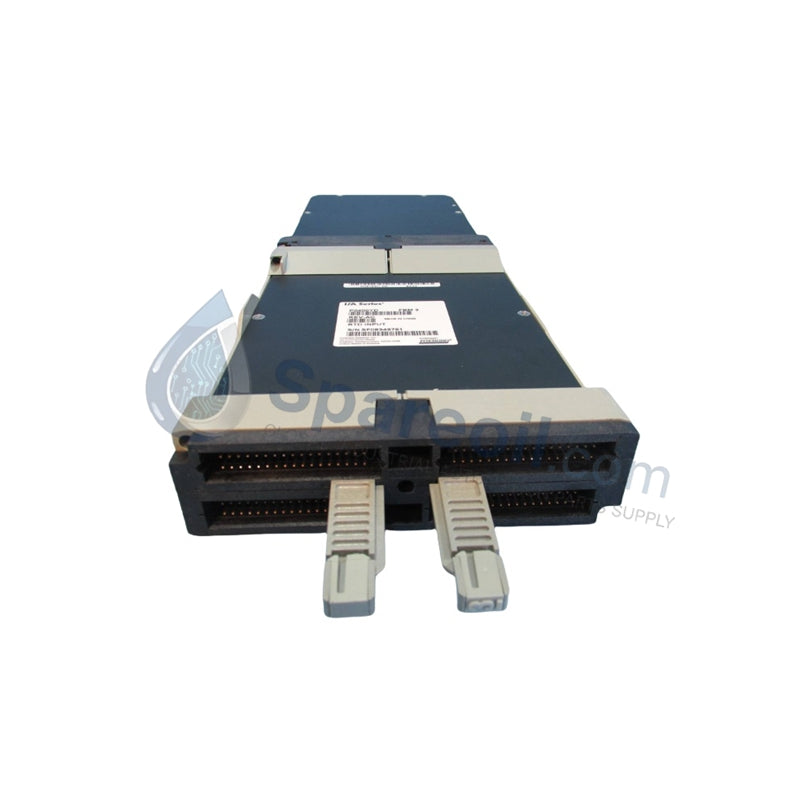

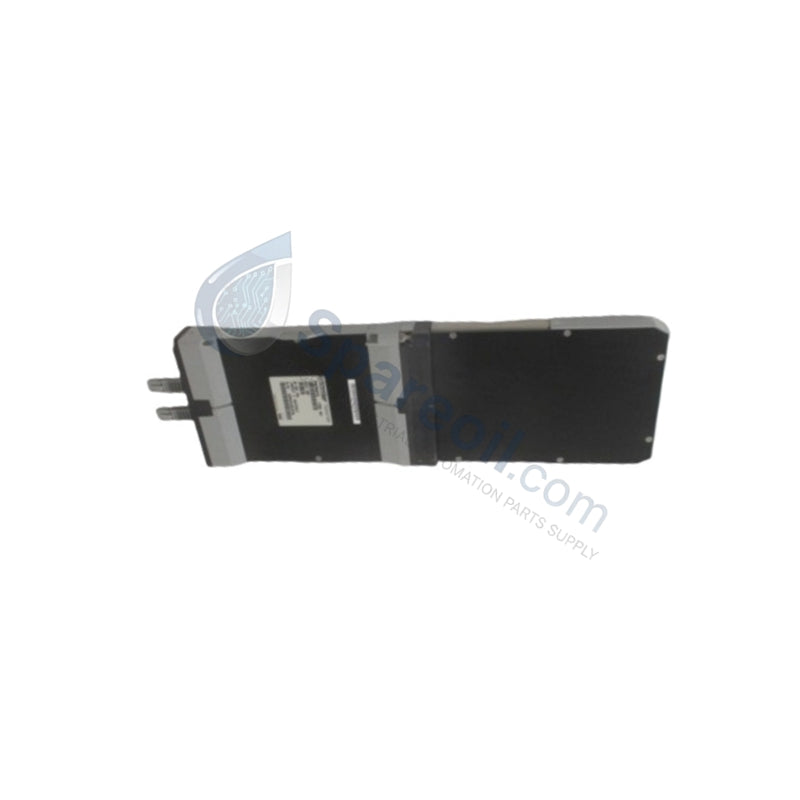

Foxboro FBM2 P0400YC Analog Input Fieldbus Module

Configured for physical signal routing and conditioning in I/A Series Distributed Control System networks, the Foxboro FBM2 P0400YC (FBM2 Analog Input Fieldbus Module) provides direct physical/electrical execution. The hardware targets 16 parallel analog instrumentation loops, executing automated analog-to-digital data frame transformation across a centralized backplane bus. By performing continuous voltage and loop current digitization locally on the module, the unit offloads cyclic signal acquisition tasks directly from primary control processors.

Hardware Specifications

Parameter	Specification
Model	FBM2 (P0400YC)
Brand	Foxboro (Schneider Electric)
Origin	United States
Weight	0.55 kg
Dimensions	Standard FBM system slot layout
Operating Temp	-20 to +60 deg C
Power Consumption	24 V DC via system backplane
Channel Capacity	16 isolated analog input channels
Input Signal Types	4-20 mA current loops, voltage signals
Resolution	12-16 bit A/D conversion matrix
Isolation	Channel-to-channel and channel-to-ground isolation
Update Rate	Deterministic scan cycle, software configurable
Diagnostics	Integrated open-circuit and short-circuit verification
Enclosure Rating	IP20 (Cabinet enclosure required)
Certifications	CE, UL, cUL, ATEX compliant

Channel-to-Channel Isolation & Signal Preservation

The FBM2 P0400YC hardware architecture implements physical line-path shielding tailored for 4-20 mA HART loop protocol preservation. Individual analog circuit traces are separated by internal galvanic isolation barriers, neutralizing high-frequency common-mode voltages and preventing parallel ground loop currents from shifting active signal baselines. This layout achieves clean physical signal tracking by eliminating channel-to-channel cross-talk during high-speed, multi-channel execution. Furthermore, the structural design prevents thermal energy variations from modifying low-voltage sensor boundaries, maintaining the reference limits needed for precise cold junction compensation (CJC) execution across adjacent temperature measurement lines.

Frequently Asked Questions

Q: What are the physical constraints when hot-swapping an FBM2 module on an active baseplate?

A: The P0400YC supports live hot-swap replacement. Internal connection traces are staged to ground the frame and energize the internal module logic before the main backplane communication bus makes physical contact, protecting the system from data corruption or bus fluctuations.

Q: How is an input loop open-circuit state handled within the deterministic scan cycle?

A: The local A/D conversion circuit continuously samples the milliamp loop values. If the sensed loop current drops below 3.5 mA, the module triggers an internal diagnostic flag, writing an error word into the data packet sent over the backplane bus during that exact update cycle.

Q: Does the FBM2 module require independent external loop power matching?

A: No. The unit extracts its 24 V DC supply rails directly from the shared system backplane baseplate to drive internal operation and provide loop excitation to connected field transmitters.

Field Installation Guidelines

Cabinet Climate Controls: Install the module inside a protected, vertically vented IP54 or NEMA Type 12 control enclosure. Maintain a minimum horizontal spacing of 50 mm between adjacent module baseplates to facilitate natural convection cooling and prevent thermal degradation.
Shielding Ground Protocol: Signal wire shields must terminate exclusively at the primary system cabinet copper ground bar. To eliminate parasitic circulating ground loops, never ground a single transmitter shield at both the field device housing and the FBM rack assembly.
Cable Pathway Layout: Route all low-voltage 4-20 mA and instrumentation lines inside dedicated, isolated wiring ducts. Ensure a minimum physical clearance of 300 mm from parallel AC distribution buses or high-current motor supply wires to suppress electromagnetic induction.
Conductor Physical Termination: Strip field cables (12-22 AWG specification compatible) to an exact length of 7 mm before insertion into the paired termination assembly block. Secure all screw clamps to standard industrial torque specifications to avoid high contact resistance.
