TSX-MAP-1074 Schneider Modicon TSX Micro Datasheet Technical Manual

Availability: 94 left in stock

Schneider TSX-MAP-1074 Modicon TSX Micro Communication Module The Schneider TSX-MAP-1074, also cataloged as the TSXMAP1074 Modbus Plus Communication Adapter, operates...

SKU: TSXMAP1074

Manufacturer: Schneider
Product No.: TSXMAP1074
Product Type: Modbus Plus Communication Adapters
Product Origin: France
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

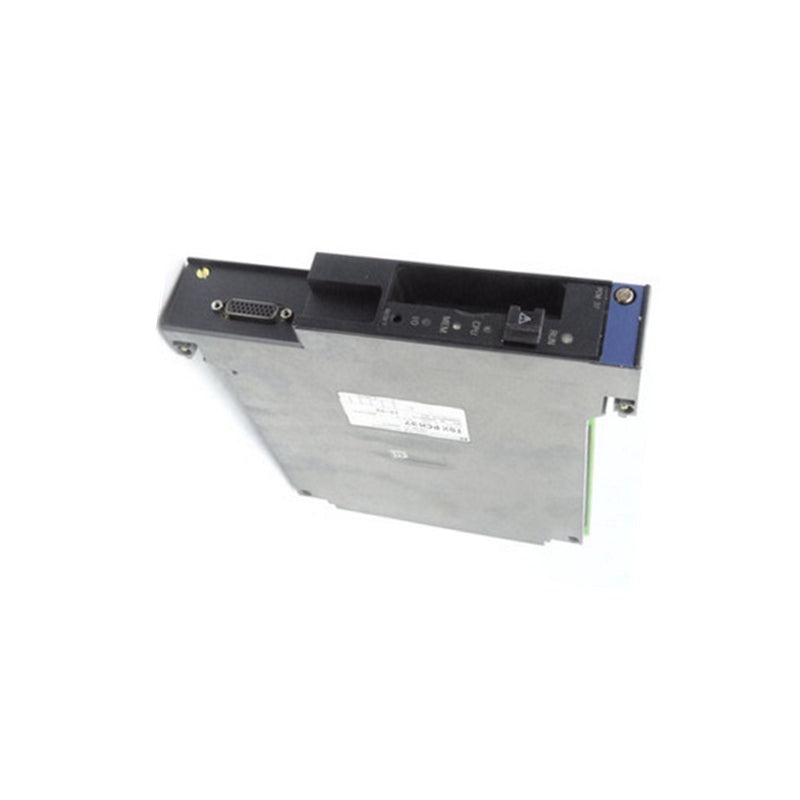

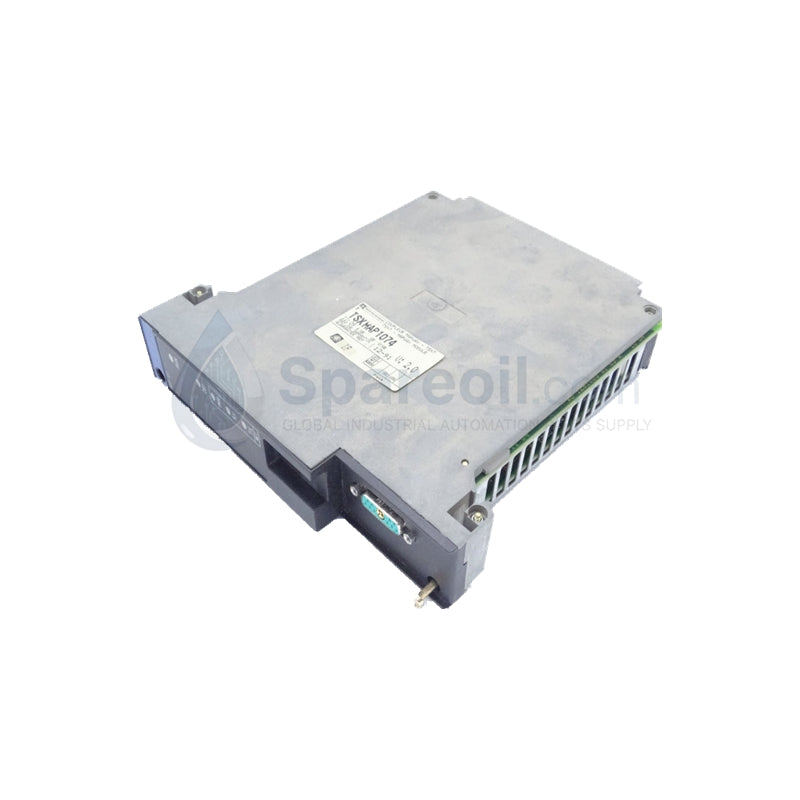

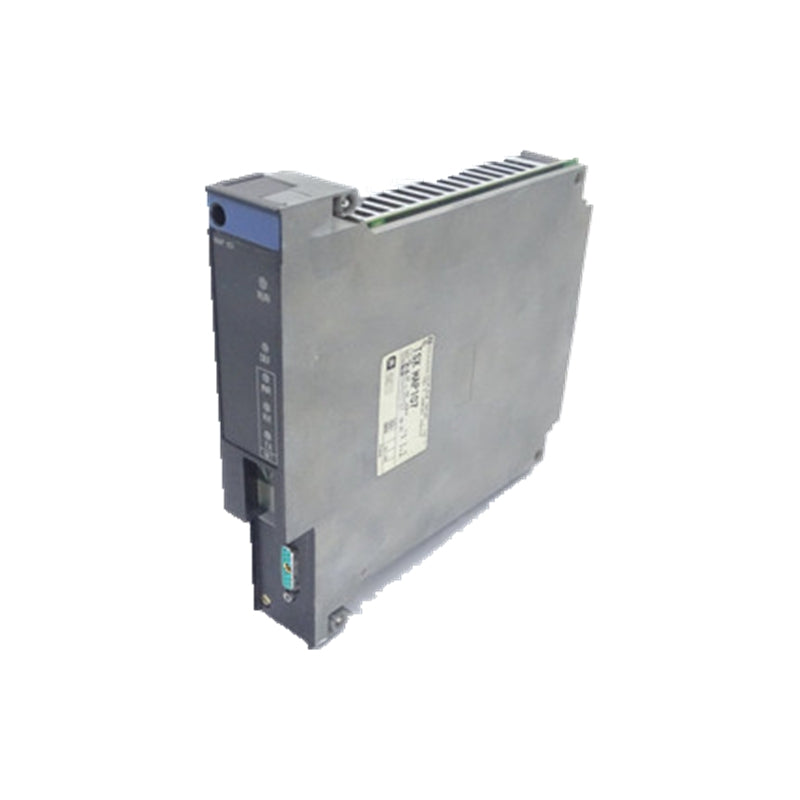

Schneider TSX-MAP-1074 Modicon TSX Micro Communication Module

The Schneider TSX-MAP-1074, also cataloged as the TSXMAP1074 Modbus Plus Communication Adapter, operates as a dedicated hardware component for MAPWAY data link interface management within Modicon TSX Micro PLC systems. The hardware establishes communication synchronization parameters over high-speed networks, allowing the host controller to exchange variables, logic interlocks, and supervisory frames across peer-to-peer or multi-drop architectures. Execution of network physical layers is managed by localized co-processing chips embedded on the plug-in board assembly.

Hardware Specifications

Parameter	Specification
Model	TSX-MAP-1074
Brand	Schneider Electric
Origin	France
Weight	0.30 kg (0.66 lbs) net weight / 1.14 kg (2.51 lbs) shipping weight
Dimensions	120 mm x 40 mm x 90 mm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	Derived from TSX Micro backplane power rails
Network Type	Modbus Plus / MAPWAY
Communication Speed	1 Mbps
Communication Ports	1 x Modbus Plus network connector
Network Topology	Peer-to-peer, multi-drop
Node Capacity	Up to 64 nodes per network segment
Diagnostics	Dedicated LED array for network activity and module status
Protection Class	IP20
Certifications	CE, UL, CSA

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Schneider TSX-MAP-1074 functions inside the modular assembly by translating system variables across the interior architecture under backplane bus communication velocity licenses. Data traffic handling runs deterministically at 1 Mbps using a token-passing mechanism, preventing data collisions across the continuous multi-drop routing path.

When aligning historical networks with modern Profinet / EtherNet/IP deterministic networks via external system bridges, the interface preserves the integrity of localized data packets. This structure supports precise I/O density scaling profiles up to 64 nodes, guaranteeing that high-frequency registry polling sequences maintain sub-millisecond repeatability criteria without degrading internal processing memory buffers.

Frequently Asked Questions

Q: Can the TSX-MAP-1074 module be extracted or inserted into the rack slot while backplane power is active?

A: No. The TSX Micro slot architecture does not feature live insertion protection circuitry. Performing hot-swap actions can generate destructive transient voltage spikes across the data pins, risking physical failure of the internal communication processors.

Q: How does the network logic respond if two nodes are assigned identical addresses on the same segment?

A: Address duplication induces token errors and drops the duplicate nodes offline. The status diagnostics will display error indicators, and communication processing across the affected hardware terminals will be suspended until the rotary address parameters are corrected.

Q: Does this hardware configuration support direct connectivity to Modicon Quantum or M580 backplanes?

A: No. The physical connector spacing and bus line pins are engineered strictly for the Modicon TSX Micro hardware platform. It cannot be inserted or operated inside Quantum or X80 chassis configurations.

Field Installation Guidelines

Disconnect all electrical current loops feeding the primary PLC rack prior to sliding the communication card into its slot.
Slide the plug-in module firmly into the TSX Micro chassis guide until the backplane interface seats entirely into the socket pins.
Lock the integrated mechanical fasteners to ensure electrical continuity with the protective earth terminal of the rack frame.
Wire the Modbus Plus trunk line with specific shielded twisted-pair media, terminating the ends with appropriate 120 Ohm balancing resistors to avoid signal reflection.
Route all data networking cables through metallic wire ways separated from primary AC supply runs by at least 30 cm to suppress magnetic cross-coupling.
