2XV9450-1AR22 Siemens SICLOCK TM Datasheet & Technical Manual

Availability: 99 left in stock

Siemens 2XV9450-1AR22 SICLOCK TM Plant Central Clock The Siemens 2XV9450-1AR22, also cataloged as the SICLOCK TM Plant Central Clock, operates...

SKU: 2XV9450-1AR22

Manufacturer: Siemens
Product No.: 2XV9450-1AR22
Product Type: Plant Central Clocks
Product Origin: Germany
Payment:T/T, Western Union
Weight: 3110g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

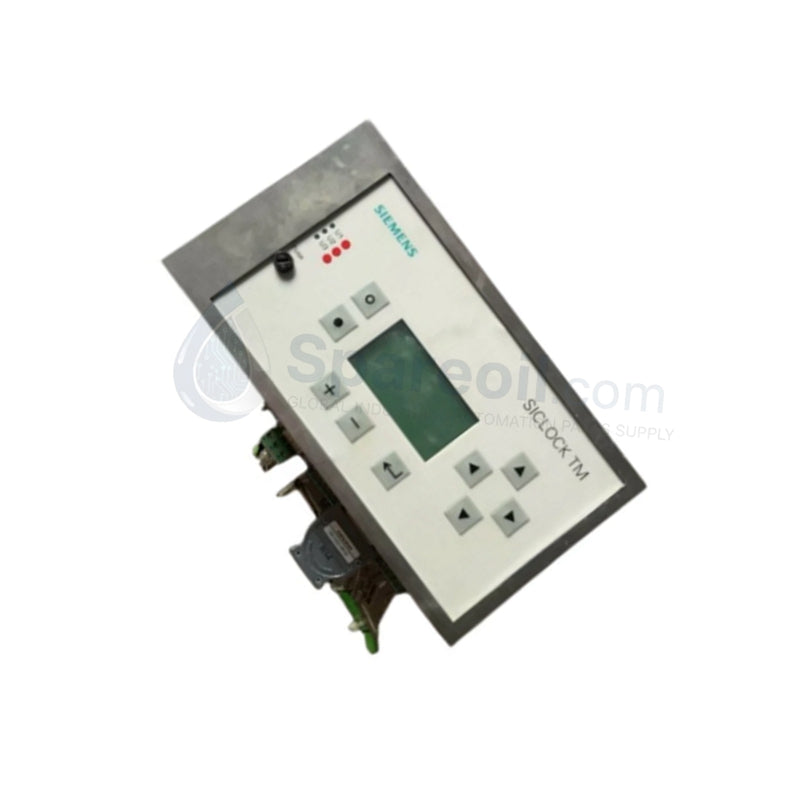

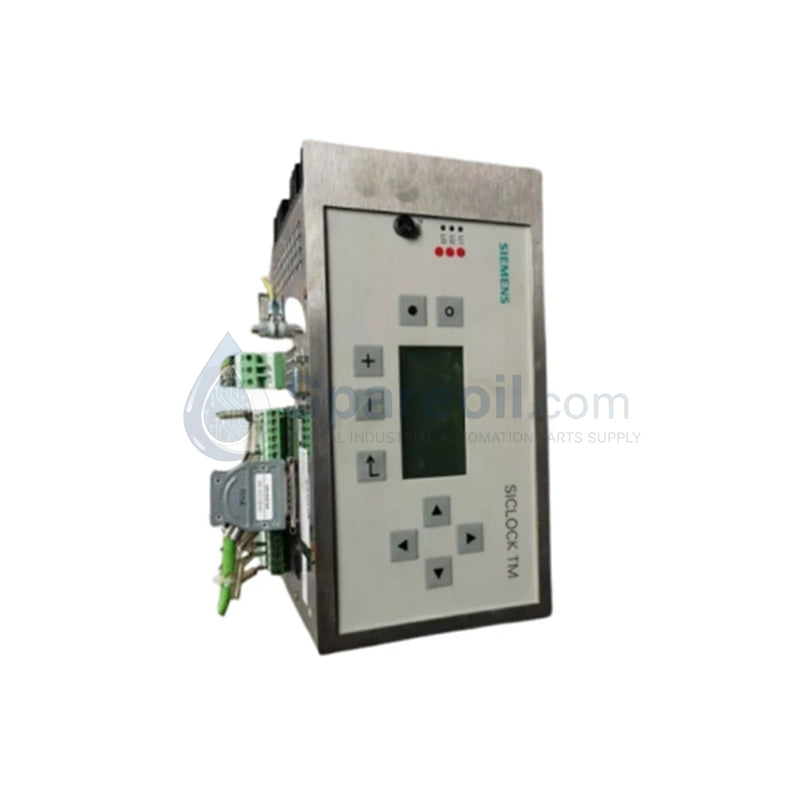

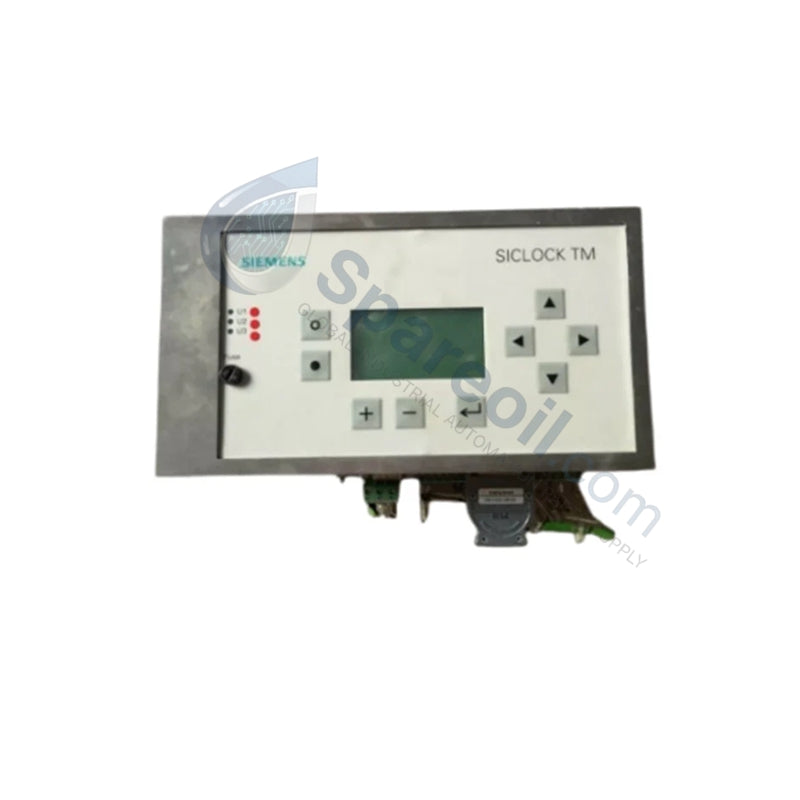

Siemens 2XV9450-1AR22 SICLOCK TM Plant Central Clock

The Siemens 2XV9450-1AR22, also cataloged as the SICLOCK TM Plant Central Clock, operates as a dedicated hardware component for high-precision master time synchronization within plant-wide network architectures.

Technical Note on Model Correction: While certain aftermarket database records erroneously cross-reference this part number with bulk network cabling media, the original Siemens industrial manufacturing ledger registers the 2XV9450-1AR22 strictly as a SICLOCK TM Plant Central Clock assembly. The direct successor hardware is designated under order number 2XV9450-2AR01.

Hardware Specifications

Parameter	Specification
Model	2XV9450-1AR22
Brand	Siemens
Origin	Germany
Weight	3.11 kg (6.86 lbs net)
Dimensions	Standard SICLOCK rack/panel-mount enclosure
Operating Temp	0 deg C to +55 deg C
Power Consumption	Determined by active synchronization pulse distribution loads
Supply Voltage Range	24 V DC to 110 V DC
Device Type	Master Plant Central Clock
Successor Component	2XV9450-2AR01

Profinet / EtherNet/IP Deterministic Networks and Synchronization I/O Density Scaling

The central clock establishes a highly accurate reference time base across distributed industrial networks, emitting synchronized timing pulses or data frames to local controller ranks. By distributing uniform reference stamps, the unit coordinates distributed sequence-of-events recording grids linked across Profinet / EtherNet/IP deterministic networks. This time distribution prevents logic discrepancies among separate PLC nodes, adjusting clock skew limits dynamically across wide I/O density scaling profiles without loading communication processors.

Frequently Asked Questions

Q: How does the 2XV9450-1AR22 handle supply voltage variations within its rated operating range?

A: The internal wide-range power distribution matrix accommodates fluctuating auxiliary supplies from 24 V DC up to 110 V DC. Input voltage variations within this window are regulated inside the internal power stages to maintain continuous oscillator stability.

Q: Can this timing module be hot-swapped while the distribution bus is transmitting synchronization signals?

A: No. The legacy SICLOCK TM hardware architecture does not support live removal. Disconnecting the module under voltage causes immediate signal termination across all connected slave clocks, inducing time-sync faults within dependent SCADA and PLC sub-nodes.

Field Installation Guidelines

Enclosure Mechanical Grounding: Install the module firmly into the designated control cabinet chassis location. Ensure direct metal-to-metal contact between the enclosure frame and the unpainted cabinet grounding busbar to suppress electromagnetic interference.
Synchronization Cable Routing: Route all outgoing pulse and timing signal cables in separate grounded metal conduits, keeping them clear of high-voltage AC motor lines to prevent inductive noise injection into the time signals.
Terminal Voltage Validation: Verify that the supply voltage at the source terminals falls within the 24 V DC to 110 V DC envelope using a digital multimeter before engaging the primary circuit breaker.
