140EHC10500 Schneider Modicon Quantum Datasheet & Technical Manual

Availability: 94 left in stock

Schneider 140EHC10500 Modicon Quantum High-Speed Counter Module Configured for high-speed industrial counting tasks within Modicon Quantum automation platform architectures, the...

SKU: 140EHC10500

Manufacturer: Schneider
Product No.: 140EHC10500
Product Type: High-Speed Counter Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

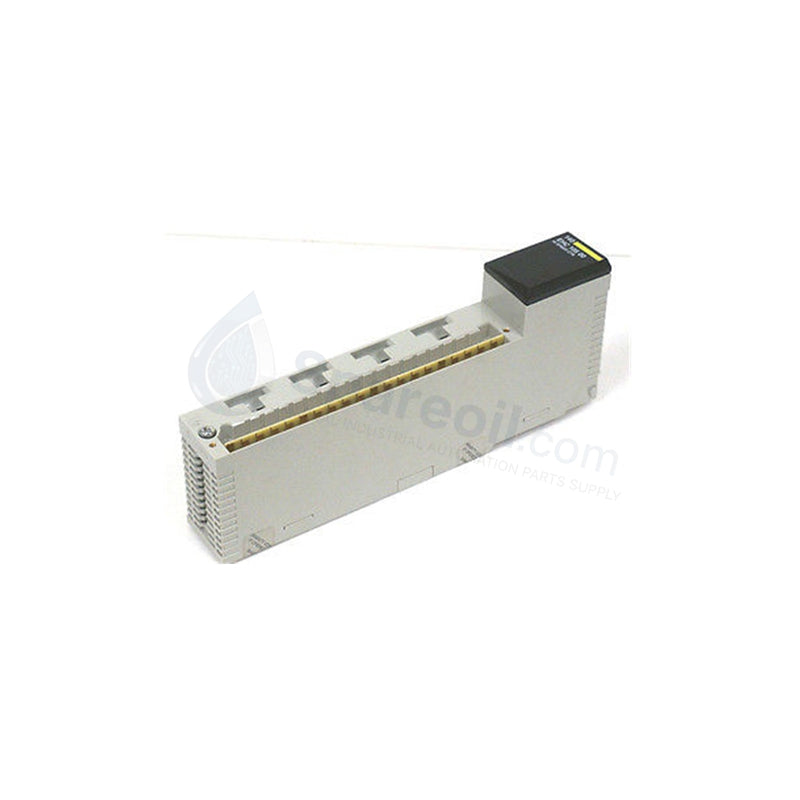

Schneider 140EHC10500 Modicon Quantum High-Speed Counter Module

Configured for high-speed industrial counting tasks within Modicon Quantum automation platform architectures, the Schneider 140EHC10500 (140EHC10500 High-Speed Counter Module) provides direct physical/electrical execution. This standard-format hardware module interfaces discrete field devices with the central processor unit across local, distributed, or remote rack configurations. The device houses 5 independent processing channels alongside 8 dedicated inputs and 8 field effect transistor outputs to manage fast discrete incremental counting sequences up to a maximum frequency of 100000 Hz.

Hardware Specifications

Parameter	Specification
Model	140EHC10500
Brand	Schneider Electric
Origin	USA
Weight	0.40 kg (0.88 lbs)
Dimensions	4.6 cm x 16.0 cm x 31.0 cm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Dissipation	6 W minimum
Bus Current Requirement	250 mA
External Power Requirement	19.2 to 30 VDC
Current Consumption	1140 mA maximum at 24 VDC external supply
Counting Channels	5 channels
Discrete Inputs	8 inputs (Incremental counter type)
Discrete Outputs	8 outputs (Field Effect Transistor)
Max Counting Frequency	100000 Hz
Input Counting Voltage	30 VDC maximum
Counting Input Current	7 mA
Load Current per Output	0.21 A
Isolation Voltage	500 Vrms for 60 s between channels and bus
Relative Humidity	95 % non-condensing
Operating Altitude	Up to 5000 m above sea level
Short-Circuit Protection	Internal

Deterministic Network and Backplane Bus Communications

The Schneider 140EHC10500 high-speed counter utilizes deterministic backplane bus communication velocity licenses to execute ultra-low latency data transfers to the Modicon Quantum controller. The module maps 12 input words and 12 output words into the register memory structure for precise 16-bit or 32-bit tracking.

To maintain strict synchronization over EtherNet/IP and Profinet deterministic networks, the channel hardware processes high-frequency pulses independently from the main CPU scan cycle. This dedicated processing architecture eliminates data jitter, enabling consistent time-stamped registration of fast discrete events across localized and remote I/O sub-assemblies.

Frequently Asked Questions

Q: How does the module indicate short-circuit conditions or loss of external field power?

A: The module tracks fault diagnostics natively. It detects a loss of output field power or an internal short-circuit state, triggering a fault report to the Quantum processor and illuminating the respective channel status LEDs.

Q: Can this module operate without external field power if the backplane bus current is active?

A: No, the backplane connection only provides 250 mA to power the logic side interface. The counting circuitry and FET outputs require an independent 19.2 to 30 VDC external supply to achieve full operational state functionality.

Q: What data formats are accessible within the 12 input register words?

A: The module handles data configuration in two distinct modes. It outputs unsigned 16-bit integers up to 65535 dec, or signed 32-bit double integers up to 2147483647 dec for high-capacity tracking.

Field Installation Guidelines

Verify that all external 24 VDC field power supplies are completely de-energized before inserting or removing the module from the Quantum rack slot.
Mount the module vertically within a local, distributed, or remote rack assembly, ensuring the grounding clips compress securely against the backplane rail.
Terminate high-speed encoder lines using shielded twisted-pair cabling. Connect the cable shield to the chassis ground bar at the enclosure entry point to prevent electromagnetic field corruption.
Maintain separate routing pathways for the 24 VDC pulse input wires and high-voltage AC power distribution circuits to eliminate cross-talk and transient noise induction.
Check that field terminal screw connections match the target wire gauge and are torqued correctly to prevent signal discontinuity under industrial vibration conditions.
