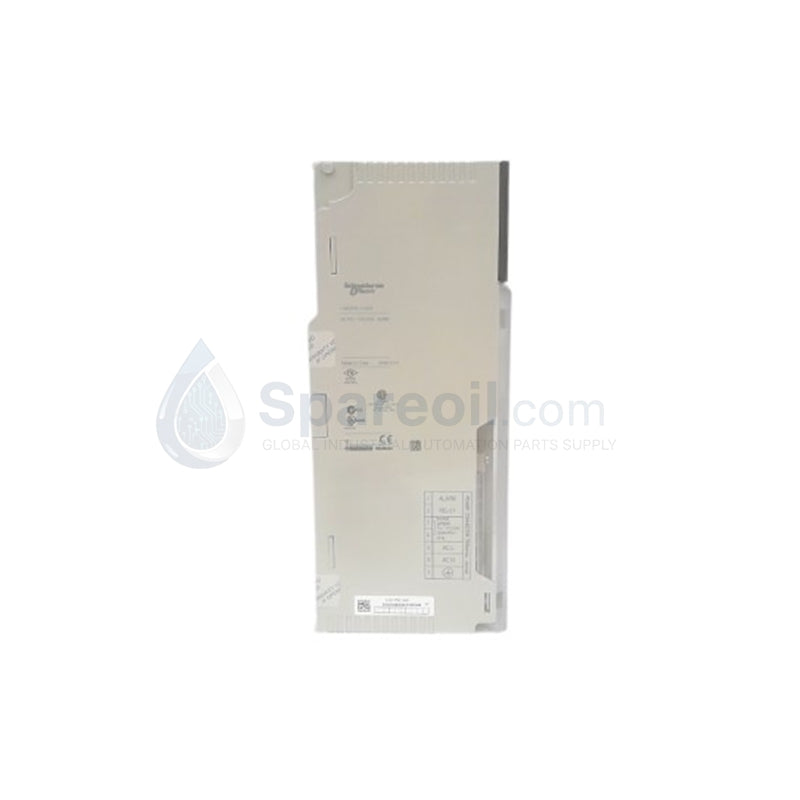

140CRP31200 Schneider Remote I/O Head Module

140CRP31200 Schneider Remote I/O Head Module | New & Original Stock

Availability: 94 left in stock

Schneider 140CRP31200 Modicon Quantum Remote I/O Head Module Configured for distributed I/O management in Modicon Quantum networks, the Schneider 140CRP31200...

SKU: 140CRP31200

Manufacturer: Schneider
Product No.: 140CRP31200
Product Type: Remote I/O Head Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Schneider 140CRP31200 Modicon Quantum Remote I/O Head Module

Configured for distributed I/O management in Modicon Quantum networks, the Schneider 140CRP31200 (140CRP31200 Remote I/O Head Module) provides direct physical/electrical execution. The module resides in the local processor rack to establish deterministic communication and data synchronization across distributed or remote I/O sub-assemblies. Operating via a 4-port infrastructure supporting coaxial S908 and Ethernet IP/Modbus TCP protocols, the hardware coordinates real-time register updates and state execution for up to 31 remote drops over a daisy chain loop topology.

Hardware Specifications

Parameter	Specification
Model	140CRP31200
Brand	Schneider Electric
Origin	France
Weight	0.91 kg (2.00 lbs)
Dimensions	398 mm x 41 mm x 152 mm (Approximate: 6.6 in x 2 in frame footprint)
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Consumption	750 mA maximum at 5 VDC backplane reference
Interface Ports	4 ports
Communication Protocols	S908 Bus, Ethernet IP, Modbus TCP
Network Topology	Daisy chain loop / Star configuration
Maximum Remote Drops	31 drops
Physical Media	Coaxial / Twisted-pair copper
Protection Class	IP20
Local Signalling	LED indicators for channel and link status

Deterministic Network and Backplane Bus Communications

The Schneider 140CRP31200 remote I/O head utilizes a high-velocity backplane interface matching standard backplane bus communication velocity licenses. This design permits data blocks from the remote drops to transfer into the central CPU register allocation table without introducing software jitter.

By maintaining synchronization over Profinet / EtherNet/IP deterministic networks, the module executes precise token-passing cycles across the physical layer. The internal communication processor manages multi-drop scan intervals independently from the main ladder logic execution cycle, which enforces rigid I/O density scaling limits and maintains sub-millisecond response consistency over long-distance remote segments.

Frequently Asked Questions

Q: Does the 140CRP31200 support online hot-swap operations within a live local rack?

A: No. Removing or inserting the RIO head module while the backplane power bus is energized disrupts token passing and causes an immediate RIO processor loss fault, tripping all downstream remote drops into their configured fail-safe states.

Q: What are the cable grounding requirements for the 4 physical network ports?

A: The coaxial or Ethernet shielding paths must link directly to the chassis ground via the outer shield connectors of the module. Improper grounding on long-distance daisy chain loops creates ground loops that attenuate data packets.

Q: How does the hardware maintain deterministic tracking when a remote drop suffers a power failure?

A: The module flags the specific drop status register as unhealthy on the backplane bus within one scan cycle while continuing to execute token cycles with the remaining active drops on the network.

Field Installation Guidelines

Isolate the main chassis power supply before sliding the module into its designated slot on the Modicon Quantum rack backplane.
Seat the hardware completely into the rear connector and tighten the top and bottom screw fasteners to ensure mechanical stability during high-vibration conditions.
Terminate all unused coaxial or RJ45 communications ports with matching characteristic impedance plugs to eliminate signal reflections.
Track minimum bend radius limitations for the interconnecting network media within the enclosure wire ducts to prevent high-frequency attenuation.
Verify that the local drop address switches on the remote sub-assemblies match the scan table parameters defined in the processor hardware configuration before initiating system boot.
