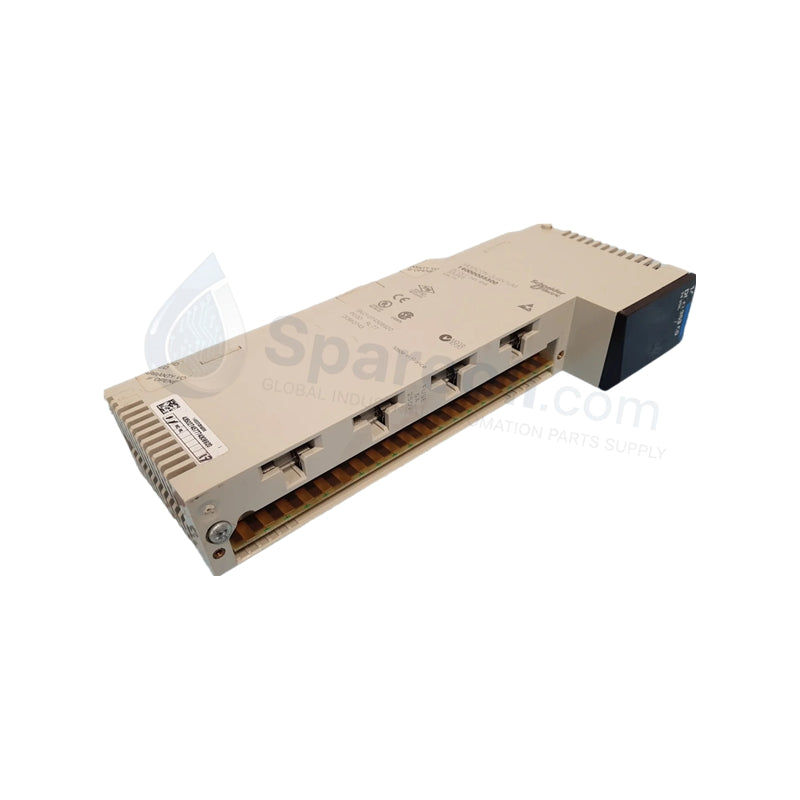

Schneider 140CRP81100 Electric Remote Head

Schneider 140CRP81100 Electric Remote Head | New & Original Stock

Availability: 94 left in stock

Schneider Electric 140CRP81100 Modicon Quantum Series Configured for communication and control for distributed I/O racks via the S908 bus in...

SKU: 140CRP81100

Manufacturer: Schneider
Product No.: 140CRP81100
Product Type: Remote I/O Head Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Schneider Electric 140CRP81100 Modicon Quantum Series

Configured for communication and control for distributed I/O racks via the S908 bus in Quantum PLC systems, the Schneider Electric 140CRP81100 (140CRP81100 Remote I/O Head Module) provides direct physical/electrical execution. This hardware unit manages up to 31 remote drops over dedicated coaxial medium links, transferring continuous register data maps directly between the host backplane and external drops without protocol translational overhead.

Hardware Specifications

Parameter	Specification
Model	140CRP81100
Brand	Schneider Electric
Origin	France
Weight	1.2 to 1.5 kg
Dimensions	398 mm x 41 mm x 152 mm
Operating Temp	0 to +60 deg C
Power Consumption	24 VDC nominal internal backplane draw
Network Type	S908 Remote I/O bus
Data Rate	10 Mbps
Cable Type	Coaxial cable
Maximum Drops	31 remote I/O drops
Storage Temperature	-40 to +85 deg C
Protection Class	IP20
Certifications	CE, UL, CSA, RoHS

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The 140CRP81100 operates across specialized sub-networks, defining physical limits that coordinate with localized Profinet / EtherNet/IP deterministic networks via bridging architectures. The module maintains a raw 10 Mbps transmission frame velocity across the S908 bus, maintaining fixed determinism during large-scale I/O density scaling routines. This specialized data structure prevents collision states and ensures synchronous scanning intervals for all 31 supported remote drops connected to the primary control loop.

Frequently Asked Questions

Q: Is hot-swapping of the 140CRP81100 supported while the S908 bus network is executing active communication?

A: No. Modicon Quantum backplane specifications dictate that the module chassis must be completely de-energized prior to component insertion or extraction. Removing the head module while operational will break the S908 network loop, causing immediate communication failure across all distributed drops.

Q: Does the 140CRP81100 require specialized firmware flash compatibility verification when transitioning an existing rack to an Ethernet adapter bridge?

A: Yes. The module is strictly bound to the hardware version constraints of the main processor. Upgrading or linking this legacy coaxial network layout to newer Ethernet configurations requires precise firmware flash compatibility verification to maintain synchronous register mapping.

Q: How does a cable impedance mismatch affect the 10 Mbps data rate of this card?

A: The S908 bus relies on exact coaxial termination metrics. Impedance deviations caused by poor connections or missing termination resistors generate signal reflections, which lead to high cyclic redundancy check (CRC) errors and dropping drops.

Field Installation Guidelines

Chassis Attachment: Position the module guides into the Quantum backplane slot, slide the unit back until the bus pins engage smoothly, and tighten the integrated mounting screws to complete the mechanical grounding assembly.
Coaxial Network Cabling: Terminate the S908 network utilizing industrial coaxial cabling cut to standard parameters. Ensure that both physical ends of the trunk segment use matching 75 Ohm termination blocks to eliminate signal reflections.
Separation Constraints: Route all S908 network cables inside dedicated low-voltage channels. Do not lace the coaxial lines adjacent to high-current AC power wiring or variable frequency drive cables to avoid electromagnetic coupling issues.
