BMXFTB2020 Schneider Modicon X80 Datasheet & Technical Manual

Availability: 94 left in stock

Schneider BMXFTB2020 Modicon X80 Terminal Block Configured for discrete I/O module field wiring termination in Modicon M340 and M580 platforms,...

SKU: BMXFTB2020

Manufacturer: Schneider
Product No.: BMXFTB2020
Product Type: Digital I/O Cards
Product Origin: France
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

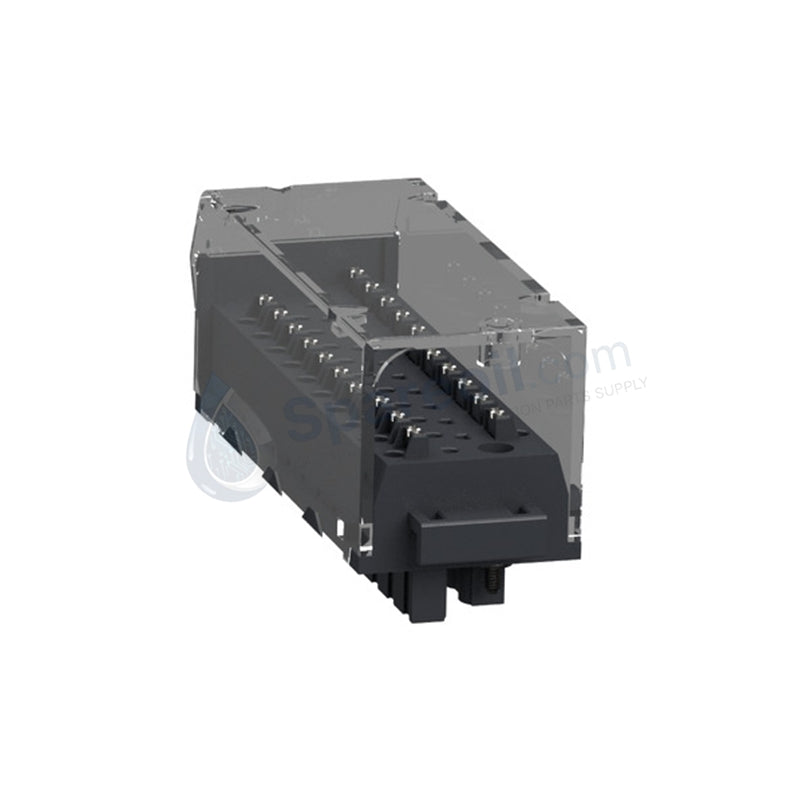

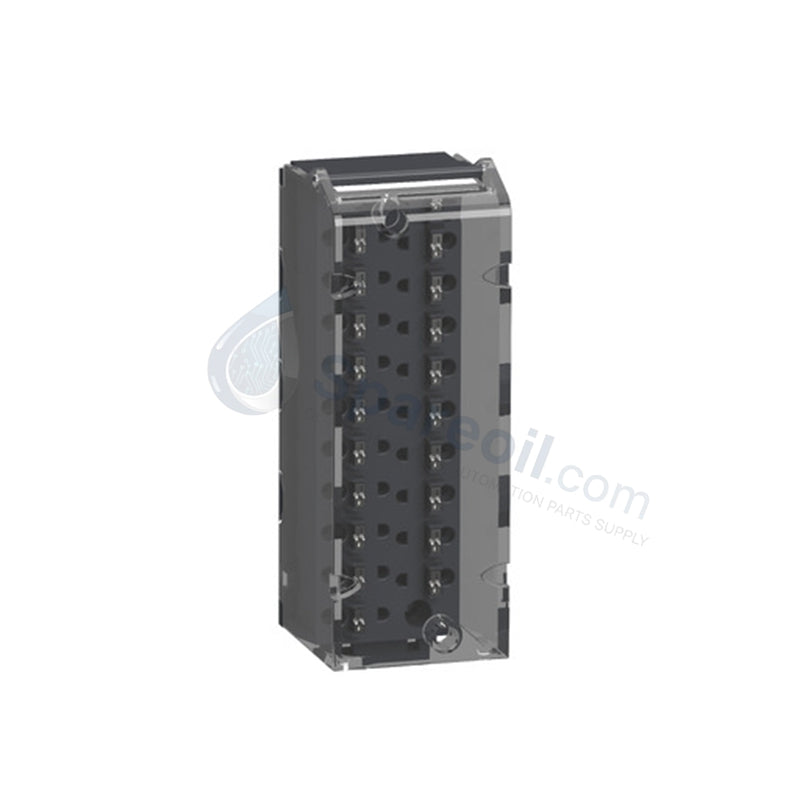

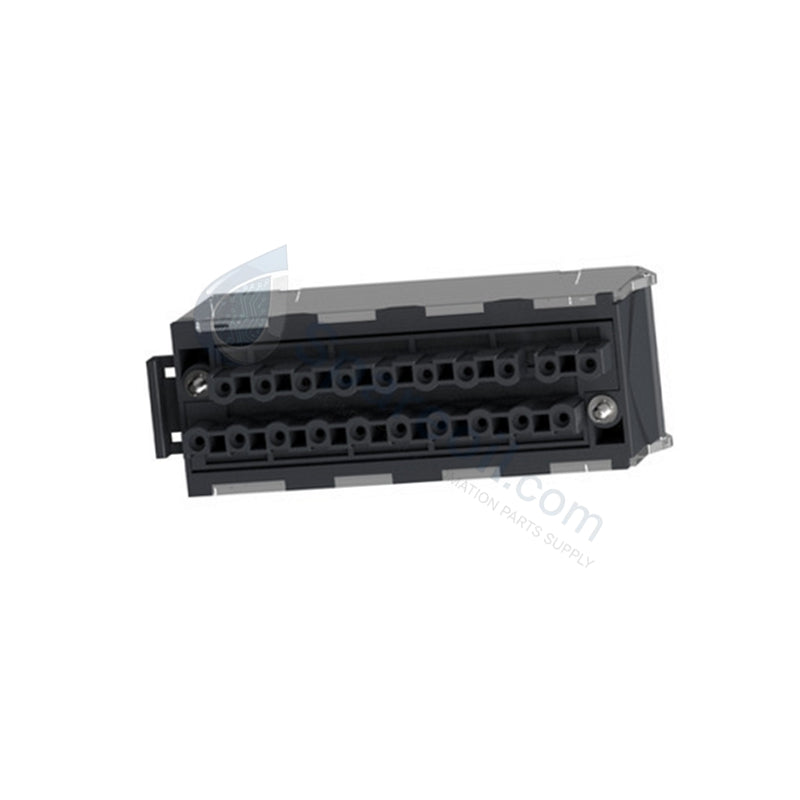

Schneider BMXFTB2020 Modicon X80 Terminal Block

Configured for discrete I/O module field wiring termination in Modicon M340 and M580 platforms, the Schneider BMXFTB2020 (BMXFTB2020 Terminal Block) provides direct physical/electrical execution. The accessory acts as the physical bridge between field instrument conductors and the internal optical isolation layers of the host module. By establishing low-resistance contact pathways across a localized grid, the component secures current transmission tracks for binary sensor feeds and actuator control lines.

Hardware Specifications

Parameter	Specification
Model	BMXFTB2020
Brand	Schneider Electric
Origin	France
Weight	0.10 to 0.20 kg (0.22 to 0.44 lbs)
Dimensions	32 mm x 119 mm x 40 mm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	Passive component (0 mA backplane power draw)
Number of Terminals	20 connection points
Connection Type	Screw-clamp terminals
Wire Size Supported	0.25 to 2.5 mm² (AWG 24 to AWG 14)
Mounting Method	Direct plug-in to X80 I/O module front face
Platform Compatibility	Modicon X80 I/O (BMXDDI and BMXDDO series)
Protection Class	IP20
Certifications	CE, UL, CSA, RoHS

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Schneider BMXFTB2020 performs purely passive electrical distribution, mapping 20 distinct termination points directly to the matching pin matrix of an X80 discrete module without introducing processing latency or altering backplane bus communication velocity licenses. The screw-clamp arrangement holds the raw electrical loops firmly in place, preserving signal consistency under conditions of physical vibration.

When deployed inside remote drop panels governed by Profinet / EtherNet/IP deterministic networks, this connection format supports predictable I/O density scaling profiles. By organizing up to 16 discrete channels along with their associated common return paths within a single 32 mm housing envelope, the assembly prevents signal crosstalk or terminal degradation from corrupting the high-frequency packet tracking loops monitored by the central processor.

Frequently Asked Questions

Q: Can the BMXFTB2020 be unlatched and removed from the front of the I/O module while field circuits are energized?

A: Removing the terminal block under electrical load is not recommended. Doing so can cause inductive arcing across the connection pins, which risks degrading the contacts or triggering unexpected state transitions in active field actuators.

Q: What structural issues result from over-tightening the screw clamps beyond the rated specification?

A: Applying excessive torque can deform the internal metal cage assembly or strip the terminal thread tracks. This damage degrades mechanical clamping force, creating high-resistance boundaries that can lead to localized thermal issues or intermittent open-circuit signal faults.

Q: Does this specific terminal block support direct connection to X80 analog input or thermocouple modules?

A: No. The BMXFTB2020 is designed for discrete modules such as the BMXDDI and BMXDDO series. Analog modules require alternative terminal blocks that feature integrated cold junction compensation (CJC) thermistors or specialized shielding bars to prevent signal measurement drift.

Field Installation Guidelines

De-energize all external power loops and field supplies connected to the terminal assembly before starting the wiring configuration.
Strip insulation from the field wire ends to the specified length, ensuring no loose conductor strands remain outside the clamp block cage.
Secure each wire into its assigned screw clamp terminal, keeping wire sizes within the 0.25 to 2.5 mm² (AWG 24 to AWG 14) operating limits.
Align the wired terminal block with the front face connectors of the destination X80 discrete module and push inward until the mechanical retention clips latch fully into place.
Route the resulting wiring bundle downward through the enclosure ducting, maintaining at least 30 cm of separation from high-voltage AC mains or motor control wiring to minimize electromagnetic noise coupling.
