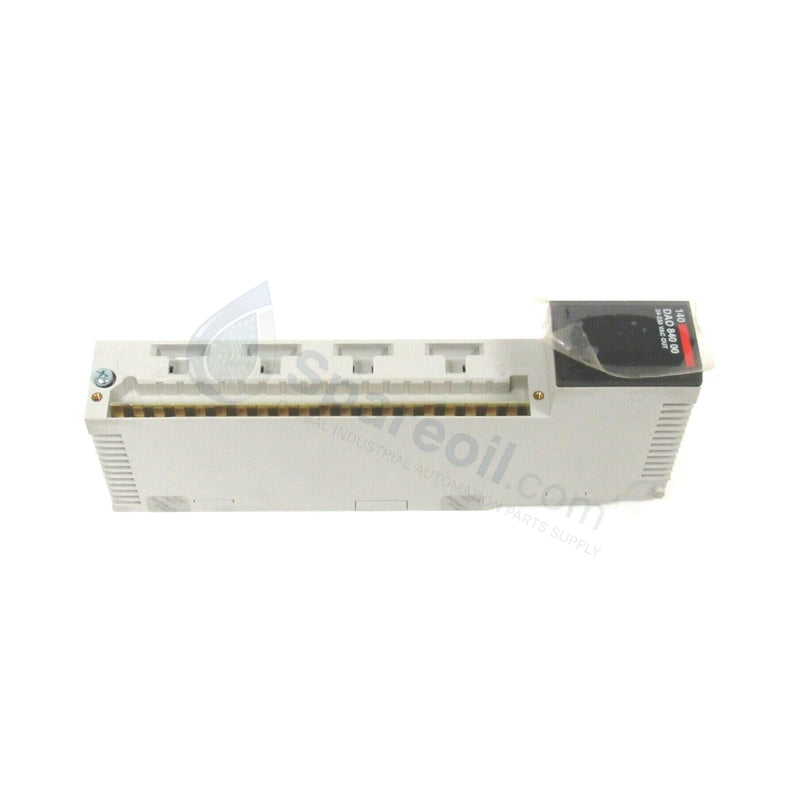

140DAO84000 Schneider Electric Discrete Output

140DAO84000 Schneider Electric Discrete Output | New & Original Stock

Availability: 94 left in stock

Schneider Electric 140DAO84000 Modicon Quantum Series The Schneider Electric 140DAO84000 serves as the primary 140DAO84000 Discrete Output Module utilized to...

SKU: 140DAO84000

Manufacturer: Schneider
Product No.: 140DAO84000
Product Type: Discrete Output Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Schneider Electric 140DAO84000 Modicon Quantum Series

The Schneider Electric 140DAO84000 serves as the primary 140DAO84000 Discrete Output Module utilized to execute high-density AC switching tasks across Modicon Quantum Series platforms. Configured with 16 fully isolated channels, the hardware routes discrete alternating current actuation logic directly from the controller backplane to field-level loads, processing electrical transitions within specific frequency thresholds without external current loop drivers.

Hardware Specifications

Parameter	Specification
Model	140DAO84000
Brand	Schneider Electric
Origin	France
Weight	0.91 kg (2.00 lbs)
Dimensions	398 mm x 41 mm x 152 mm
Operating Temp	0 to 60 deg C
Power Consumption	24 VDC nominal internal backplane draw
Number of Channels	16 Channels (Isolated 16 x 1)
Output Type	Discrete Outputs (AC switching)
Discrete Output Voltage	20 to 253 VAC
Supply Frequency	47-63 Hz
Maximum Voltage Drop	1.5 V
DV/dt Rating	400 V/rms
Absolute Maximum Output	300 Vrms at 10 s AC, 400 Vrms at 1 Cycle AC
Storage Temperature	-40 to 85 deg C
Maximum Relative Humidity	95% Without Condensation
Certifications	CE, UL, CSA, RoHS

Profinet / EtherNet/IP Deterministic Networks Integration

The 140DAO84000 hardware architecture parameters are designed to maintain synchronization when linked through communication adapters to Profinet / EtherNet/IP deterministic networks. The internal solid-state triac components process discrete output commands within full AC cycle intervals, balancing I/O density scaling against network packet latency limits. This arrangement suppresses signal jitter during massive simultaneous channel execution loops, keeping the data bus performance bound to deterministic timing constraints across large-scale distributed architectures.

Frequently Asked Questions

Q: Does the 140DAO84000 module support the extraction or insertion of hardware components under active backplane bus execution?

A: No. The Modicon Quantum chassis topology requires the system to be entirely de-energized prior to hardware exchange. Attempting to hot-swap this module during active communication loops will disrupt the deterministic bus clock and can cause structural damage to the backplane connectors due to active AC current loops on field wiring.

Q: How do the isolated channel boundaries handle independent voltage potentials?

A: The module is engineered with a 16 x 1 configuration, providing galvanic separation for each of the 16 channels. This design enables the hardware to interface with different AC voltage sources and phases across individual channels up to the maximum 253 VAC specification without cross-talk or internal short circuits.

Q: What are the consequences of exposing the output channels to inductive loads exceeding the DV/dt rating?

A: Exposing the internal triac components to electrical transients above the 400 V/rms DV/dt rating can result in unintended conduction states or permanent failure of the solid-state switches. External suppression blocks are required for highly inductive circuits to clamp reactive voltage spikes.

Field Installation Guidelines

Chassis Orientation and Alignment: Incline the module and seat the physical guides into the lower rail slot of the Modicon Quantum rack. Pivot the hardware backward until the backplane connector locks into the bus line, then torque the retention screws to maintain mechanical integrity under continuous vibration profiles.
Cabinet Environment Controls: Enclose the rack assembly in an IP20 industrial control cabinet free of conductive particulate contamination and dripping water. Ensure that internal cabinet air circulation maintains the operating temperature below the 60 deg C threshold under full operational current loads.
AC Field Wiring Layout: Maintain distinct physical isolation between the 20-253 VAC field distribution wiring bundles and any adjacent low-voltage DC communication or network infrastructure cables. Use appropriate wire gauges rated for the aggregate thermal limits of the field loads to mitigate hazardous temperature deviations inside wire ducts.
