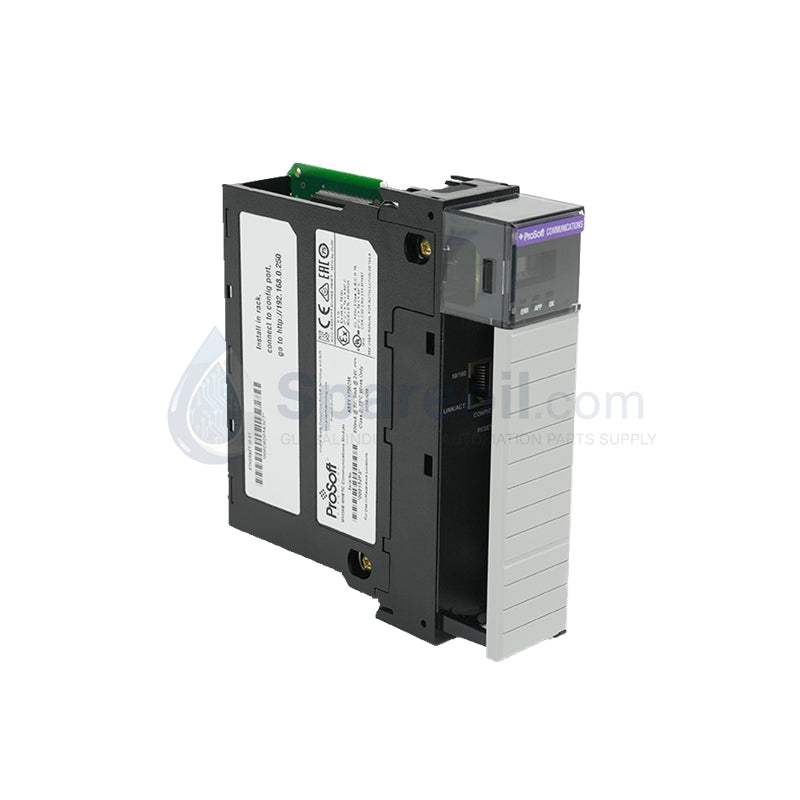

MVI56E-MNETC ProSoft ControlLogix Series Datasheet & Technical Manual

Availability: 99 left in stock

ProSoft MVI56E-MNETC ControlLogix Modbus TCP/IP Enhanced Communication Module Configured for high-throughput data exchange between ControlLogix processors and Modbus TCP/IP networks,...

SKU: MVI56E-MNETC

Manufacturer: PROSOFT
Product No.: MVI56E-MNETC
Product Type: Modbus Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

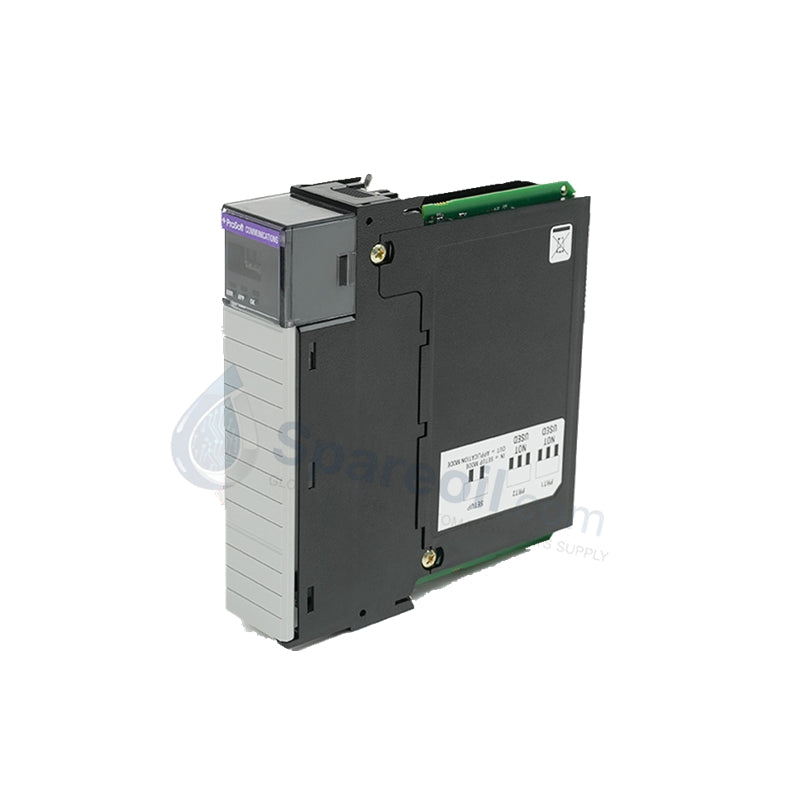

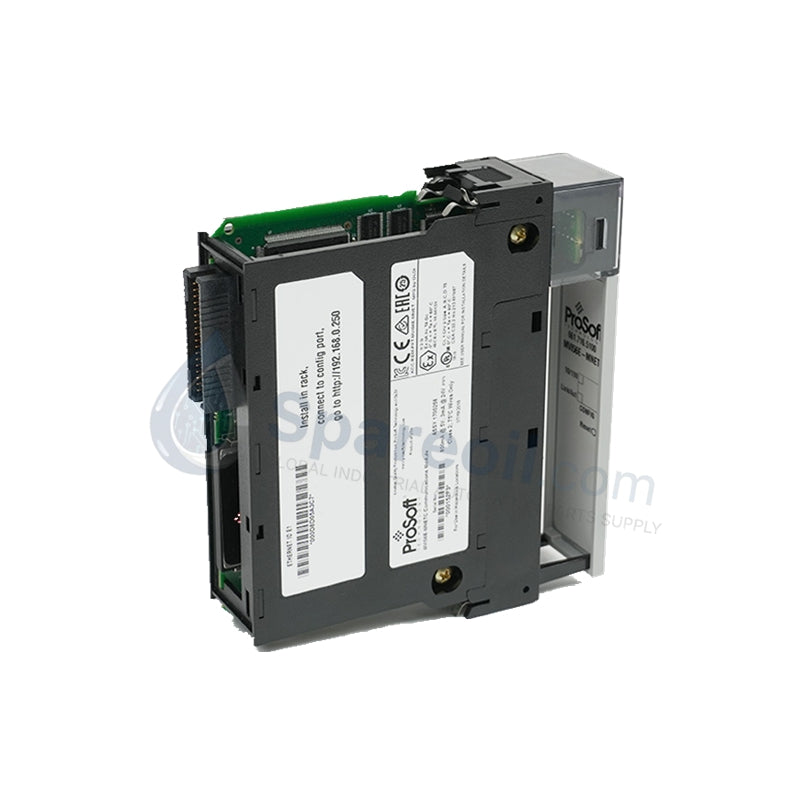

ProSoft MVI56E-MNETC ControlLogix Modbus TCP/IP Enhanced Communication Module

Configured for high-throughput data exchange between ControlLogix processors and Modbus TCP/IP networks, the ProSoft MVI56E-MNETC, also cataloged as the MVI56E-MNETC Enhanced Network Interface Module, provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	MVI56E-MNETC
Brand	ProSoft Technology (Belden ProSoft)
Origin	United States
Weight	0.25 kg (1.00 lbs)
Dimensions	3.5 cm x 14.0 cm x 14.5 cm (Single-slot occupancy)
Operating Temp	0 deg C to 60 deg C (32 deg F to 140 deg F)
Storage Temp	-40 deg C to 85 deg C (-40 deg F to 185 deg F)
Relative Humidity	5% to 95% (non-condensing)
Power Consumption	Backplane powered, 800 mA @ 5 VDC / 3 mA @ 24 VDC
Ethernet Ports	Dual 10/100 Mbps base-T RJ45 connectors
Memory Capacity	10,000 words (16-bit registers)
Tariff Code	8537101190

Protocol Conversion Latencies & Network Performance

The module executes concurrent Client and Server operations across local or remote 1756 ControlLogix backplanes. The network interface supports up to 30 simultaneous Client connections and processes up to 100 independent Client commands, transmitting Modbus packets mapped straight into the 10,000-word internal database memory.

Integrating dual 10/100 Mbps Ethernet ports allows network segmentation or device-level architecture partitioning, isolating configuration tracking from active automation control. The internal execution engine handles protocol conversion latencies through optimized data block transfers, converting Modbus TCP/IP registers directly into native processor I/O data tables.

Frequently Asked Questions

Q: Does the MVI56E-MNETC module support Remove and Insert Under Power (RIUP) actions? A: Yes. The internal hardware components match standard 1756 chassis bus parameters, enabling hot-swap extraction and insertion while the slot is energized. However, disconnecting the module drops all active Modbus TCP/IP Client/Server sockets instantly.

Q: Can the dual Ethernet ports be configured for a redundant Ring topology? A: No. The two RJ45 ports provide independent IP routing structures designed for network segmentation (e.g., separating plant network access from local instrumentation loops). They do not serve as an integrated Device Level Ring (DLR) switch.

Q: How are configurations preserved if the module loses power? A: Configuration variables and command maps are stored in non-volatile flash memory inside the module. Backplane parameter setups and the Add-On Instruction (AOI) loaded in the RSLogix 5000 v16+ runtime automatically restore mapping tables during startup.

Field Installation Guidelines

Chassis Alignment: Slide the module firmly into any single available slot of a grounded 1756 ControlLogix chassis. Verify the mechanical locking tabs at the top and bottom snap fully into place to maintain physical backplane bus contact.
Shielded Network Cabling: Utilize Category 5e or higher shielded twisted-pair (STP) Ethernet cabling for all network lines. Ground the cable shields at the switch infrastructure to isolate the internal communications logic from industrial electromagnetic interference (EMI).
IP Address Allocation: Configure distinct static IP addresses for each utilized Ethernet port via the ProSoft Configuration Builder utility. Avoid assigning matching subnets to both ports to prevent local routing tables from conflicting.
