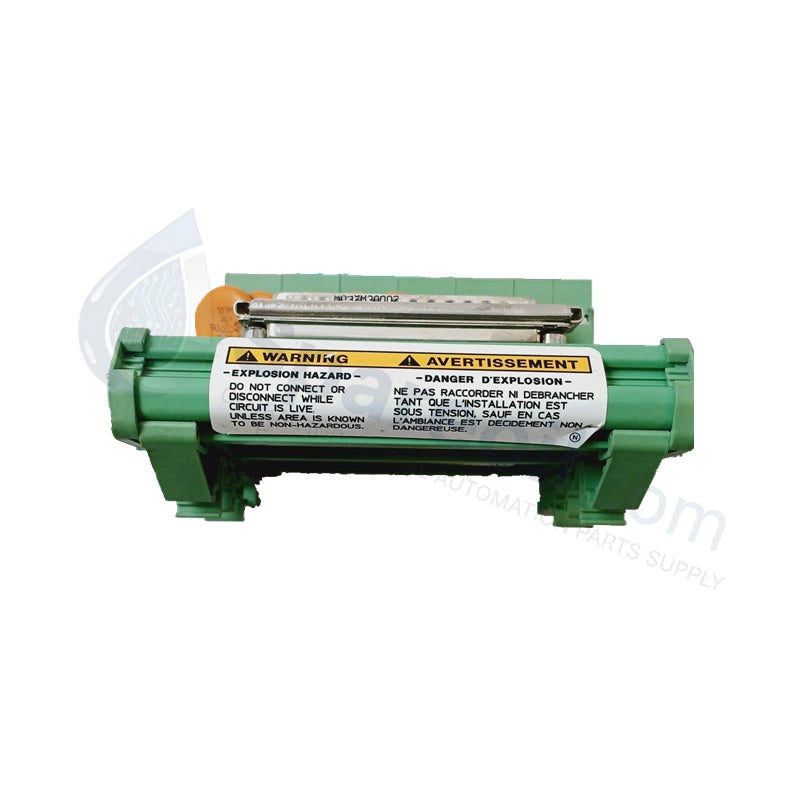

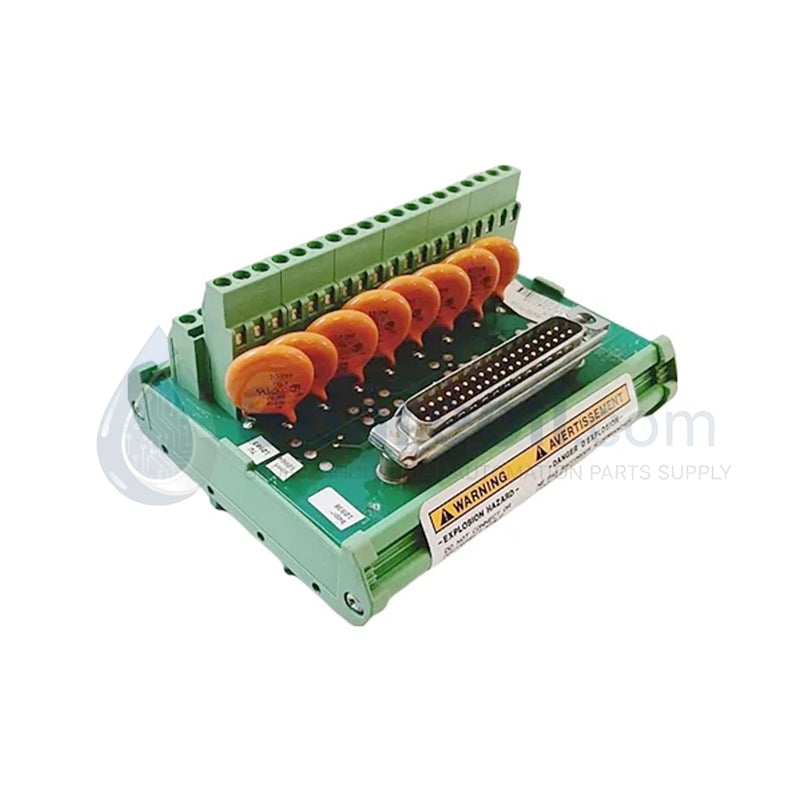

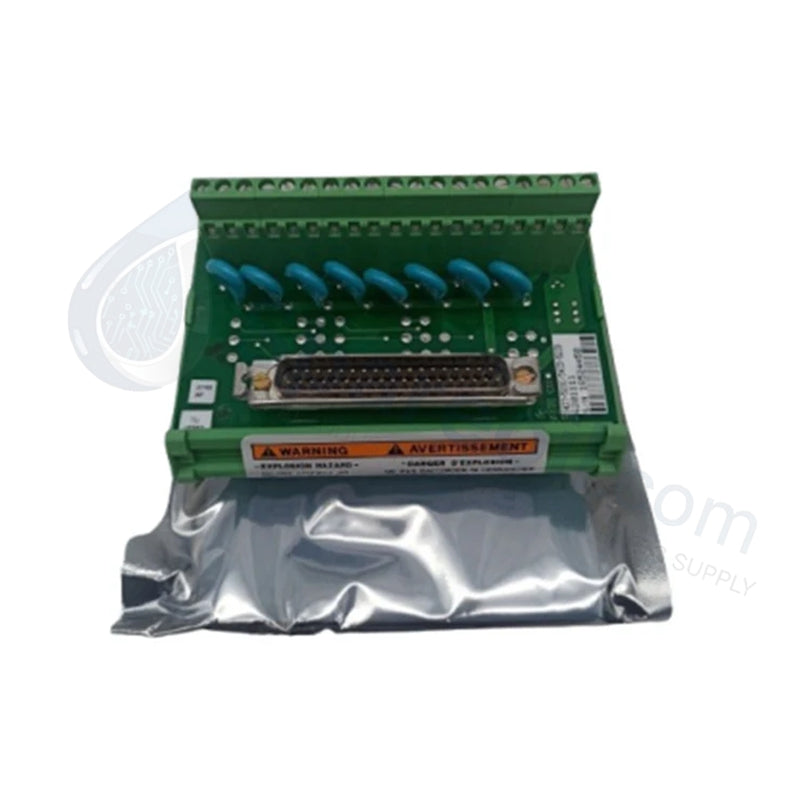

Woodward 5437-523 MicroNet Plus Analog Field Terminal Module

The Woodward 5437-523, also cataloged as the 5437-523 Analog Field Terminal Module (FTM), operates as a dedicated hardware component for conditioning and routing analog signals within MicroNet Plus platforms.

Hardware Specifications

Parameter Specification
Model 5437-523 (Revision C)
Brand Woodward
Origin USA
Weight 0.28 kg (0.62 lbs)
Dimensions Standard Woodward MicroNet Plus FTM footprint
Operating Temp -30 to +70 deg C
Power Consumption Passive pass-through bus design
Channel Count 16 Independent Analog Inputs
Interface Connector 37-Pin Sub-D Connector
Termination Type High-density screw clamp terminals
Input Compatibility 4-20 mA current loops, 0-10 V voltage signals
Isolation Voltage 1500 VDC (Channel-to-system)
Measurement Accuracy +/-0.1% typical (Full Scale)
Vibration Resistance 7 g RMS (10-500 Hz)
Certifications ATEX Cat 3, DNV-GL, API 670 compliant

Industrial Drives, Governors, and Speed Control Properties

The 16-channel interface translates physical sensor variables directly into the micro-processing backplane, processing inputs from pressure transmitters, temperature probes, and position feedback devices. The internal layout dictates the actuator loop feedback response by stabilizing 4-20 mA current loops and 0-10 V voltage signals against electromagnetic interference. To counteract severe high-frequency voltage fluctuations generated by heavy-duty generator networks, the hardware establishes 1500 VDC channel-to-system isolation barriers. This continuous isolation matrix prevents structural ground loop currents from injecting electrical noise into the central processing core, which stabilizes the governing firmware calculations.

Frequently Asked Questions

Q: How does the 5437-523 manage high mechanical stress on turbine-skid installations? A: The module is certified to withstand continuous mechanical vibration stresses up to 7 g RMS across a frequency range of 10 Hz to 500 Hz. This vibration resistance prevents wire fatigue and maintains mechanical integrity at the terminal blocks.

Q: What physical interface parameters connect this field terminal module to the primary I/O board? A: The module features an integrated 37-pin sub-D connector on the chassis rear. This multi-pin interface transfers the conditioned 16-channel analog signals to the corresponding MicroNet Plus I/O module via matching system cables.

Q: Is this terminal module field-swappable while the main control panel remains under power? A: Yes, because the field terminal module operates as a passive routing component, field wires can be disconnected from the screw clamp terminals without disrupting active internal backplane bus communications, provided standard industrial safety barriers are followed.

Field Installation Guidelines

  • Shielding Terminations and Routing: Connect all external 4-20 mA loop shields to the designated chassis grounding strip. Keep signal paths independent from motor drive outputs and high-amperage lines to ensure the +/-0.1% measurement accuracy remains uncompromised by inductive cross-talk.
  • Terminal Screw Tensioning: Secure field sensor conductors using the high-density screw clamp terminals. Tighten all connection points to standard panel specification ratings to avoid intermittent signals and high-resistance joints under high-vibration conditions.
  • Environmental Clearance Requirements: Ensure the panel installation satisfies ATEX Cat 3 and API 670 hazardous area guidelines. Mount the unit inside an enclosure that maintains ambient conditions within the -30 to +70 deg C parameters and preserves clean air movement across the 37-pin sub-D junction.
