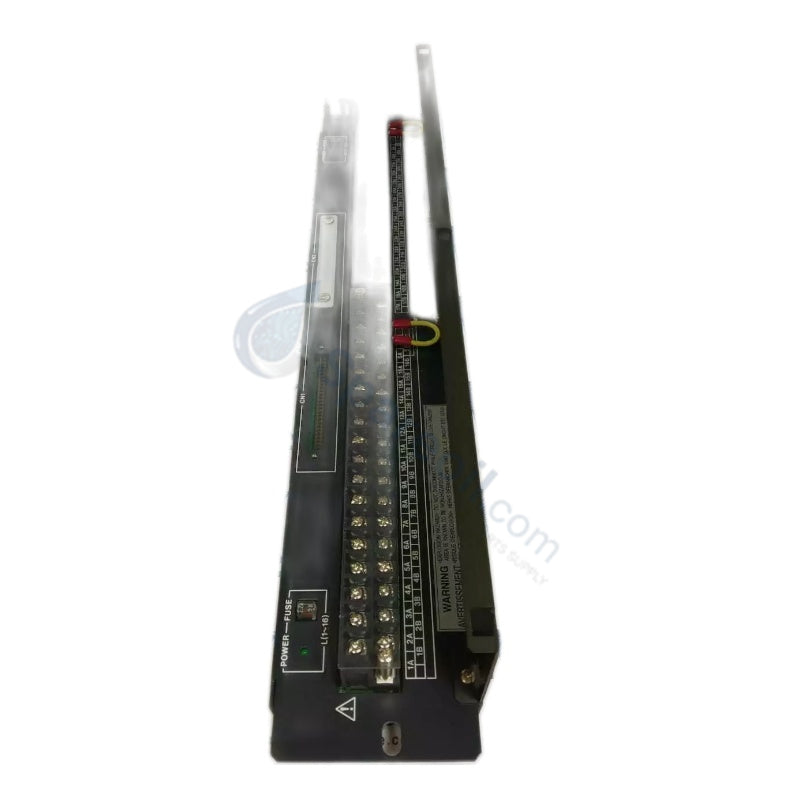

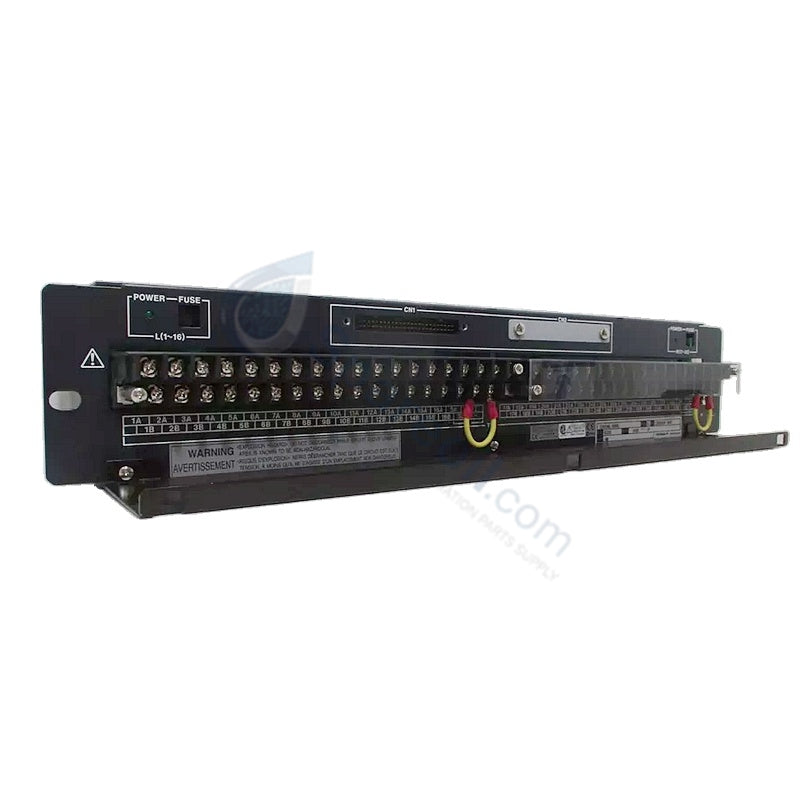

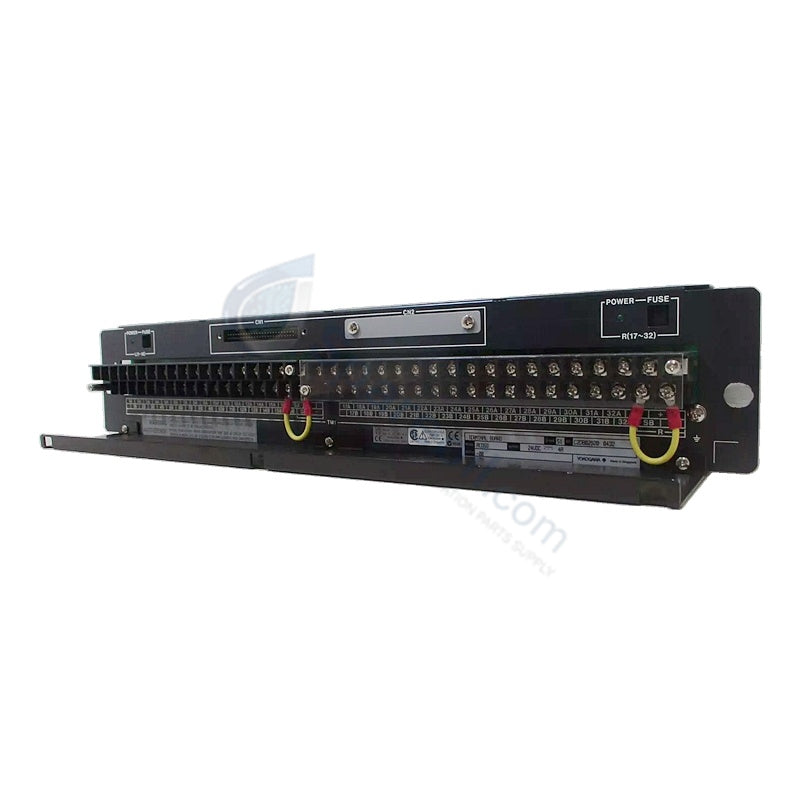

Yokogawa AED5D-05 CENTUM VP / CS 3000 Digital Output Module

Configured for discrete DC signal routing and automated actuator execution in Yokogawa DCS architectures, the Yokogawa AED5D-05 (AED5D Digital Output Module) provides direct physical and electrical execution. The unit converts internal control logic into 32 high-density field-level drive channels to command solenoids, auxiliary relays, and status indicators without intermediate logic processing overhead.

Hardware Specifications

Parameter Specification
Model AED5D-05
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.40 kg
Dimensions 130 x 120 x 30 mm
Operating Temp -20 to +55 deg C
Storage Temp -40 to +70 deg C
Relative Humidity 5 to 95% RH, non-condensing
Output Channels 32 discrete digital outputs
Output Switching Type Current sourcing (positive logic)
Nominal Output Voltage 24 VDC
Operating Voltage Range 18 to 26.4 VDC
Maximum Output Current 0.5 A per point (4.0 A maximum per group)
On-State Voltage Drop 0.3 VDC or less
Off-State Leakage Current 1.0 mA or less
Switching Response Time 2 ms or less (ON) / 2 ms or less (OFF)
Signal Isolation Optical and electrical isolation between field side and logic backplane
Diagnostic Status LED 32 dedicated green channel status indicators
Terminal Interface Dedicated high-insulation clamp terminal block
Standard Compliance CE, UL, FM certified

Channel-to-Channel Isolation and Loop Diagnostics

The module incorporates high-grade electrical isolation between field-side circuits and backplane logic elements to block high-voltage transients originating from inductive loads. Integrated optical couplers mitigate ground loop interferences and preserve signal integrity across high-density I/O racks. Furthermore, the unit features real-time diagnostics mapped directly to 32 individual green LED status indicators. These local visual indicators display precise output state transitions, allowing field engineers to confirm logic execution directly at the panel face during dynamic system commissioning and diagnostic troubleshooting cycles.

Frequently Asked Questions

Q: What precautions prevent overcurrent damage across output channels during high-load switching?

A: Engineers must maintain the load current below the absolute maximum rating of 0.5 A per individual point while strictly observing the aggregate limit of 4.0 A per channel group. When driving inductive devices such as solenoid coils or heavy relays, technicians should install external flyback suppression diodes across the field loads to absorb inductive voltage spikes and protect internal switching elements.

Q: Can engineers hot-swap the terminal block assembly during live process operations?

A: Hot-swapping the physical wiring head requires isolating external 24 VDC field power sources prior to disconnecting the dedicated clamp terminal block. Although the backplane electronics permit hot insertion into active CENTUM slots, disconnecting energized field wiring risks arcing across terminal pins and triggering false output states on field actuators.

Field Installation Guidelines

Technicians should mount the module securely into designated system racks using panel or rack-mounted configurations, ensuring surrounding ambient temperatures remain strictly within the specified -20 to +55 deg C operating window. Route field-side wiring through shielded cabling, keeping signal bundles separate from high-voltage AC power lines to minimize electromagnetic interference. Install effective surge suppression devices near inductive field loads and maintain clean cabinet grounding practices by landing cable shields directly to the main bus bar with minimum loop length.
