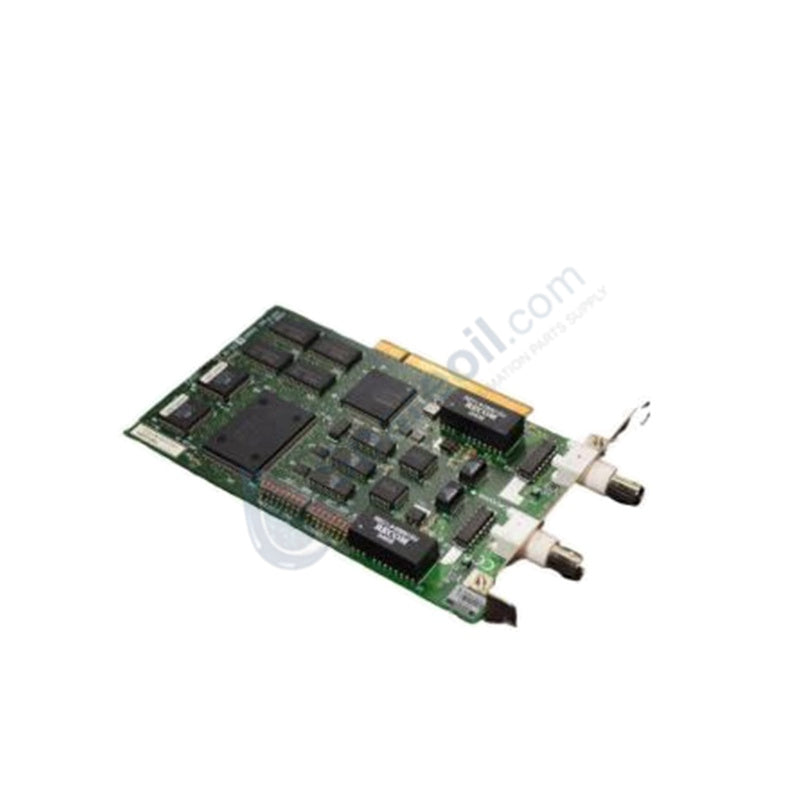

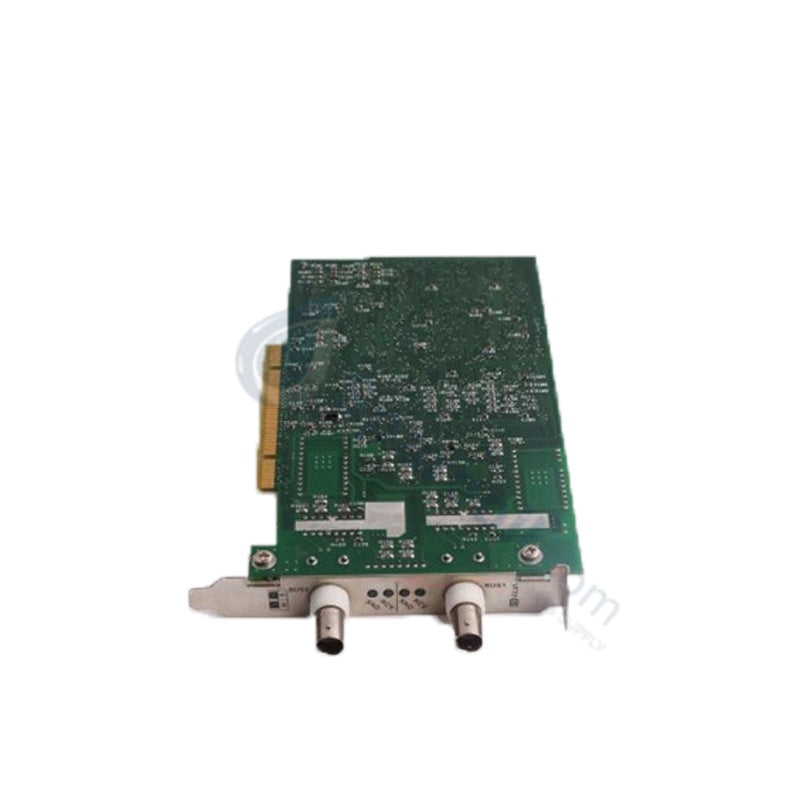

VF701 S2 YOKOGAWA Vnet/IP Interface Card

YOKOGAWA VF701 S2 CENTUM VP Vnet/IP Interface Card

YOKOGAWA VF701 S2 CENTUM VP Vnet/IP Interface Card

Availability: 10 left in stock

YOKOGAWA VF701 S2 Vnet/IP Interface Card Configured for high-speed network communication in Yokogawa DCS platforms, the YOKOGAWA VF701 S2 (VF701...

SKU: VF701 S2

Manufacturer: Yokogawa
Product No.: VF701 S2
Product Type: Interface Cards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 180g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA VF701 S2 Vnet/IP Interface Card

Configured for high-speed network communication in Yokogawa DCS platforms, the YOKOGAWA VF701 S2 (VF701 Vnet/IP Interface Card) provides direct physical/electrical execution. The module enables full-duplex, real-time data transfer across control bus subnets to link engineering workstations and field controllers within CENTUM VP and ProSafe-RS control architectures.

Hardware Specifications

Parameter	Specification
Model	VF701 S2
Brand	YOKOGAWA
Origin	Japan
Weight	0.18 kg
Dimensions	180.97 mm x 21.59 mm x 126.31 mm
Operating Temp	0 to 60 deg C
Power Consumption	Standard backplane power from host station
Network Interface	Vnet/IP dual-redundant bus network
Compatible Host Systems	CENTUM VP / ProSafe-RS
CPU Minimum Requirements	Intel Core2 Duo (2.13 GHz) or Xeon Dual-Core (2.0 GHz)
Memory Minimum Requirements	6 GB RAM

Deterministic Network Performance and Signal Isolation

The YOKOGAWA VF701 S2 executes low-latency packet transmission over redundant Vnet/IP Ethernet subnets to maintain real-time synchronization between human-machine interfaces and controller units. Channel-to-channel isolation on associated field I/O interfaces prevents ground potential differentials from interfering with 4-20 mA HART loop protocol communications. Internal signal processing circuits mitigate electromagnetic interference and voltage transients, preserving data frame integrity across high-density network loops. Cold junction compensation (CJC) references on connected analog input blocks remain stable as the interface card maintains consistent heat dissipation profiles across host PCI slots.

Frequently Asked Questions

Q: What network topology does the VF701 S2 interface card support?

A: The module supports dual-redundant Vnet/IP network configurations using standard RJ45 copper connections or optical transceivers on independent subnets.

Q: Are specific host PC system specifications required for card installation?

A: Yes, the host station requires a minimum processing platform consisting of an Intel Core2 Duo (2.13 GHz) or Xeon Dual-Core (2.0 GHz) CPU and at least 6 GB of system RAM.

Field Installation Guidelines

Insert the interface card into a designated PCI bus slot on the host station chassis after verifying that all system power feeds are turned off. Secure the mounting bracket retaining screw to ensure chassis grounding and mechanical retention against industrial vibration. Connect dual-redundant Ethernet patch cables to the primary and secondary Vnet/IP ports, maintaining a minimum bend radius of 50 mm along cable trunks. Verify that field wiring and network cables maintain physical separation from high-voltage power lines inside cabinet conduits to suppress electromagnetic noise coupling.
