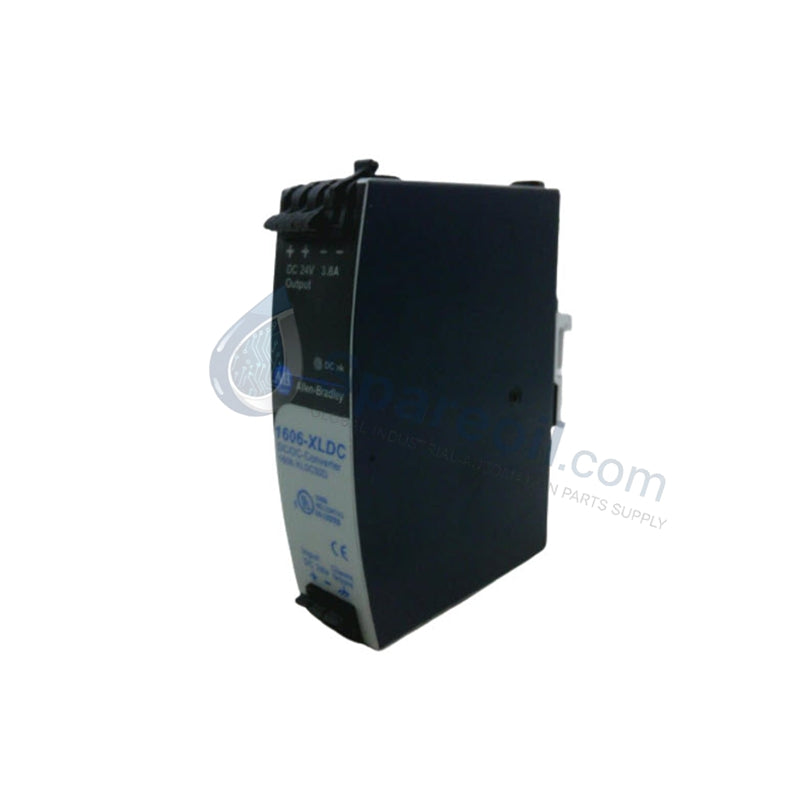

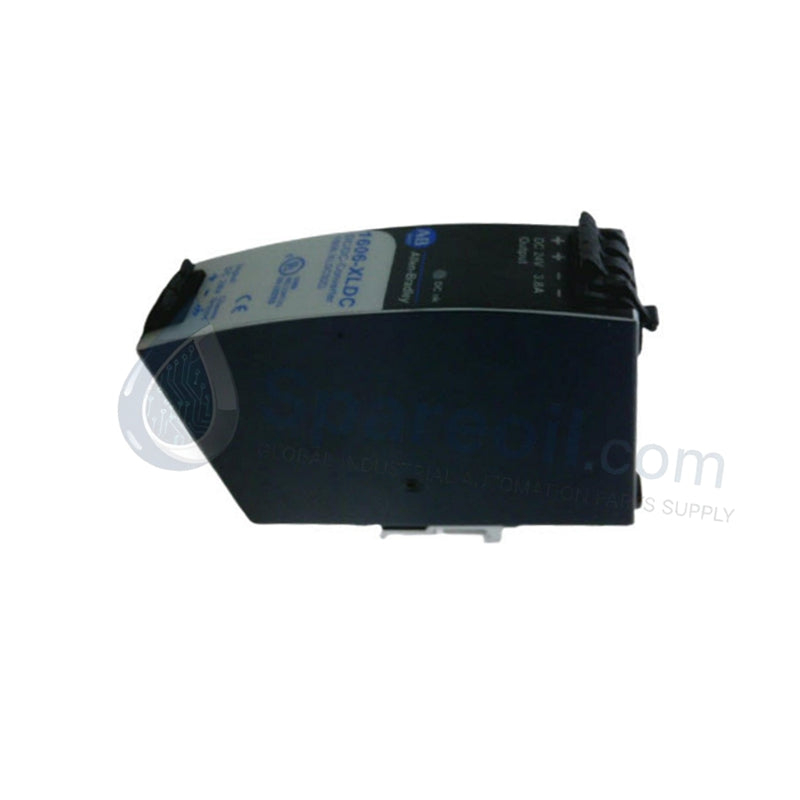

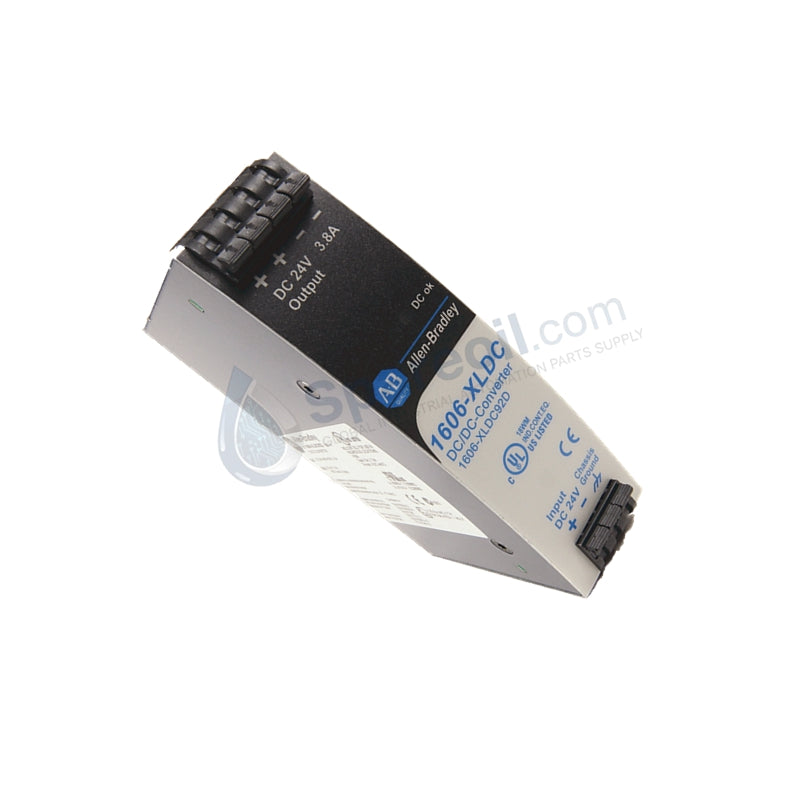

1606-XLDC92D AB 1606-XL Switched Mode Power Supply

Availability: 20 left in stock

Product Overview The Allen-Bradley 1606-XLDC92D is a high-performance DC-DC converter from the 1606-XL Standard Specialty series. It provides a stabilized 24VDC output...

SKU: 1606-XLDC92D

Manufacturer: Allen Bradley
Product No.: 1606-XLDC92D
Product Type: DC-DC Converters
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 1606-XLDC92D is a high-performance DC-DC converter from the 1606-XL Standard Specialty series. It provides a stabilized 24VDC output from fluctuating DC input sources, effectively isolating sensitive control equipment from voltage drops or spikes in battery-buffered or distributed DC networks. This module serves as a critical link in industrial automation, ensuring that PLCs, HMIs, and sensors receive consistent power even when the primary DC bus varies between 14V and 32V.

Technical Specifications

The 1606-XLDC92D delivers high-efficiency power conversion within a compact industrial footprint:

Feature	Specification Details
Model Number	1606-XLDC92D
Input Voltage	14–32 VDC (Nominal 18–36 VDC)
Output Voltage	24 VDC (Regulated)
Output Current	3.8 A
Output Power	92 W Continuous
Efficiency	≥ 92% Typical
Ripple/Noise	≤ 50 mVpp
Protections	Short-circuit, Overload, Reverse Polarity
Operating Temp	-25 °C to +70 °C
Mounting	DIN-35 Rail
Weight	0.33 – 0.41 kg
Certifications	UL 508, CE, IEC 60950, EN 50178

Engineering Advantages

Voltage Stabilization: The 1606-XLDC92D eliminates the "voltage sag" common in long DC cable runs. By boosting and regulating the input, it maintains a steady 24VDC, preventing controller reboots and communication errors during high-load periods on the DC bus.
Advanced Thermal Management: With an efficiency rating exceeding 92%, the module generates minimal waste heat. This performance allows for high-density packing on the DIN rail without requiring expensive forced-air cooling systems.
Rugged Protection Suite: Integrated "Soft-Start" circuitry limits inrush current during startup, protecting upstream fuses. The module also features comprehensive protection against reverse polarity and sustained short circuits, ensuring the unit survives wiring errors during commissioning.
Space-Efficient Design: The slim 32mm width allows engineers to maximize panel real estate. Its lightweight construction reduces the mechanical stress on the DIN rail in high-vibration machine control applications.

FAQs

Q: Is the Allen-Bradley 1606-XLDC92D unit 100% Brand New?

A: Yes. We supply only 100% Brand New and original Allen-Bradley factory equipment. Each converter ships in original packaging and includes a full 12-month manufacturer-backed warranty.

Q: Can I use this module to create a redundant power system?

A: Absolutely. You can pair the 1606-XLDC92D with standard 1606 redundancy modules to create a fault-tolerant power architecture for mission-critical industrial applications.

Q: What happens if the input voltage exceeds 32VDC?

A: While the nominal range extends to 36VDC in some variants, the 1606-XLDC92D is optimized for 14-32VDC. Exceeding these limits for prolonged periods triggers internal over-voltage protection to safeguard the connected 24V components, but sustained excessive voltage can damage the input stage of the converter.

Q: Does this unit support adjustable output voltage?

A: The 1606-XLDC92D provides a factory-regulated 24VDC output. For applications requiring specific voltage adjustments, please verify the specific sub-model variant or contact our technical team for adjustable-series alternatives.
