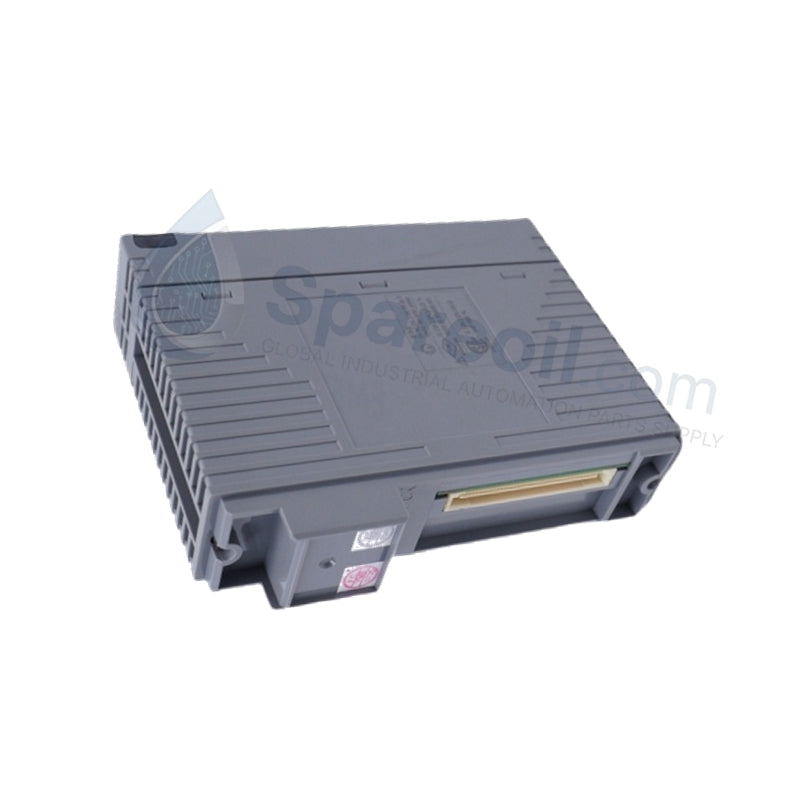

Yokogawa AAI543-S03 CENTUM Series Analog Output Module

The Yokogawa AAI543-S03, also cataloged as the AAI543 Analog Output Module, operates as a dedicated hardware component for driving field control elements within Yokogawa CENTUM VP and CENTUM CS 3000 distributed control system networks.

Suffix Breakdown & Model Matrix

  • Base Model: AAI543 (16-Channel Isolated Analog Output Module)
  • Suffix -S: Standard Type
  • Suffix -0: Standard switch-over response, non-explosion protection
  • Suffix -3: ISA G3 corrosion-resistant coating with extended temperature operational range (-20 to +70 deg C)
  • Style S1: Current hardware manufacturing revision specification

Hardware Specifications

Parameter Specification
Model AAI543-S03
Brand Yokogawa
Origin Japan
Weight 0.9 kg
Dimensions 5.1 cm x 20.3 cm x 14.6 cm
Operating Temp -20 to +70 deg C
Power Consumption 230 mA at 5 VDC, 540 mA at 24 VDC
Number of Channels 16 isolated analog outputs
Output Signal 4-20 mA
Accuracy +/-48 uA
Allowable Load Resistance 0-750 Ohm
Circuit-Open Detection < 0.65 mA
Data Update Period 10 ms
Temperature Drift +/-16 uA per 10 deg C
Isolation Voltage 1500 VAC for 1 minute (output to system)
Corrosion Protection ISA Standard G3 compliant coating

Process Control & DCS Instrumentation Features

The module implements strict channel-to-system electrical isolation to suppress common-mode noise and prevent ground loops from corrupting the internal FIO backplane logic. It integrates dedicated 4-20 mA current loop control circuitry designed to interface with control valves and actuators. Redundant configurations rely on the integrated standard switch-over response logic, which maintains continuous, uninterrupted output command transfer during a master processor card or module failover state.

Frequently Asked Questions

Q: What is the maximum response delay during a redundant hardware switch-over event?

A: The module executes a standard switch-over response controlled by the FIO backplane interface, completing the transfer of output channels to the backup module within system synchronization limits without altering the output current value.

Q: How does the open-circuit detection mechanism function on active current loops?

A: The module monitors loop integrity continuously. When the loop current drops below the absolute hardware threshold of 0.65 mA, an open-circuit fault code triggers via the FIO bus to alert the primary field control station.

Q: Can this module operate without external 24 VDC power?

A: No. The internal logic requires 230 mA from the 5 VDC backplane bus, but the 4-20 mA field loops require the 540 mA, 24 VDC supply line to maintain active driving current across maximum 750 Ohm loads.

Field Installation Guidelines

  • Mount the module securely on the designated FIO baseplate slot. Verify the grounding spring clips engage the baseplate DIN rail firmly to establish a low-impedance ground path.
  • Terminate all field wiring using appropriate pressure-clamp terminals, MIL connectors, or pre-fabricated KS1 interface cables. Maintain separation between signal loops and high-voltage AC power lines within the enclosure.
  • Ensure the active operating environment does not exceed the absolute limits of -20 deg C to +70 deg C. Verify ventilation paths around the module housing remain unblocked to allow proper thermal dissipation.
