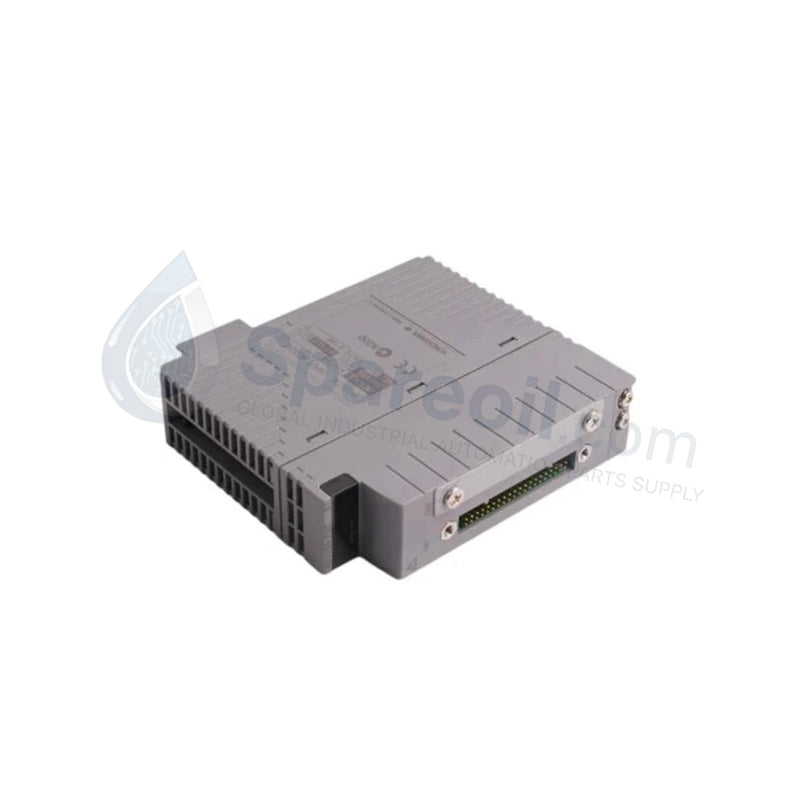

ADR541-P00 Yokogawa Relay Output Module

ADR541-P00 Yokogawa Relay Output Module | New & Original Stock

Availability: 99 left in stock

Yokogawa ADR541-P00 CENTUM Series Relay Output Module The Yokogawa ADR541-P00, also cataloged as the ADR541 Relay Output Module, operates as...

SKU: ADR541-P00

Manufacturer: Yokogawa
Product No.: ADR541-P00
Product Type: Digital Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 260g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa ADR541-P00 CENTUM Series Relay Output Module

The Yokogawa ADR541-P00, also cataloged as the ADR541 Relay Output Module, operates as a dedicated hardware component for field device switching and process interlock execution within CENTUM VP, CENTUM CS3000, and ESB Bus Node Units.

Hardware Specifications

Parameter	Specification
Model	ADR541-P00 (Style S2 / Compatible with ADR541-S00 Style S1)
Brand	Yokogawa
Origin	United States
Weight	0.26 kg (Net module weight)
Dimensions	3.2 cm x 10.7 cm x 7.6 cm
Operating Temp	0 to 55 deg C
Power Consumption	780 mA @ 5 VDC
Channel Capacity	16 relay output channels (Isolated)
Rated Load Voltage	24-110 VDC, 100-240 VAC (50/60 Hz)
Resistive Load Capacity	2.0 A/ch @ 24 VDC; 0.4 A/ch @ 110 VDC; 2.0 A/ch @ 100/220 VAC
Inductive Load Capacity	0.6 A/ch @ 24 VDC; 0.1 A/ch @ 110 VDC; 1.0 A/ch @ 100/220 VAC
Dielectric Isolation	2 kV AC (Output to system), 1.35 kV AC (Between common lines) for 1 minute
Output Response Time	Less than or equal to 12 ms (Status), less than or equal to 20 ms (Pulse/Status mixed)
Pulse Width Range	40 ms to 7200 s with 8 ms resolution
Mechanical Relay Lifespan	Minimum 100,000 operations

Process Control & DCS Instrumentation Properties

The Yokogawa ADR541-P00 incorporates a 2 kV AC galvanic isolation barrier between the core system logic and the 16 output channels, preventing field-side electrical surges from feeding back into the system backplane. The module features integrated group common groupings rated up to a maximum of 8 A per common line. The internal microprocessor supports standard continuous status switching alongside specialized pulse-width time-proportioning algorithms, allowing precise control sequences for inductive solenoid valves and motor starters while running automated self-diagnostic health checks.

Frequently Asked Questions

Q: What are the installation constraints regarding load distribution across the shared common circuits?

A: The 16 channels are divided into distinct groupings tied to shared internal commons. Each common path is limited to a maximum continuous current of 8 A; exceeding this threshold will cause thermal degradation of the internal traces and lead to premature failure of the module assembly.

Q: How should inductive field loads be handled to prevent premature breakdown of the relay contacts?

A: Inductive loads create high-voltage inductive kickback spikes during contact opening. To prevent arc erosion across the non-replaceable contacts, external surge suppression must be installed: utilize a flyback diode for DC circuits or a matched RC snubber network for AC lines.

Q: Is dual-redundant deployment supported for this specific relay module variant?

A: Yes. The ADR541-P00 is compatible with dual-redundant infrastructure within ESB bus nodes or Field Control Units. When configured as a matched pair, control switches seamlessly to the backup card if a hardware or backplane communication error is detected.

Field Installation Guidelines

Module Seat Engagement: Insert the module along the chassis card guides of the node chassis. Ensure the rear edge connectors slide completely into the backplane, and tighten the integrated front-panel fasteners to secure physical ground continuity.
External Wiring Interface: Connect the field lines to the terminal blocks using tool-free pressure-clamp terminals or an AKB334 pre-fabricated cable assembly. Ensure that terminal screws or clamps are locked properly to avoid high-resistance terminations.
Inductive Load Suppression Placement: Install all flyback diodes and RC snubbers directly across the terminals of the field solenoid or actuator coil. Placing the suppression components at the field device rather than the control panel blocks radiated noise from entering adjacent signal wiring paths.
Conduit and Routing Separation: Route all AC load-carrying wires away from low-voltage DC analog signal tracks or system bus cables. Maintain separate physical wire ducts inside the enclosure layout to prevent cross-talk coupling.
