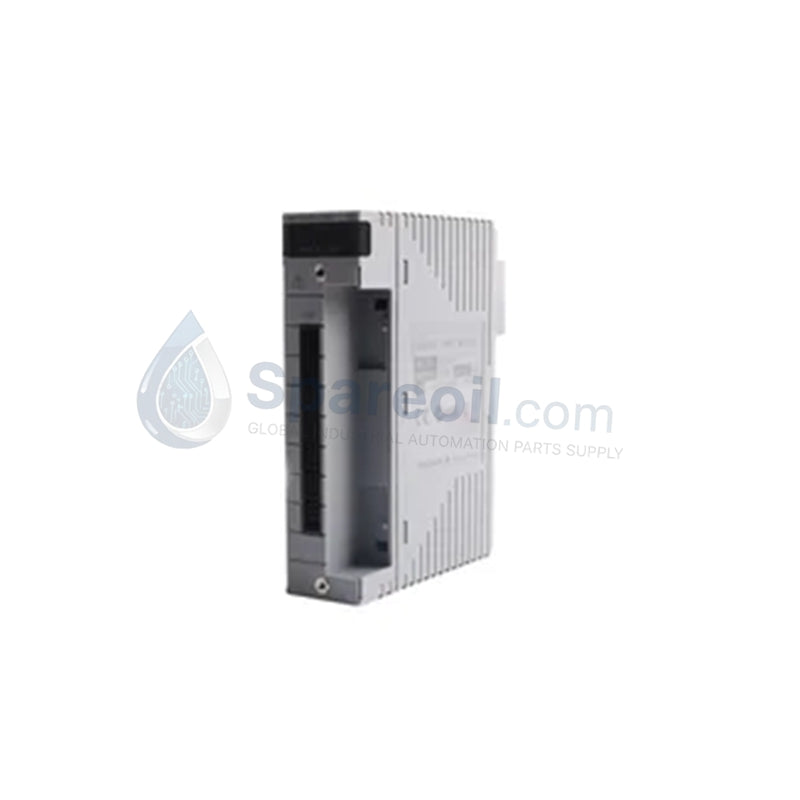

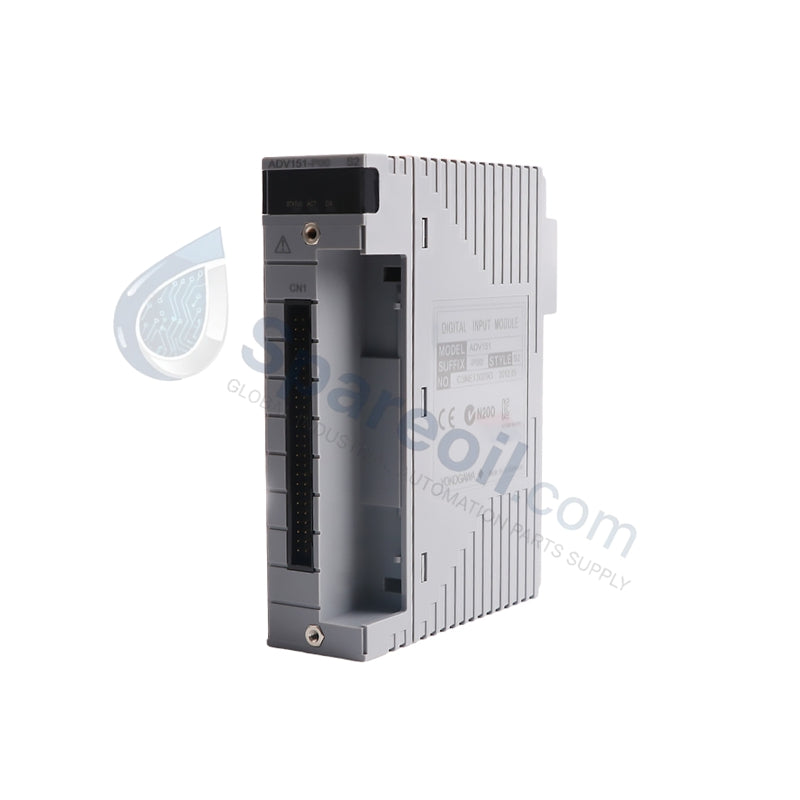

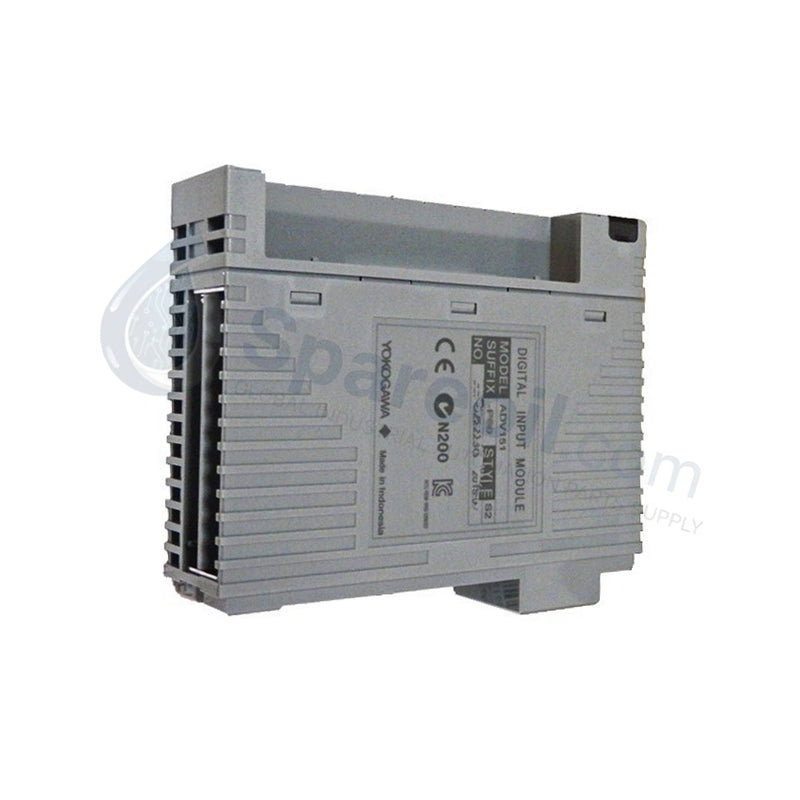

Yokogawa ADV151-P13 CENTUM Series Digital Input Module

The Yokogawa ADV151-P13, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for discrete signal processing and field network data translation within CENTUM VP and CS3000 FIO platforms.

Hardware Specifications

Parameter	Specification
Model	ADV151-P13 (Style S2)
Brand	Yokogawa
Origin	Indonesia
Weight	0.4 kg (Net module weight; gross shipping weight is 1.5 kg)
Dimensions	130 mm x 40 mm x 120 mm
Operating Temp	0 to +60 deg C (Storage: -40 to +85 deg C)
Power Consumption	5 VDC @ 1.2 A
Channel Architecture	Multipoint discrete tracking points
Interface Protocol	Vnet/IP (Redundancy supported)
Data Transfer Rate	100 Mbps Ethernet (Full duplex)
System Compatibility	CENTUM VP / CS3000 FIO Systems
Status Diagnostics	Integrated front-panel LEDs (Communication, Error, Module Health)
Relative Humidity	5% to 95% RH, non-condensing

Process Control & DCS Instrumentation Properties

The Yokogawa ADV151-P13 utilizes high-integrity channel-to-channel isolation circuits to block high-voltage common-mode transients from corrupting downstream logic subassemblies. To prevent signal distortion over extended distribution layouts, the hardware architecture implements an isolated 4-20 mA HART loop protocol routing topology alongside the base digital acquisition pathways. The onboard processing matrix filters field contact chatter automatically, standardizing discrete input states before translating the data packets over the full-duplex 100 Mbps Vnet/IP busway.

Frequently Asked Questions

Q: How does the module handle bus switchover delays when operating in a dual-redundant configuration?

A: The hardware links directly into parallel backplane channels on the FIO nest. In the event of a primary processor or communication fault, the system triggers an automated switchover sequence to the secondary card, maintaining active status loops with negligible network lag.

Q: What are the lifecycle compatibility restrictions regarding legacy Style S2 ADV151-P13 hardware?

A: The ADV151-P13 model configuration is discontinued by the manufacturer. Existing installations requiring total card replacement or scaling updates use the direct functional successor assembly labeled as part number ADV151-P63/D5A00.

Q: Is hot-swapping supported for single module deployments under live system conditions?

A: Hot-swapping is strictly limited to dual-redundant configurations where a secondary card is actively maintaining data telemetry. Pulling a single-channel card while energized breaks all associated digital input loops instantly and flags an error register at the controller terminal.

Field Installation Guidelines

FIO Slot Interlocking: Position the circuit board alignment wings within the guide rails of the designated CENTUM FIO nest slot. Push firmly to ensure complete engagement of the rear edge connector block, then tighten the captive locking screws.
Communication Interface Shielding: Ground all multi-conductor field input shields exclusively at the Marshalling panel instrumentation ground bus bar. Never ground both ends of the shielding braid to prevent high-frequency current loops from introducing noise jitter.
Signal Cable Isolation: Route the low-voltage discrete signal paths and Vnet/IP network connections through dedicated wiring ducts separate from any high-amperage AC utility feeds, motor supply links, or high-power inductive switching rails.
Thermal Convection Clearances: Leave the manufacturer-specified ventilation pathways open around the FIO chassis housing. Restricting airflow around this 1.2 A rated unit causes localized heat build-up, exceeding the 60 deg C operating threshold and degrading conversion component lifespans.
