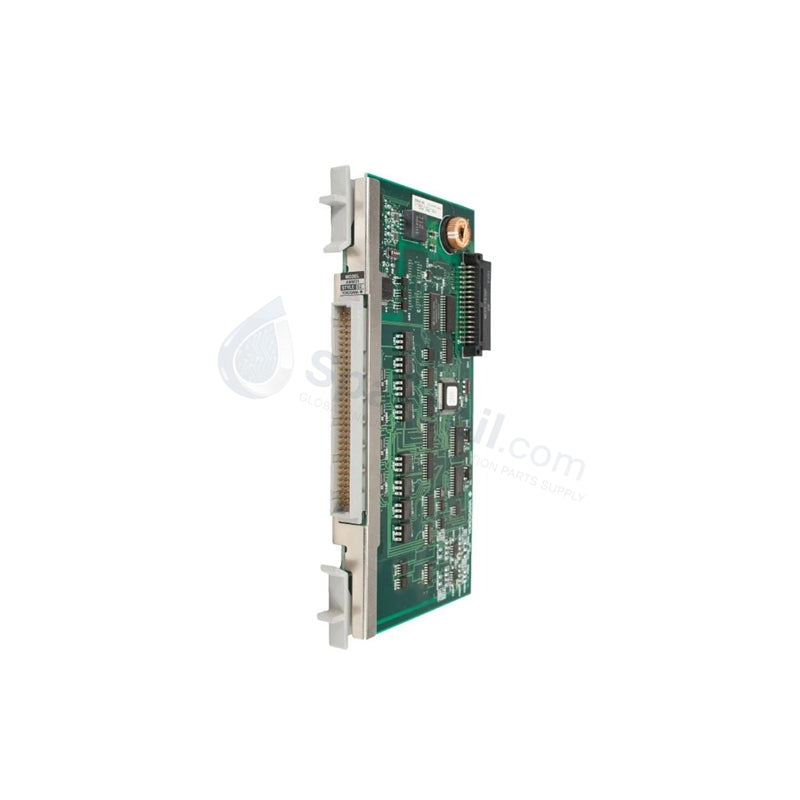

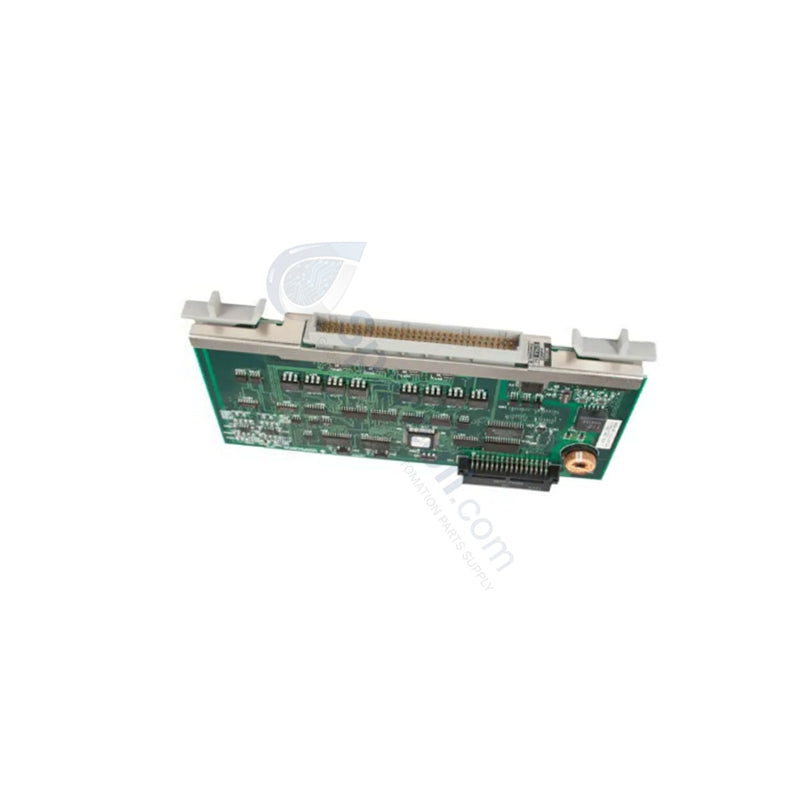

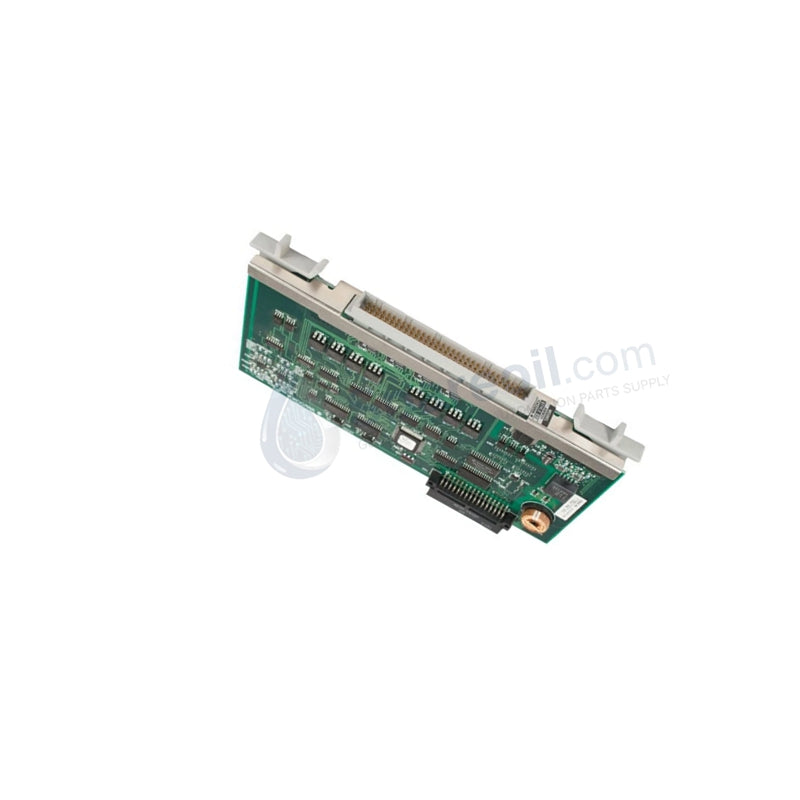

Configured for converting signals from magnetic flow tubes into standardized outputs within process automation networks, the Yokogawa AMM31, also cataloged as the AMM31 Magnetic Flow Converter, provides direct physical/electrical execution.
| Parameter | Specification |
|---|---|
| Model | AMM31 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.2 kg (6.1 oz) |
| Dimensions | 12.7 cm x 2.5 cm x 20.3 cm |
| Operating Temp | Standard industrial range |
| Power Consumption | Configured per excitation protocol requirements |
| Excitation Method | Dual frequency (up to 400 mm tube) / Pulsed DC (500 mm and larger) |
| Response Time | 0.1 s |
| Current Output | 4-20 mA DC (max. 1000 Ohm load) |
| Pulse Output | Transistor contact, 30 VDC (OFF), 200 mA (ON), 0.0001-1000 pps |
| Alarm Output | Transistor contact, 30 VDC (OFF), 200 mA (ON) |
| Status Output | 2 x Transistor contacts, 30 VDC (OFF), 200 mA (ON) |
| Communication Protocols | BRAIN / HART |
| Cable Length Limit | Up to 2 km via PVC-sheathed control cables |
| Enclosure Protection | NEMA 4 equivalent |
| Case Material | Aluminum alloy with polyurethane corrosion-resistant coating |
| Mounting Options | 2-inch pipe, panel, or surface mount |
| Grounding Resistance | 100 Ohm maximum (10 Ohm maximum when utilizing surge arrestor function) |
| Data Storage | Non-volatile EEPROM (no backup battery required) |
The module utilizes a 4-20 mA HART loop protocol alongside the proprietary BRAIN communication layer to interface directly with distributed control system (DCS) architectures. To preserve signal integrity across long-distance topologies up to 2 km, the hardware maintains independent channel-to-channel isolation parameters between the primary flow tube excitation circuit and the analog/pulse output terminals. Signal processing functions leverage dual-frequency excitation techniques to suppress slurry noise and fluid hydrodynamic variations, executing real-time digital filtering without introducing phase lag into the 4-20 mA control loop.
Q: What are the specific load resistance boundaries for establishing digital communication with the AMM31?
A: For BRAIN protocol communication, the loop must maintain a load resistance between 250 Ohm and 600 Ohm. For HART protocol configuration, the required loop resistance range is 230 Ohm and 600 Ohm.
Q: How does the unit store calibration and configuration constants during a total power disruption?
A: The device writes all operational parameters, flow tube constants, and multi-range settings directly to an internal EEPROM. This non-volatile storage method eliminates the need for lithium backup batteries and prevents data corruption during prolonged power outages.
