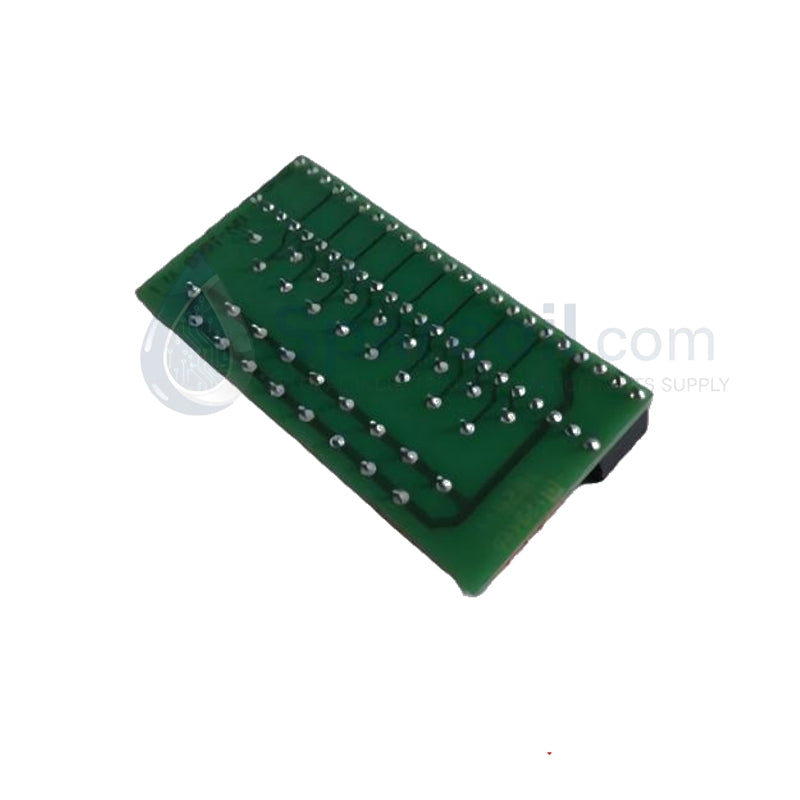

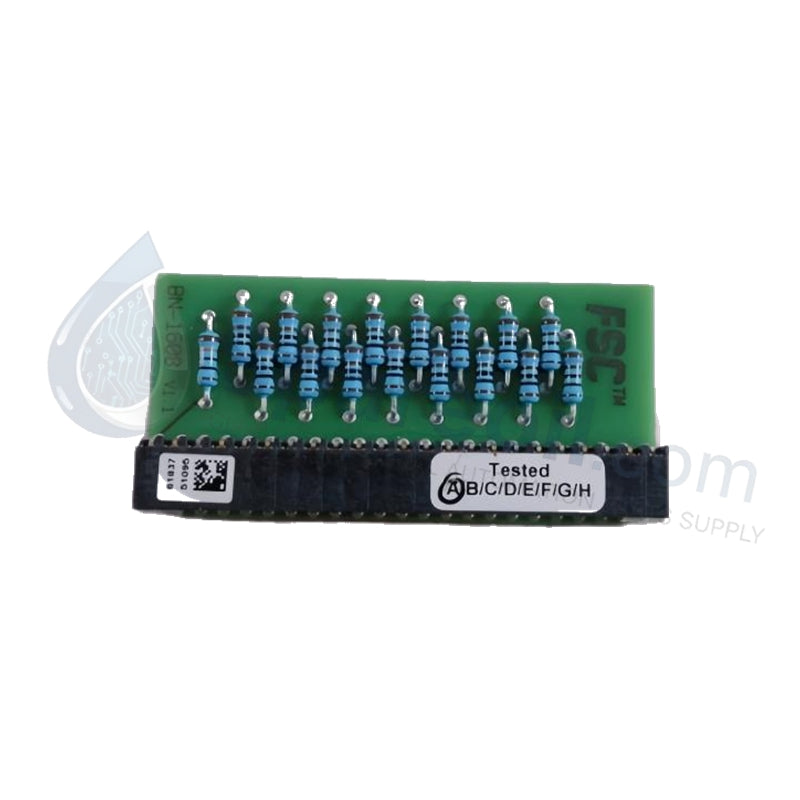

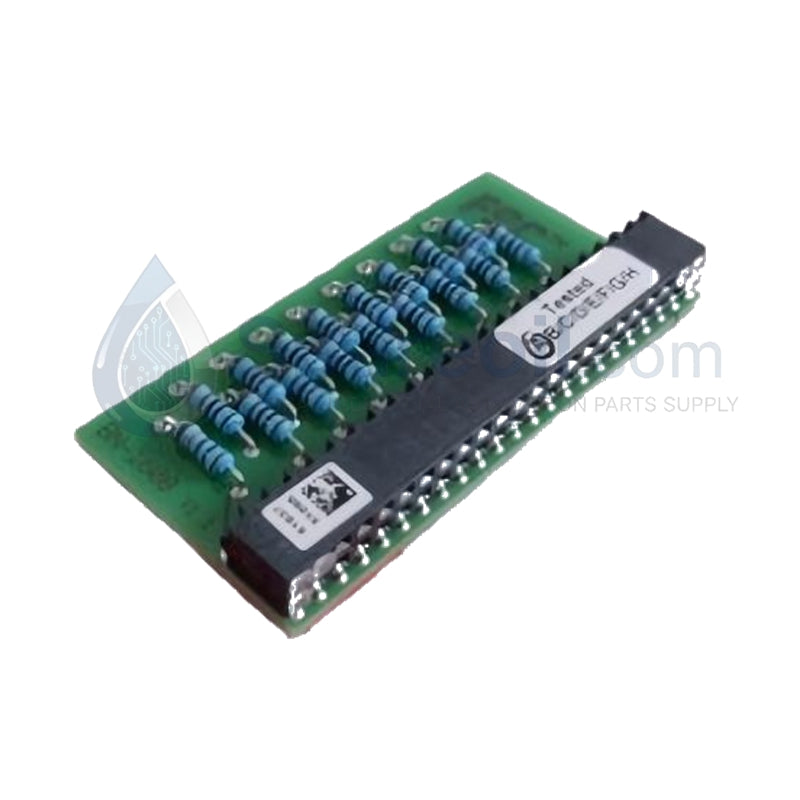

FC-BSN-1608 Honeywell NAMUR Converter

FC-BSN-1608 Honeywell NAMUR Converter | New & Original Stock

Availability: 99 left in stock

Honeywell FC-BSN-1608 Safety Manager Series The Honeywell FC-BSN-1608, also cataloged as the FC-BSN-1608 Fail-Safe NAMUR Sensor Converter Module, operates as...

SKU: FC-BSN-1608

Manufacturer: Honeywell
Product No.: FC-BSN-1608
Product Type: NAMUR Sensor Converter Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 630g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell FC-BSN-1608 Safety Manager Series

The Honeywell FC-BSN-1608, also cataloged as the FC-BSN-1608 Fail-Safe NAMUR Sensor Converter Module, operates as a dedicated hardware component for NAMUR proximity sensor signal processing within Honeywell Safety Manager platforms.

Hardware Specifications

Parameter	Specification
Model	FC-BSN-1608
Brand	Honeywell
Origin	United States
Weight	0.63 kg (Net Weight)
Dimensions	14.8 cm x 7.0 cm x 26.9 cm
Operating Temp	-40 deg C to 70 deg C (-40 deg F to 158 deg F)
Power Consumption	Sourced via Safety Manager backplane
Input Channels	16 independent channels
Standard Compliance	NAMUR EN 60947-5-6
Input Signal Range	1.2 mA to 2.1 mA typical switching thresholds
Short Circuit Threshold	> 6.0 mA
Open Circuit Threshold	< 0.35 mA
Isolation Barrier	Integrated galvanic isolation
Diagnostics Layer	Per-channel wire-fault loop monitoring

Galvanic Isolation & NAMUR Sensor Loop Diagnostics

The converter module hosts 16 independent instrumentation channels designed to monitor input currents from proximity switches conforming to EN 60947-5-6 standards. Internal comparator networks map field impedance variations against specified switching limits, using galvanic isolation to separate incoming field transients from the primary safety logic solver backplane.

The hardware subassembly executes real-time loop diagnostics by continuously tracking boundary current zones. Field currents dropping below 0.35 mA register as an open-circuit fault, while line currents exceeding 6.0 mA trip short-circuit hardware indicators. These diagnostic values are read directly by the internal processor to inhibit faulted channels inside the voting matrix, preventing indeterminate states from driving active logic outputs.

Frequently Asked Questions

Q: Does the FC-BSN-1608 support on-line hot-swap replacement within an active Safety Manager chassis? A: Yes. The mechanical interface is keyed for online insertion and removal under backplane electrical load. However, extraction of this module instantly breaks the 16 active NAMUR sensor loops, driving associated application variables to their configured fail-safe states in the control logic.

Q: Is external power required to drive the field-side NAMUR proximity sensors? A: No. The module isolates and steps down internal backplane power to provide the necessary excitation voltage directly to the 16 field channels, eliminating the need for external loop power distribution terminals.

Q: How does the module handle short-duration electrical noise on the sensor line to prevent false wire-fault alarms? A: The hardware employs built-in analog filters combined with firmware-level debouncing on each channel. Transient spikes that do not persist past the hardware evaluation window are suppressed, ensuring only sustained line disruptions register as open or short-circuit faults.

Field Installation Guidelines

Chassis Slot Alignment: Insert the module into the designated slot of the Safety Manager chassis. Engage the top and bottom extraction levers to seat the card edges into the backplane, and tighten the retaining screws to guarantee continuous electrical bonding.
Shield Termination Protocol: Route all NAMUR sensor cables using twisted-pair shielded instrumentation wiring. Terminate the outer shields exclusively at the designated enclosure ground bar, ensuring the drain wires are insulated at the field instrument side to stop common-mode current loops.
Conduit Routing Constraints: Maintain physical separation between the low-voltage NAMUR sensor input conduits and high-power AC distribution or inductive motor control wires to minimize electrical noise injection into the diagnostic detection circuitry.
