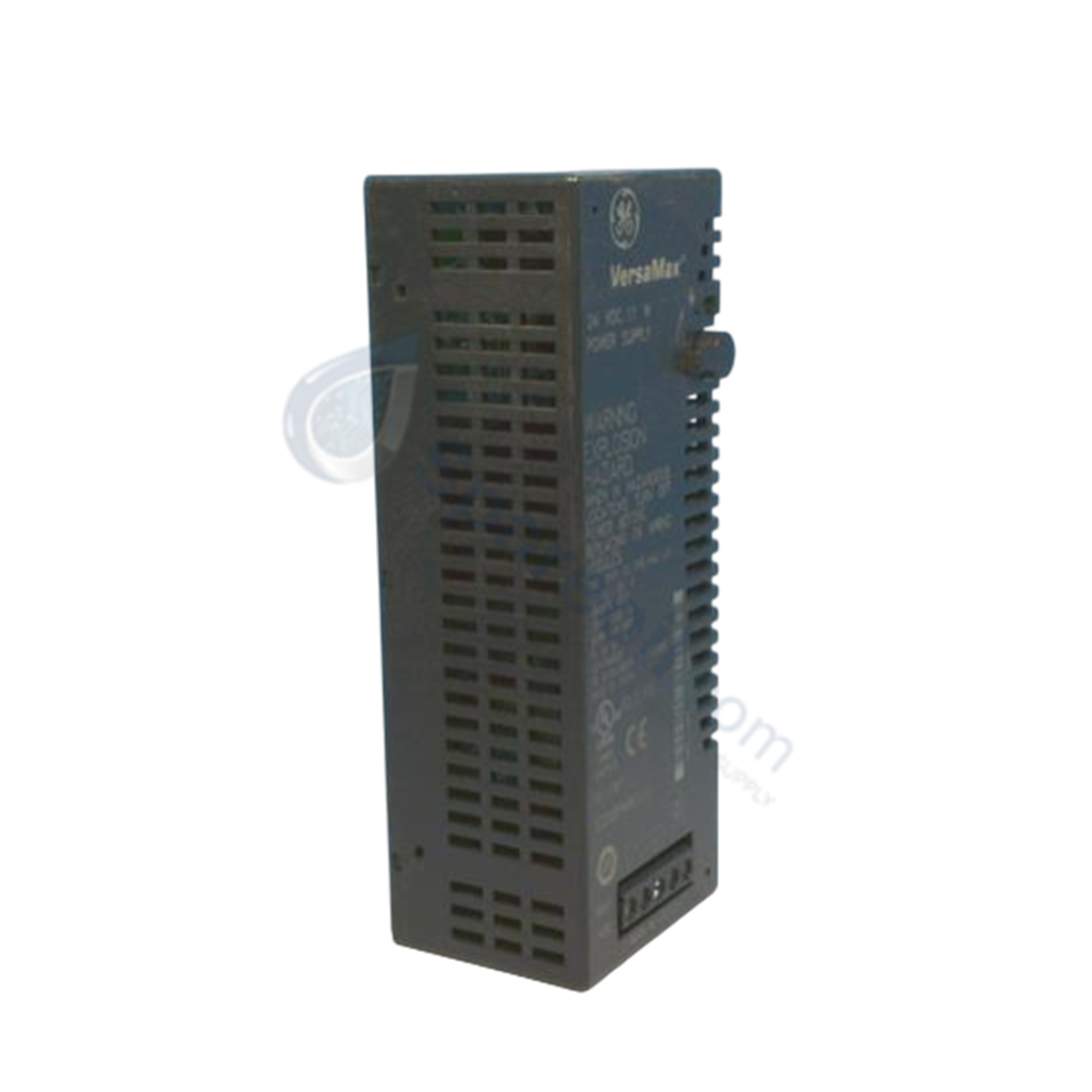

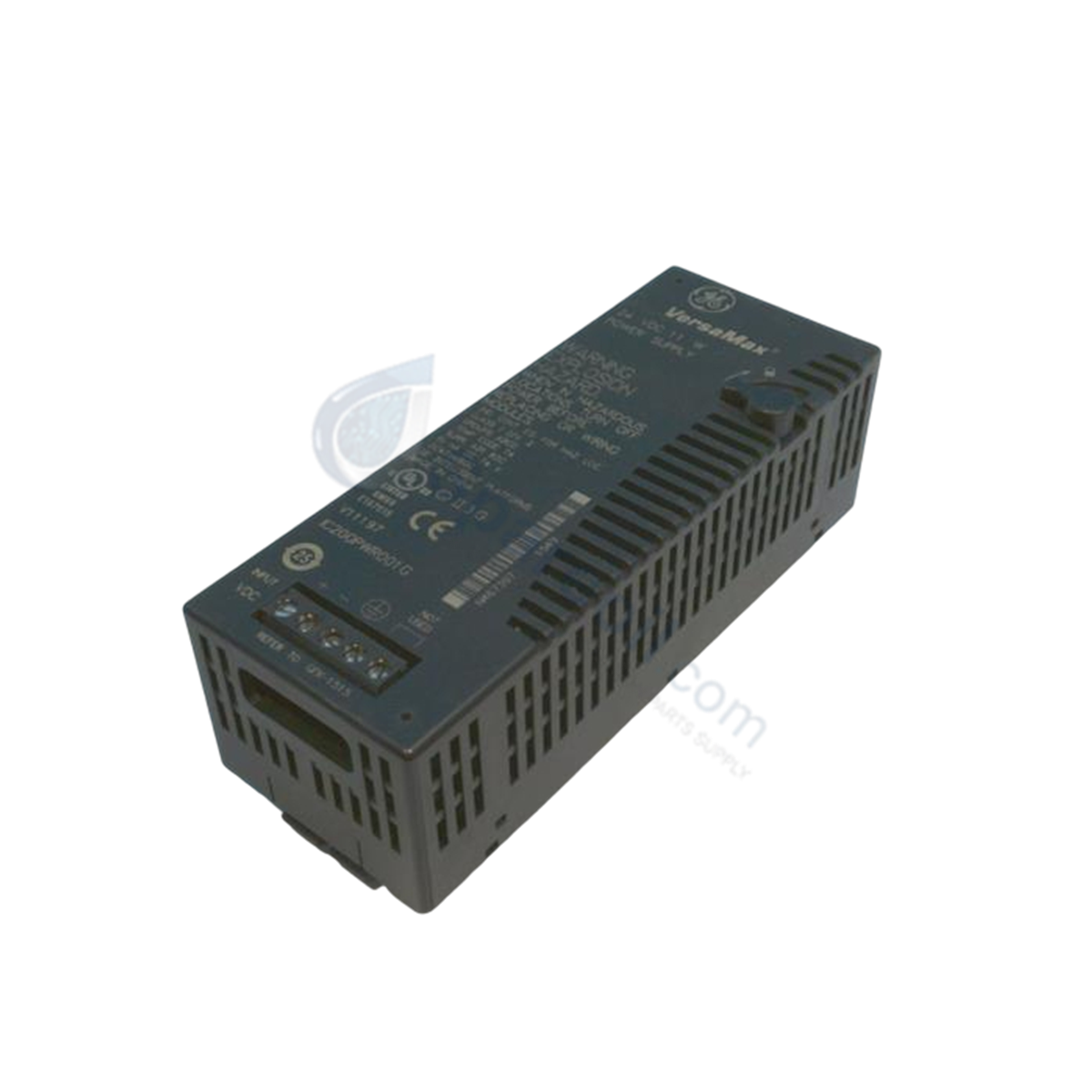

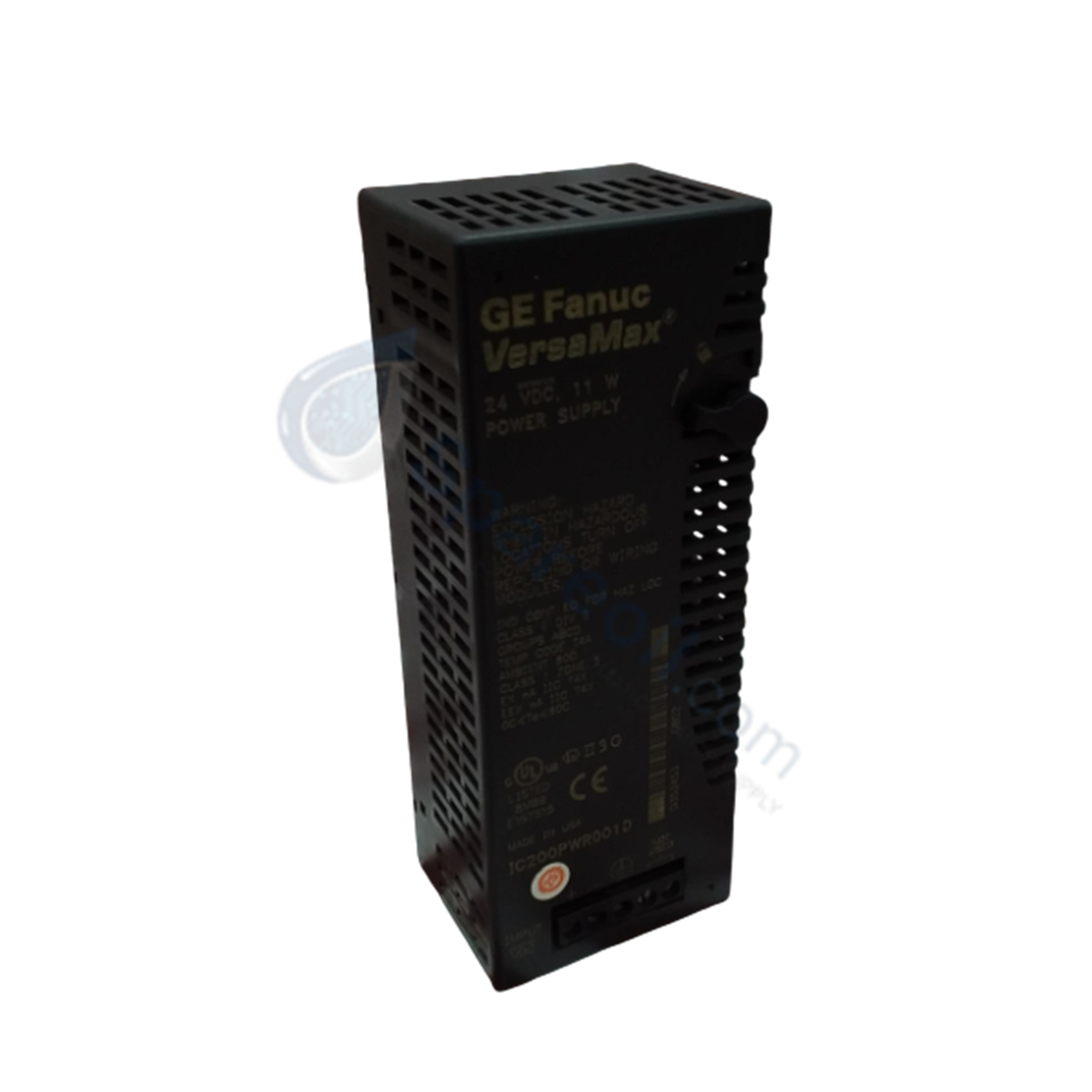

The GE IC200PWR001, also cataloged as the IC200PWR001 DC Power Supply Module, operates as a dedicated hardware component for backplane logic power distribution within VersaMax I/O, CPU, and NIU networks. Receiving a nominal input of 24 VDC, the unit converts field power to regulate dual bus outputs of 5 VDC and 3.3 VDC with a maximum total combined current capacity of 1.5 A. Featuring an input holdup time of 10 ms and integrated protections against short circuits, overloads, and input reverse polarity, the module provides direct electrical stability across backplane slots.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200PWR001 |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.11 kg (0.25 lbs) |
| Dimensions | 49 mm x 133.4 mm x 39 mm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 11 W max input power |
| Input Voltage Nominal | 24 VDC |
| Output Voltages | 5 VDC and 3.3 VDC backplane rails |
| Total Output Current | 1.5 A maximum combined |
| 3.3V Output Current Limit | 0.25 A maximum |
| 5V Output Current Limit | 1.5 A minus current used on 3.3V rail |
| Holdup Time | 10 ms minimum |
| Inrush Current | 20 A at 24 VDC / 25 A at 30 VDC |
| Protective Functions | Short circuit, overload, reverse polarity |
Backplane Bus Deterministic Execution & Firmware Stability
The IC200PWR001 interfaces directly with the VersaMax backplane bus structure, providing regulated internal logic rail power necessary to maintain deterministic networks across Profinet and EtherNet/IP drops. Steady voltage regulation on the 5 VDC and 3.3 VDC supply buses preserves system firmware flash compatibility during scan execution, preventing backplane bus communication velocity degradation or frame resets under transient supply fluctuations. When integrated onto booster carriers or primary CPU/NIU bases, the hardware scales I/O density while protecting high-speed backplane transactions.
Frequently Asked Questions
Q: How is the maximum output current distributed between the 5 VDC and 3.3 VDC rails on the IC200PWR001?
A: The total output current across both rails is capped at 1.5 A. The 3.3 VDC rail can supply up to 0.25 A, and the remaining available current (1.5 A minus the actual 3.3 VDC draw) is available on the 5 VDC rail.
Q: What protective measures are built into the IC200PWR001 to handle electrical faults?
A: The module contains internal circuitry to protect against input reverse polarity, short circuits on the output, and continuous current overloads.
Q: Can the IC200PWR001 be used in expansion racks as a secondary power supply?
A: Yes. The module functions as the main power supply when mounted on a CPU or NIU base, or as a secondary power supply when installed on an expansion power supply booster carrier in larger I/O drops.
Field Installation Guidelines
-
Power Isolation: Disconnect main power to the panel before mounting or wiring the power supply module to prevent accidental electrical short circuits.
-
Base Attachment: Align the module with the guide keyways on the primary CPU, NIU, or power supply booster carrier, and press firmly until the locking latch engages.
-
Grounding Setup: Connect the 24 VDC input power return and enclosure ground reference directly to functional earth/frame ground to ensure proper noise immunity and surge protection.
-
Wiring Requirements: Route 24 VDC input wiring separately from high-voltage AC or inductive load cables to prevent high-frequency interference on the DC input.
-
Inrush Capacity Check: Ensure the upstream 24 VDC power supply can accommodate an inrush current spike of up to 25 A for proper startup without triggering source voltage dips.
