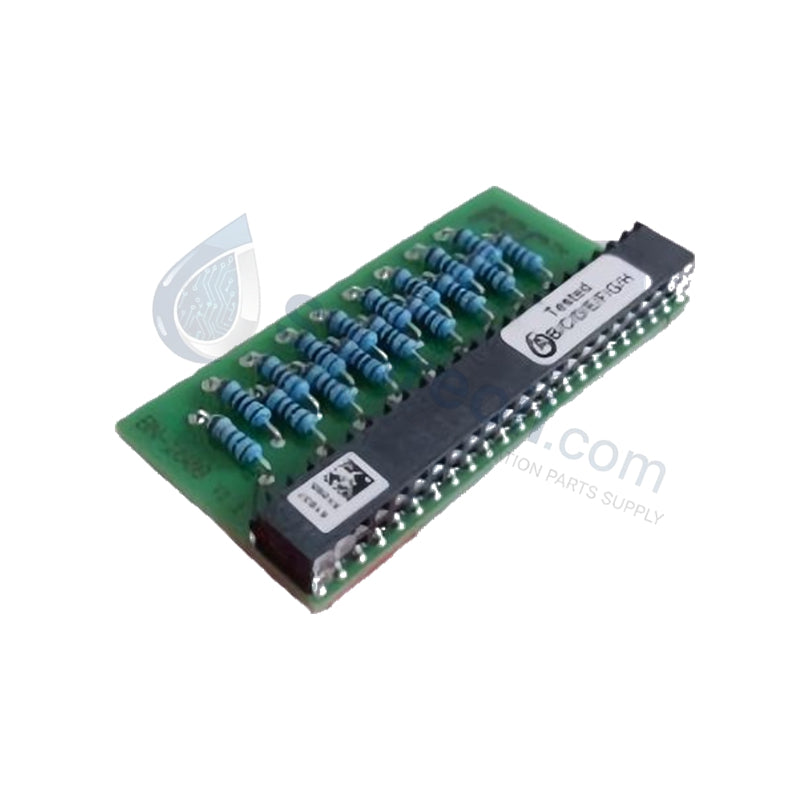

Honeywell FC-BN-1608 Experion PKS Safe NAMUR Sensor Converter

The Honeywell FC-BN-1608 (6183750060), also cataloged as the FC-BN-1608 Safe NAMUR Sensor Converter / I/O Bus Node, operates as a dedicated hardware component for discrete signal processing and bus communication within Honeywell Experion PKS and C300 controller platforms. The module captures field status from up to 16 input channels and converts NAMUR proximity sensor signals into deterministic digital data on the proprietary Honeywell I/O bus interface without requiring external signal conditioning equipment.

Hardware Specifications

Parameter	Specification
Model	FC-BN-1608
Part Number	6183750060
Brand	Honeywell
Origin	USA
Weight	1.5 kg
Dimensions	180 x 100 x 25 mm
Operating Temp	0 deg C to +60 deg C
Power Consumption	0.6 W (Maximum)
System Compatibility	Honeywell Experion PKS, C300 Controllers
Channel Density	16 Input Channels
Input Signal Type	NAMUR Proximity Sensors / Dry Contacts
Input Current Range	0-8 mA (Detection range); 20 mA Max
Input Resistance	1 kOhm (+/-1%)
Communication Protocol	Proprietary Honeywell I/O Bus Protocol
Isolation Type	Galvanic Isolation
Certifications	CE, UL, CSA

Galvanic Isolation and Signal Integrity in Field Loops

Galvanic isolation between the input sensing circuitry and the central Honeywell I/O backplane prevents ground potential differences from corrupting digital status data. By maintaining electrical separation across all 16 input channels, the module suppresses common-mode noise and prevents ground loops from shifting the 0-8 mA threshold window. Furthermore, channel conditioning circuits evaluate loop current draw to distinguish standard switching behavior from field fault conditions, transferring diagnostic flags directly to controller system memory.

Frequently Asked Questions

Q: How does the module differentiate wire-break and short-circuit faults from standard contact states?

A: The input channel measures sensor current draw continuously within the 0-8 mA detection window. Current levels falling below 0.15 mA indicate an open-circuit fault (wire break), whereas current levels exceeding upper NAMUR thresholds signal a short-circuit condition, causing the module to post system diagnostic flags.

Q: What modifications are required to interface standard dry contact switches with the input channels?

A: Standard dry contacts require an external resistor network connected in parallel and series across the contact terminals. This network conditions circuit impedance to match NAMUR current thresholds, enabling loop status monitoring features for discrete switches.

Q: How many I/O channels does a single node manage across the chassis backplane?

A: A single node interfaces up to 16 physical input channels, routing digitized sensor state data and fault status across the proprietary Honeywell I/O bus to the C300 processor.

Field Installation Guidelines

Mount the module securely on standard DIN rail structures within the designated Experion cabinet chassis. Ensure clean physical contact with the ground backplane connection to establish a solid reference. When routing field sensors, separate signal conductors from AC power conductors to prevent electromagnetic noise coupling into the input loops.

Strip wire insulation to specified lengths before inserting leads into screw terminal blocks. Tighten screw terminals to standard panel torque specifications to maintain vibration-proof connection joints. Connect cable shield drains to dedicated chassis earth bars at a single point to prevent ground currents from flowing through signal wires. Verify that all channel resistor networks are properly terminated before applying power to dry contact sensing loops.
