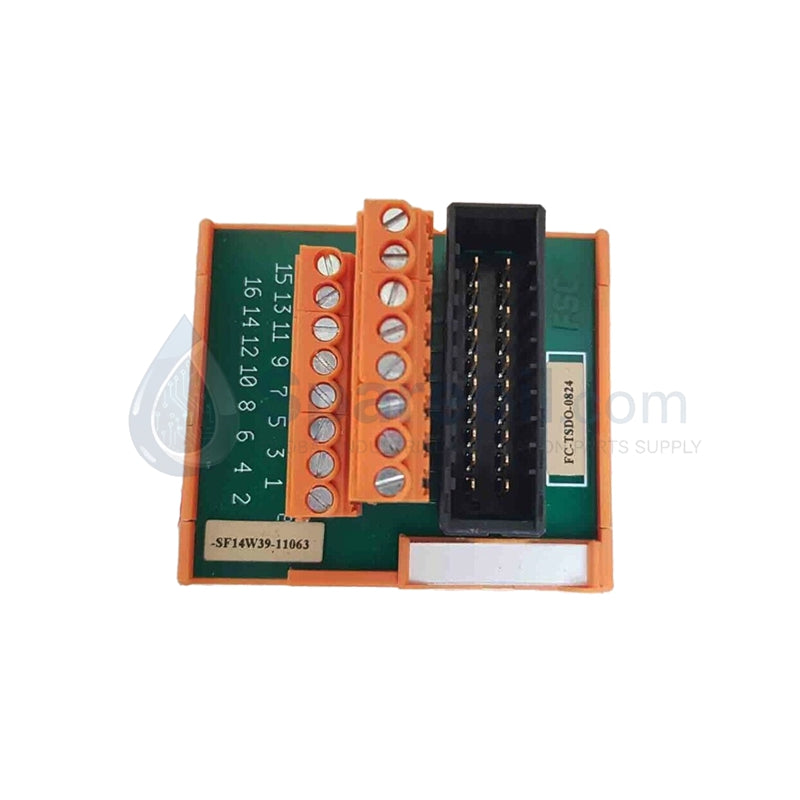

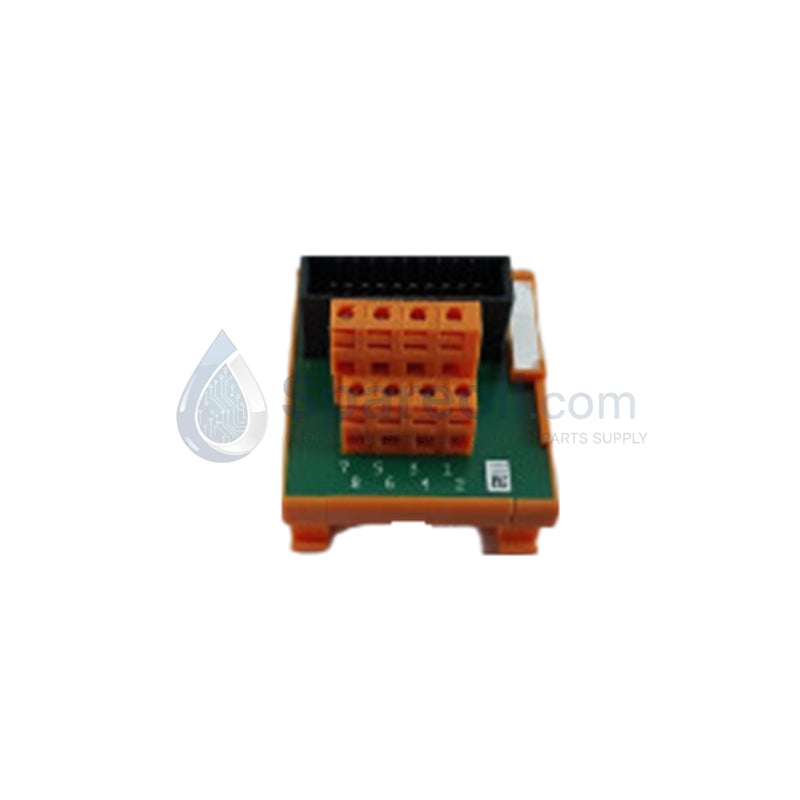

Honeywell FC-TSDO-0824 8-Channel 24VDC Output Module

Availability: 99 left in stock

Product Overview The Honeywell FC-TSDO-0824 (also identified as TSDO-0824) functions as a high-integrity Safe Digital Output Field Termination Assembly (FTA) for the...

SKU: FC-TSDO-0824

Manufacturer: Honeywell
Product No.: FC-TSDO-0824
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell FC-TSDO-0824 (also identified as TSDO-0824) functions as a high-integrity Safe Digital Output Field Termination Assembly (FTA) for the Honeywell Safety Manager and Experion PKS platforms. This module provides 8 dedicated channels to drive critical field devices, including actuators, relays, and solenoid valves. Engineered for the highest safety standards, it ensures deterministic control and fault-tolerant signal transmission in safety-instrumented systems (SIS). We supply this unit as 100% Brand New and Original in Factory Packing, providing the reliable hardware foundation necessary for mission-critical industrial automation.

Technical Specifications

Attribute	Details
Manufacturer	Honeywell / FSC
Model Number	FC-TSDO-0824
Number of Channels	8 Digital Outputs
Maximum Voltage	36 VDC (Overvoltage Category 3)
Continuous Current	1.5 A per channel (Maximum)
Output Voltage	24 VDC (Typical)
Mounting	DIN EN Rails TS32 / TS35 x 7.5
Screw Terminals	Max 2.5 mm² (AWG 14)
Tightening Torque	0.5 Nm (0.37 ft-lb)
Operating Temperature	-40°C to +70°C
Approvals	CE, TUV, UL, CSA, FM, SIL-Rated
Dimensions	6 cm x 7 cm x 5.8 cm

Engineering Advantages

High-Current Drive Capability: The FC-TSDO-0824 delivers a maximum continuous current of 1.5 A per channel. This robust power capacity allows the module to drive heavy-duty solenoids and large industrial relays directly without requiring intermediate amplification modules.
Overvoltage Protection (Category 3): Built to IEC 1010 standards, the module withstands significant electrical surges. This overvoltage category 3 rating ensures the safety of the internal logic bus when the system encounters transients common in heavy industrial power grids.
Deterministic Fail-Safe Operation: Designed specifically for SIL-rated safety functions, the TSDO-0824 executes shutdown commands with ultra-low latency. It integrates seamlessly into redundant architectures to eliminate single points of failure in emergency shutdown (ESD) loops.
Simplified Field Wiring: The module utilizes a compact 61 mm rail footprint with integrated screw terminals that accept wire diameters up to AWG 14. This high-density design reduces cabinet clutter and accelerates the wiring process during facility commissioning.
Extreme Environmental Resilience: The module maintains full operational accuracy across a wide temperature spectrum (-40°C to +70°C). The ruggedized construction protects against signal drift and hardware fatigue in unconditioned remote instrument enclosures.

FAQs

What is the maximum current this module can handle per channel?

The FC-TSDO-0824 supports a maximum continuous current of 1.5 A per channel. However, the actual maximum current remains defined by the capacity of the connected output module within the Safety Manager rack.

Does this module support redundancy for critical safety loops?

Yes. The FC-TSDO-0824 supports dual-channel redundancy. This allows the system to maintain control over field actuators even if one output path or module component experiences a fault, ensuring continuous uptime for your safety functions.

Is this unit compatible with both TS32 and TS35 DIN rails?

Yes. The universal mounting base snaps securely onto both TS32 and TS35 x 7.5 DIN EN rails, providing flexibility for different cabinet mounting standards.

How can I be sure the product is original and not a "surplus" part?

We guarantee that every FC-TSDO-0824 is 100% Brand New and Original. While some secondary sellers offer limited 30-day warrantees on used parts, our units come in original factory packing with a full 12-month factory-standard warranty, ensuring the latest hardware revision and zero previous wear.
