MicroNet TMR Digital Output Module

MicroNet TMR Digital Output Module | Woodward 5463-786

Availability: 99 left in stock

Product Overview The Woodward 5463-786 operates as a critical safety component within the MicroNet TMR (Triple Modular Redundancy) and MicroNet Plus control...

SKU: 5463-786

Manufacturer: Woodward
Product No.: 5463-786
Product Type: Industrial Relay Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

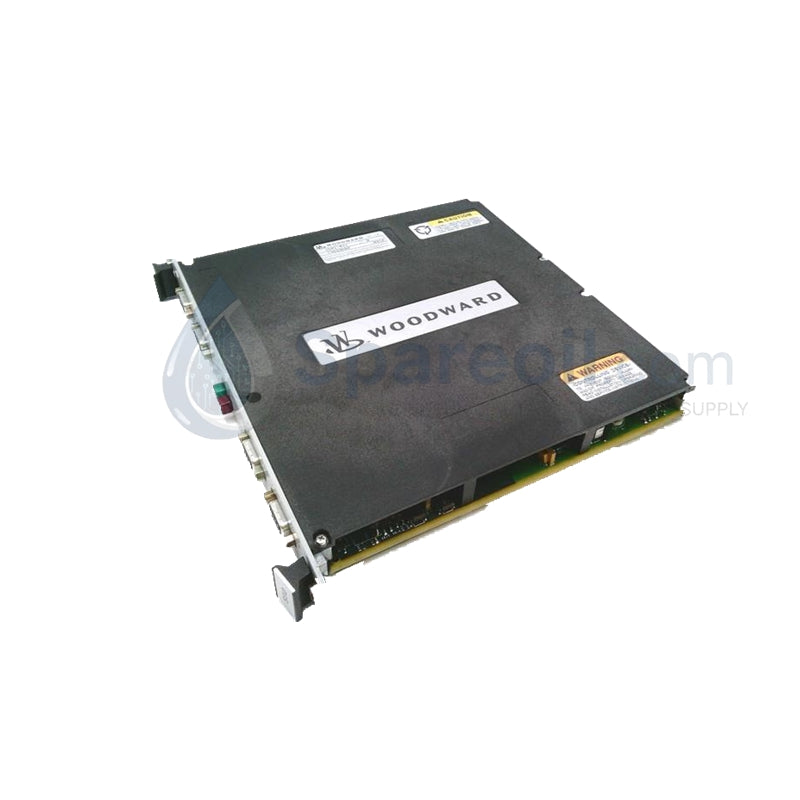

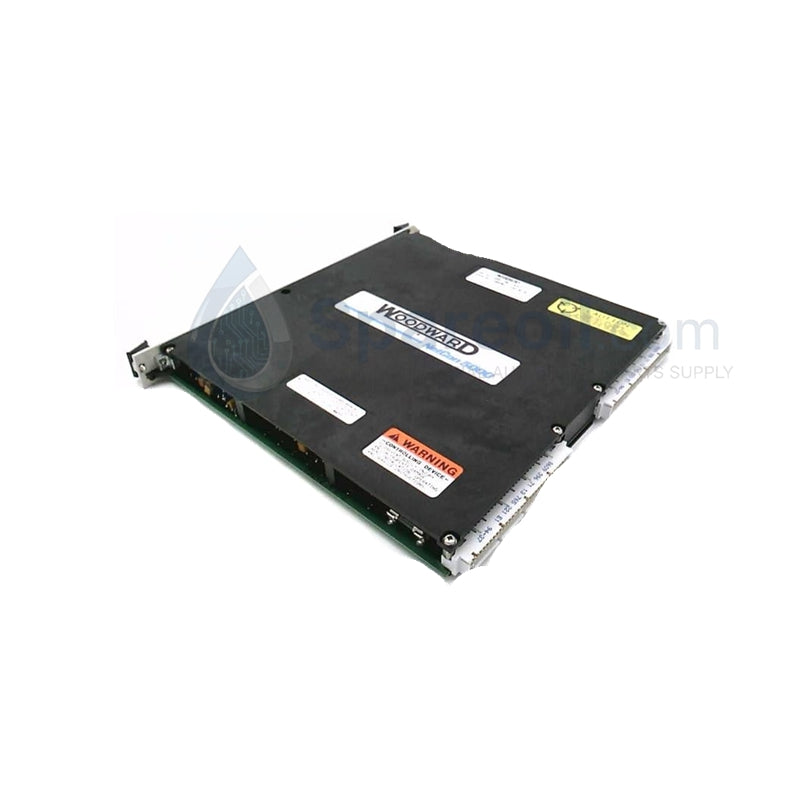

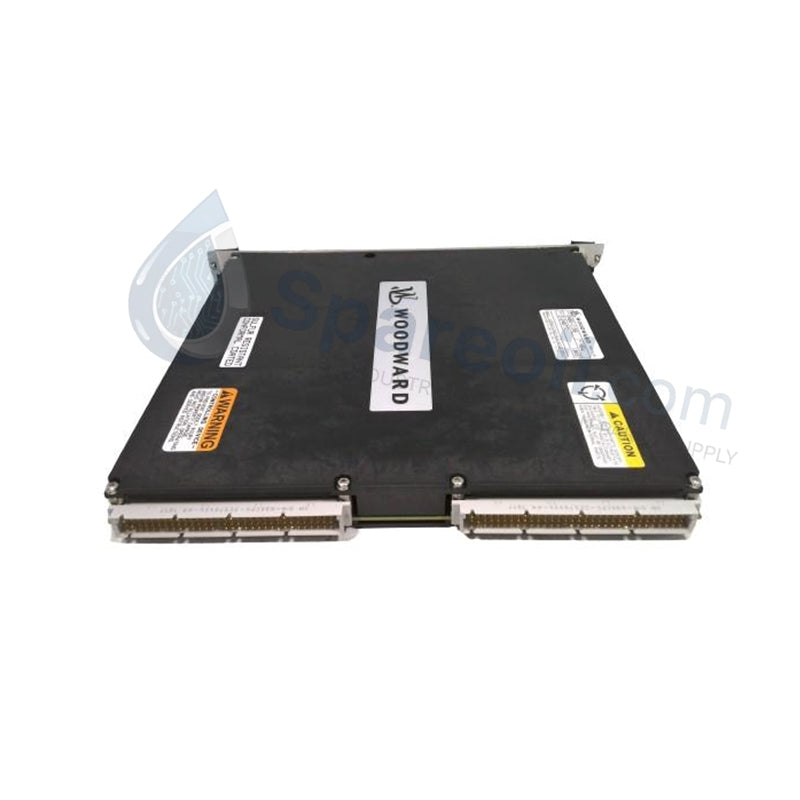

The Woodward 5463-786 operates as a critical safety component within the MicroNet TMR (Triple Modular Redundancy) and MicroNet Plus control architectures. This module provides four independent SPDT (Single Pole Double Throw) relay outputs designed to drive high-integrity control loops in turbine and engine safety systems. By employing a TMR design, the 5463-786 eliminates single-point failures, preventing accidental trips and ensuring the highest levels of operational availability in power generation and industrial processing environments.

Technical Specifications

The 5463-786 delivers high-capacity switching with extreme isolation ratings to protect the core control bus.

Attribute	Technical Data
Manufacturer	Woodward (USA)
Part Number	5463-786 (Rev.E)
Output Configuration	4 × SPDT Relays
Contact Rating (AC)	16 A @ 250 V AC
Contact Rating (DC)	16 A @ 30 V DC
Safety Integrity Level	IEC 61508 SIL 3 Certified
Isolation Strength	2500 V AC Channel-to-Channel
Response Time	≤ 1 ms
Communication Bus	Linknet Fieldbus (10 Mbps)
Operating Temperature	-40°C to +85°C
Power Supply	18–32 V DC (24 V DC Nominal)

Engineering Advantages

Fault-Tolerant Redundancy: The Triple Modular Redundant (TMR) architecture utilizes three separate voting paths for each output. This logic prevents a single hardware component failure from triggering a false shutdown or failing to trip during a genuine emergency.
High-Speed Switching Performance: With a response time of ≤ 1 ms, this module manages high-speed safety loops where milliseconds determine the safety of turbine blades and mechanical components.
Superior Channel Isolation: 2500 V AC channel-to-channel isolation prevents electrical faults in one field circuit from migrating to adjacent channels or the central MicroNet bus. This effectively "air-gaps" sensitive control logic from field-level surges.
Hot-Swappable Maintenance: Maintenance crews can replace the 5463-786 while the turbine remains online. The MicroNet backplane maintains system continuity, allowing for seamless hardware swaps without interrupting the control process.
Visual Diagnostics: Integrated Red LED fault indicators provide instant visual confirmation of channel health. This simplifies troubleshooting by identifying malfunctioning circuits at a glance, reducing mean time to repair (MTTR).
100% Brand New Condition: We offer only factory-fresh, original Woodward 5463-786 modules. This ensures the mechanical integrity of the SPDT relays and guarantees the full service life required for SIL 3 rated safety applications.

FAQs

Q: Does the Woodward 5463-786 support 4-20mA analog output?

A: While some legacy versions shared similar numbering, the 5463-786 Rev.E is primarily a Digital Output Module utilizing 4 SPDT relays. For 8-channel 4-20mA analog applications, please verify your system requirements against the Woodward MicroNet analog output module series.

Q: Is this module compatible with older MicroNet TMR systems?

A: Yes. The 5463-786 integrates via the standard 10 Mbps Linknet fieldbus. It maintains backwards compatibility with established MicroNet TMR and MicroNet Plus controller racks.

Q: What is the benefit of the SPDT relay configuration in safety systems?

A: SPDT (Single Pole Double Throw) relays provide both "Normally Open" and "Normally Closed" contacts. This allows engineers to design "fail-safe" or "fail-fixed" circuits depending on whether the application requires a de-energize-to-trip or energize-to-trip logic.

Q: Can this module withstand outdoor enclosure temperatures?

A: Absolutely. The extended operating range of -40°C to +85°C makes it one of the most resilient modules in the Woodward catalog, ideal for turbine enclosures located in extreme arctic or desert environments.
