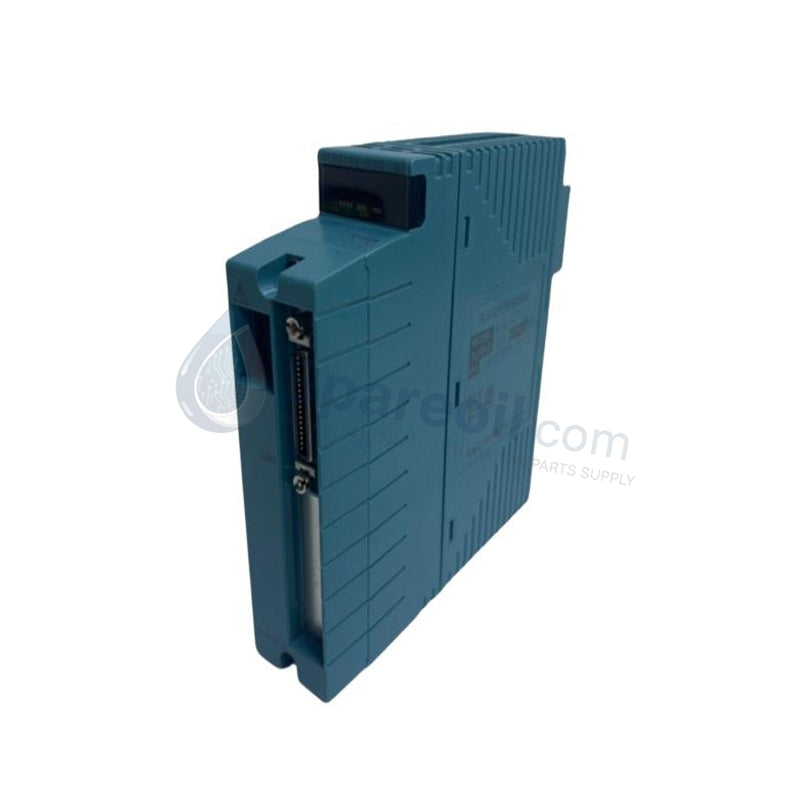

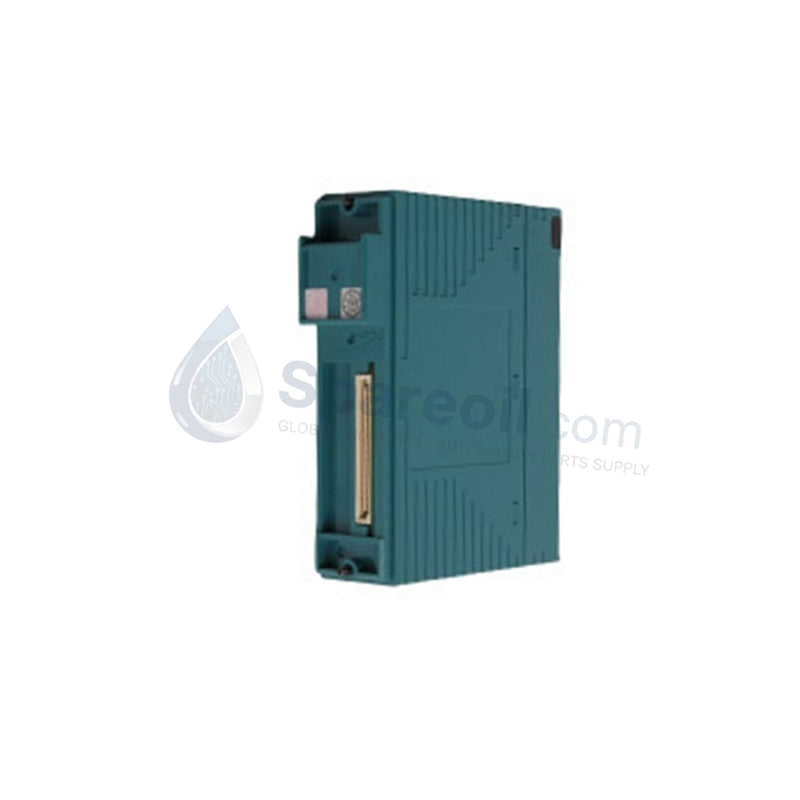

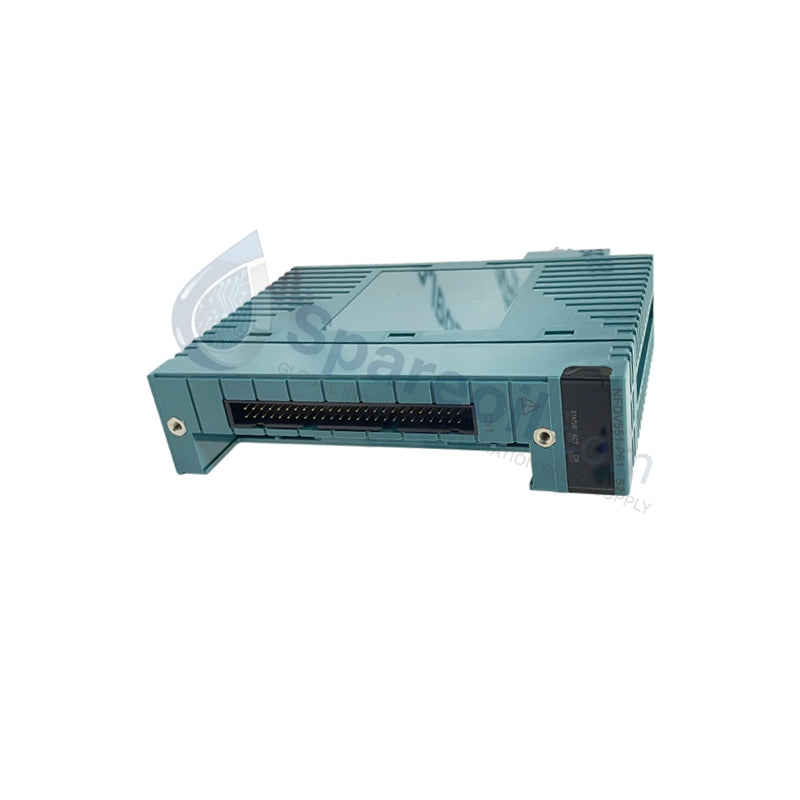

Yokogawa NFDV551-P60 STARDOM/CENTUM VP Series Digital Output Module

The Yokogawa NFDV551-P60, also cataloged as the NFDV551 Digital Output Module, operates as a dedicated hardware component for driving solid-state field loads within STARDOM and CENTUM VP industrial automation networks.

Suffix Breakdown & Model Matrix

  • Base Model: NFDV551 (Digital Output Module, 32 Channels)
  • -P: Standard type
  • 6: With status display
  • 0: Basic type
  • Option /D5S10: Terminal block with surge absorber

Hardware Specifications

Parameter Specification
Model NFDV551-P60/D5S10
Brand Yokogawa
Origin Japan
Weight 200 g
Dimensions 90 x 60 x 30 mm
Operating Temp -40 to 80 deg C
Power Consumption 3 W
Output Channels 32
Rated Applied Voltage 24 VDC
Load Voltage Range 20.4 - 26.4 VDC
Output Type Current-sink transistor output
Maximum Load Current 100 mA per channel @ 26.4 VDC
Leak Current (OFF) 0.1 mA or less
Output Response Time 3 ms or less
Isolation Voltage 2000 VAC for 1 minute (Output to system)

Process Control and DCS Instrumentation Features

The module utilizes optocouplers to establish rigid galvanic separation between the internal backplane logic and external field wiring. This loop topology integrates channel-to-channel group isolation rated at 500 VAC between individual 16-channel common paths. The integrated /D5S10 terminal configuration provides transient surge absorption directly across the 24 VDC line loops to prevent back-EMF spikes from inductive actuators from degrading the switching transistors. Furthermore, the unit features configurable fallback safety states, allowing the output logic to execute explicit HOLD or FORCE OFF operations when backplane communication faults are detected.

Frequently Asked Questions

Q: What physical limitations govern the hot-swap capability of this module?

A: Hot-swapping must be executed only when the backplane is in a stable state and the specific field-side common terminal block is isolated from active 24 VDC power lines to prevent terminal arcing.

Q: How does the module handle inductive load configurations without damaging the internal circuits?

A: The module relies on the integrated /D5S10 surge absorber terminal matrix to suppress voltage spikes. If driving high-current external relays, external flywheel diodes must be wired in parallel across the load.

Q: What is the maximum allowable backplane current draw for the logic circuitry?

A: The module draws a maximum of 700 mA from the 5 VDC system backplane logic power supply rail.

Field Installation Guidelines

  • DIN-Rail Mounting Stability: Snapping the module onto the 35 mm DIN-rail requires verification of the rear locking clip engagement. Ensure the module is seated perpendicular to the rail to prevent stress on the backplane connector pins.
  • Shield Grounding Terminations: Connect all field cable shields to a single, dedicated low-impedance instrument ground bus. Do not loop ground wires or connect shields at both ends to prevent the formation of ground loops.
  • Wiring Separations: Route the 24 VDC discrete output lines in separate wire ducts away from high-voltage AC power lines and variable frequency drive (VFD) motor cables to suppress cross-talk and electromagnetic interference.
  • Terminal Screw Torque: Tighten all pressure-clamp terminal block screws to the manufacturer-specified torque limits to ensure gas-tight electrical contact and prevent loose connections under high-vibration conditions.
