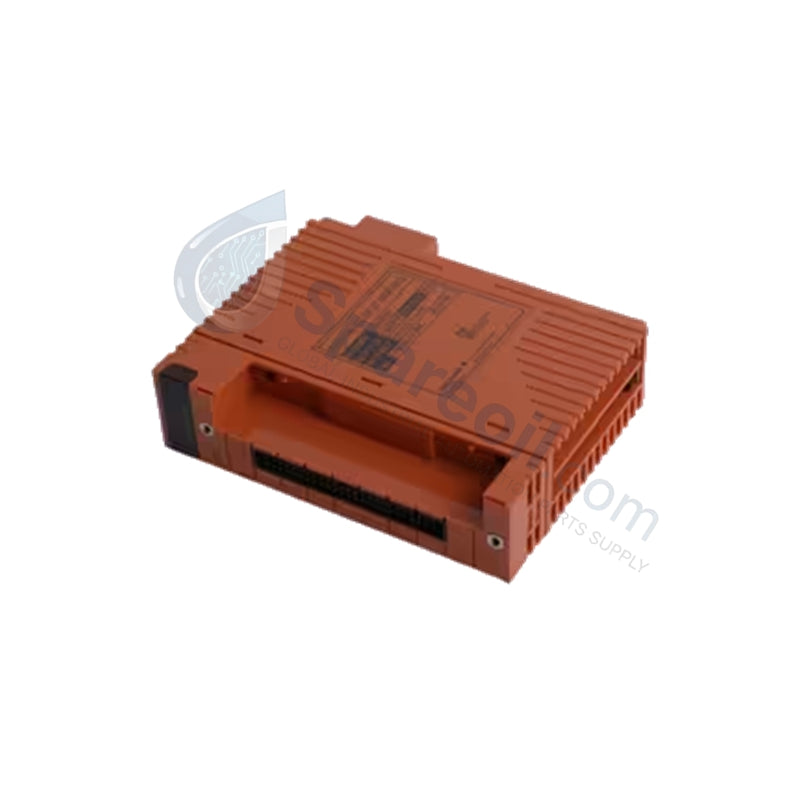

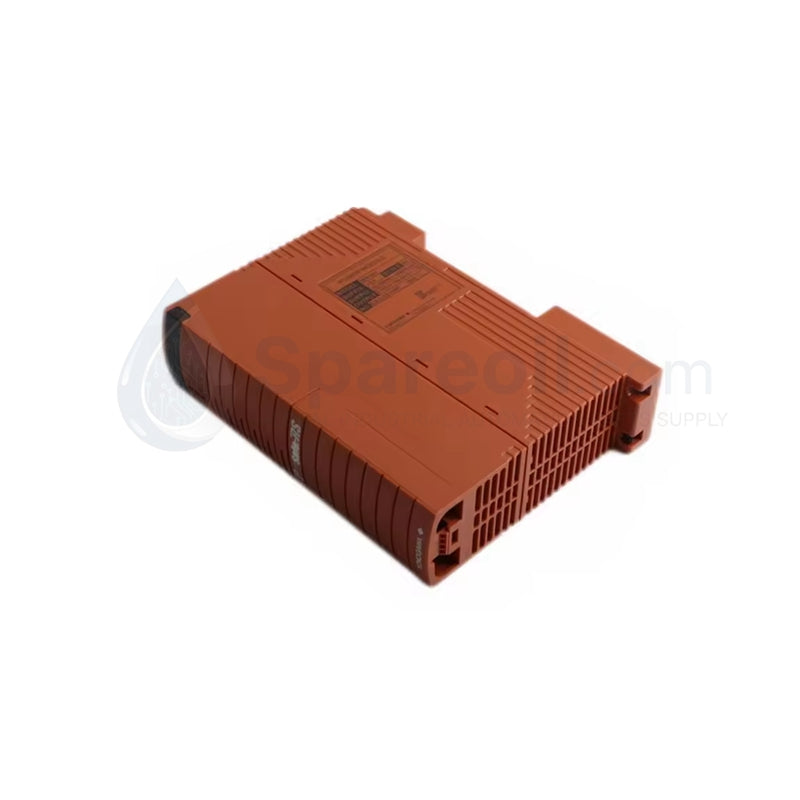

Yokogawa SNT501-53 Optical ESB Bus Repeater Slave Module

The Yokogawa SNT501-53, also cataloged as the SNT501 Optical ESB Bus Repeater Slave Module, operates as a dedicated hardware component for field-level discrete and analog network data compilation within CENTUM VP and CS3000 FIO platforms.

Suffix Breakdown & Model Matrix

Suffix Code Functional Description
-5 Configuration with no explosion protection architecture
3 Conformal coating matching ISA Standard G3 specifications; designated operational temperature parameters (-20 to +70 deg C) intended exclusively for maintenance deployment

Hardware Specifications

Parameter Specification
Model SNT501-53 (Style S1)
Brand Yokogawa
Origin Japan
Weight Net module weight: 0.35 kg (Gross shipping package weight: 3 kg)
Dimensions 190 mm x 40 mm x 120 mm
Operating Temp -20 to +70 deg C (Maintenance restricted performance profile)
Power Consumption Derived from primary FIO base unit supply rails
Connection Type High-density terminal block interface matching FIO base rows
Dielectric Strength 1500 V AC executed for 1 minute duration
Insulation Resistance Minimum 100 MOhm measured at 500 VDC
Relative Humidity 10% to 90% RH, non-condensing
Environmental Rating ISA Standard G3 severe corrosion resistance compliance

Process Control & DCS Instrumentation Properties

The Yokogawa SNT501-53 implements high-integrity channel-to-channel isolation matrices across its bus distribution lanes to prevent field-borne transient voltages from degrading active processing backplanes. The device uses specific hardware layouts to preserve 4-20 mA HART loop protocol parameters and prevent signal attenuation during long-distance transmission over Optical ESB bus links. Built-in diagnostic subroutines track signal integrity continuously, feeding real-time communication statistics back to the primary Field Control Unit to detect layout degradation inside corrosive G3 environments.

Frequently Asked Questions

Q: How does the G3 environmental coating configuration impact module performance across long service lifecycles?

A: The G3 conformal coating uses a specialized chemical layer to protect raw copper traces and solder joints from corrosive ambient gases like hydrogen sulfide and sulfur dioxide. This protection maintains strict dielectric properties and stops microscopic dendrite growth from shorting adjacent bus data lines.

Q: Is hot-swapping or live extraction supported for the SNT501-53 module while bus data is actively transmitting?

A: No. The card does not support hot-swapping during live data operations. Removing the module while energized causes immediate impedance mismatches on the ESB bus, breaking the serial communication link and halting all connected I/O processing loops instantly.

Q: What are the installation constraints regarding suffix code 3 maintenance deployment limitations?

A: Suffix code 3 defines specific thermal and environmental boundaries optimized for matching existing legacy legacy footprints during field swap-outs. Do not use this specific hardware profile when designing new system architectures; specify current production models instead to avoid future parts availability issues.

Field Installation Guidelines

  • FIO Base Mechanical Engagement: Slide the module straight into the designated track on the S2B series FIO base unit. Ensure the rear multi-pin connector block mates completely with the backplane receiver before tightening the integrated retention fasteners.
  • Shielding Ground Infrastructure: Terminate all incoming network cable shields exclusively at the primary instrumentation grounding bus bar inside the local node cabinet. Do not ground both ends of the cable to prevent high-frequency current loops from distorting data tracking.
  • Corrosive Area Mounting Checks: Verify that the enclosure seals maintain positive pressure inside areas with high gas concentration. While the module has a G3 rating, keeping ambient relative humidity below 90% prevents condensation from forming on active terminal points.
  • Conduit and Routing Layout Separation: Route all fiber optic links and low-voltage ESB bus lines away from high-voltage AC motor lines or inductive switching paths. Maintain separate physical cable trays to eliminate electromagnetic interference.
