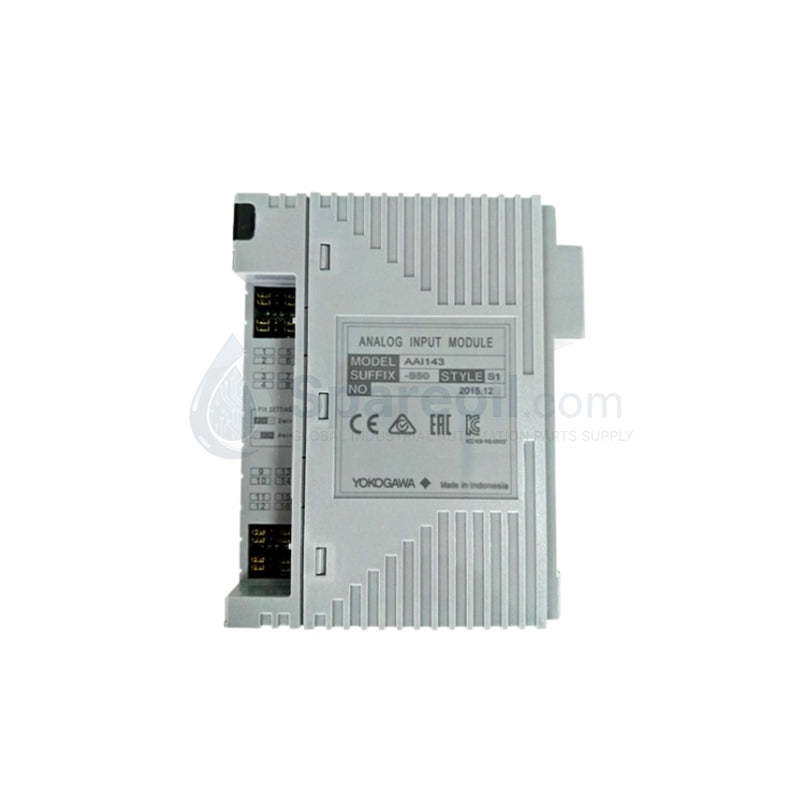

Yokogawa AAI143-S50 Analog Input Module

Yokogawa AAI143-S50 Analog Input Module | New & Original Stock

Availability: 99 left in stock

Yokogawa AAI143-S50/K4S00 Analog Input Module The Yokogawa AAI143-S50/K4S00, also cataloged as the AAI143-S50 Analog Input Module, operates as a dedicated...

SKU: AAI143-S50

Manufacturer: Yokogawa
Product No.: AAI143-S50
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AAI143-S50/K4S00 Analog Input Module

The Yokogawa AAI143-S50/K4S00, also cataloged as the AAI143-S50 Analog Input Module, operates as a dedicated hardware component for converting analog signals from field transmitters into digital values within CENTUM VP, CS3000, and ProSafe-RS FIO platforms.

Hardware Specifications

Parameter	Specification
Model	AAI143-S50/K4S00 (Includes Suffix/Option Variant Breakdown)
Brand	Yokogawa
Origin	Japan
Weight	2.0 kg (Total shipping weight package; module baseline ~0.3-0.4 kg)
Dimensions	Not specified (standard FIO form factor slot width)
Operating Temp	0 to +60 deg C (Standard environment envelope)
Power Consumption	230 mA @ 5 VDC, 540 mA @ 24 VDC
Channels	16 Isolated Analog Input Channels
Signal Input Envelopes	4-20 mA DC, 0-20 mA DC, 1-5 V DC, 0-10 V DC, +-10 V DC, TC, RTD, mV
Input Resistance	Current: 250 Ohm; Voltage: >=1 MOhm
Signal Accuracy	+-0.1% of span (at 25 deg C), +-0.2% over full temperature range
Update Period	10 ms typical (Configurable up to 1 s)
Galvanic Isolation	Channel-to-channel and channel-to-system (Withstands 1500 VAC for 1 minute)
Cold Junction Compensation	Built-in sensor, +-1 deg C accuracy for thermocouple inputs
Optional Blocks	/A4S00 Configuration matches Pressure Clamp Terminal Block (Model: ATA4S-00)

Process Control & DCS Instrumentation Properties

The Yokogawa AAI143-S50/K4S00 implements full channel-to-channel isolation to block common-mode noise voltages and eliminate ground loops across field networks. Built-in cold junction compensation (CJC) routing provides automatic offset balancing for thermocouple input types, supporting sensor variations including K, J, E, T, R, S, B, N, WRe, and PLII without external reference modules. This specific S50 base processing engine does not process HART loop protocols natively, operating instead as a purely analog-to-digital signal conversion barrier with integrated wire-breakage and thermocouple open-circuit diagnostics.

Frequently Asked Questions

Q: Does this specific S50 variant support HART passthrough communications to the asset management software?

A: No, the AAI143-S50 architecture is standard type non-HART. Handheld calibrators or secondary modem links cannot extract digital HART sub-packets through this card. Digital instrument validation loops require the Alternative "H" suffix module (AAI143-H50).

Q: What step must be performed regarding unassigned or unused channels on the termination block?

A: Unused analog input channels must be shorted physically at the pressure clamp terminal connection or explicitly disabled in the system builder configuration tool. Leaving channels un-terminated can introduce stray electrostatic induction and display false open-circuit diagnostic codes.

Q: How is power provided to external two-wire loop transmitters when utilizing this module?

A: The AAI143-S50 serves as an isolated sink reader interface. External loop distribution power or dedicated powered terminal distribution boards must be integrated into the loop wire schedule to energize standard two-wire passive transmitters.

Field Installation Guidelines

Terminal Assembly Interlocking: Secure the module into the active FIO backplane slot tracking. When optioned with the /A4S00 code, fasten the ATA4S-00 pressure clamp terminal block using the integral retaining screws to ensure proper interface continuity.
Shield Grounding Infrastructure: Route individual instrument wires using twisted-pair, shielded cables. Connect the shield drain wire to the dedicated instrumentation terminal bus bar inside the cabinet housing; do not connect ground braids at both terminal ends to prevent induction paths.
Low-Voltage Cable Separation: Segregate the low-level 4-20 mA, millivolt, and RTD sensor cables from high-current AC motor leads, relay control busways, or dynamic switching circuits to retain a high common-mode rejection ratio (CMRR).
Screw Torque Enforcement: Verify that all field pressure clamp termination screws are secured to designated tight-torque ratings. Loose wire clamping can induce input resistance spikes, distorting the conversion accuracy metrics across the 10 ms update cycle.
