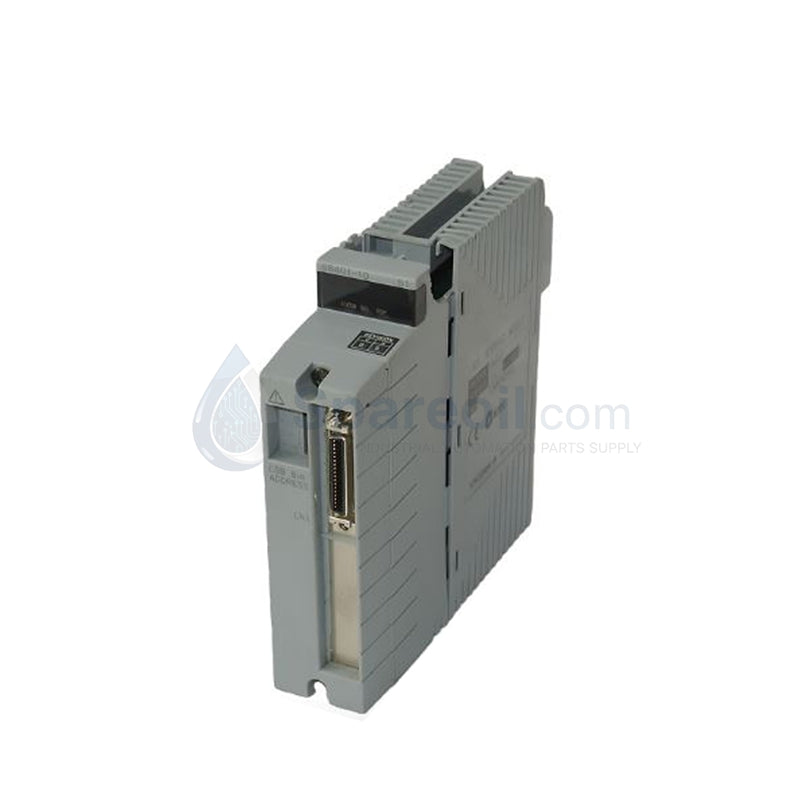

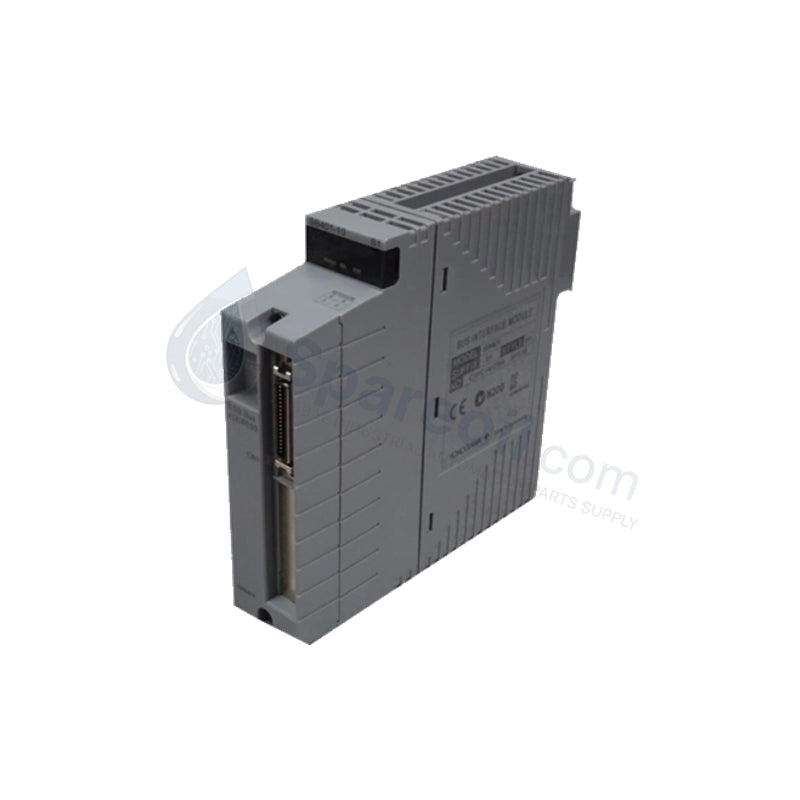

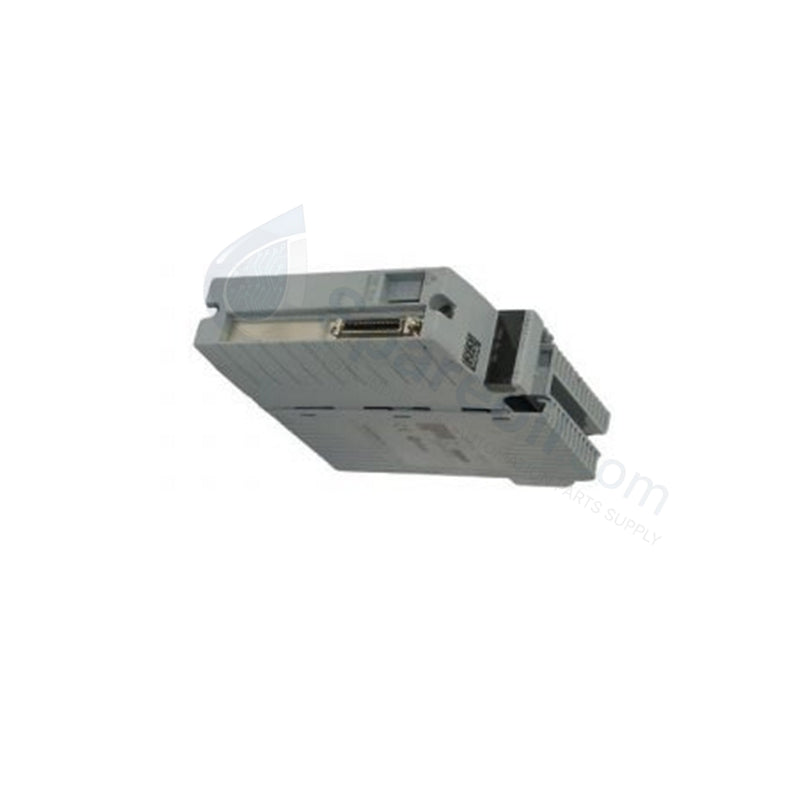

Yokogawa AAI841-S50 CENTUM VP Analog Input Module

Configured for 4-20 mA current signal acquisition in CENTUM VP platforms, the Yokogawa AAI841-S50 (AAI841 Analog Input Module) provides direct physical/electrical execution. The hardware establishes connection interfaces for up to 16 analog input channels, converting incoming loop signals into digitized process variables for localized Field Control Station routing.

Suffix Breakdown & Model Matrix

Suffix / Identifier	Code	Description
Base Model	AAI841	Analog Input Module (16-channel configuration)
Environmental Code	-S50	ISA Standard G3 conformal coating for environmental protection

Hardware Specifications

Parameter	Specification
Model	AAI841-S50
Brand	Yokogawa
Origin	Japan
Weight	0.35 kg
Dimensions	Standard FIO module block profile
Operating Temp	-20 to +70 deg C
Power Consumption	320 mA at 5 V DC
Number of Channels	16 points
Input Signal Type	4-20 mA DC
Input Impedance	250 ohm
Measurement Accuracy	+-0.1% of full scale
System Isolation Voltage	1500 V AC (1 minute duration)
Update Cycle	40 ms
Installation Type	FIO (Field Interface Unit) baseplate mounting

4-20 mA HART Loop Protocol Integration

The hardware manages 16 independent 4-20 mA HART loop protocol lines via internal 250 ohm termination resistors. The physical circuitry incorporates optical isolation components that establish a 1500 V AC barrier separating field wiring paths from the primary system bus. This channel-to-system isolation framework controls ground loop currents and limits common-mode electrical noise propagation, preserving data transmission accuracy across parallel processing nodes.

Frequently Asked Questions

Q: How does the internal logic of the AAI841-S50 react if a field loop wire fractures?

A: The module executes loop monitoring checks constantly. When input current loops dip below specified boundaries due to a broken line, an out-of-range flag updates inside the system registers within the 40 ms update cycle to notify the controller.

Q: Does the -S50 suffix alter the electrical specifications of the base model?

A: No. The -S50 designator indicates the factory application of an ISA Standard G3 conformal coating for corrosion resistance and extended thermal protection, maintaining the exact same input impedance and resolution baselines as the standard chassis variant.

Field Installation Guidelines

Insert the plug-in module vertically into the dedicated FIO baseplate position, verifying that the top and bottom physical alignment clips engage completely to prevent contact resistance.
Ground all field cable shields explicitly at a single instrumentation earth bar inside the marshalling enclosure to eliminate localized ground potential shifts.
Run low-voltage analog signal lines through separate cabinet wiring ducts partitioned from high-current AC power elements or inductive switching circuitry.
Maintain unobstructed convection spaces around the FIO chassis to prevent local heat concentration from rising past the +70 deg C operating threshold.
