AIP504-10 YOKOGAWA Series Datasheet & Technical Manual

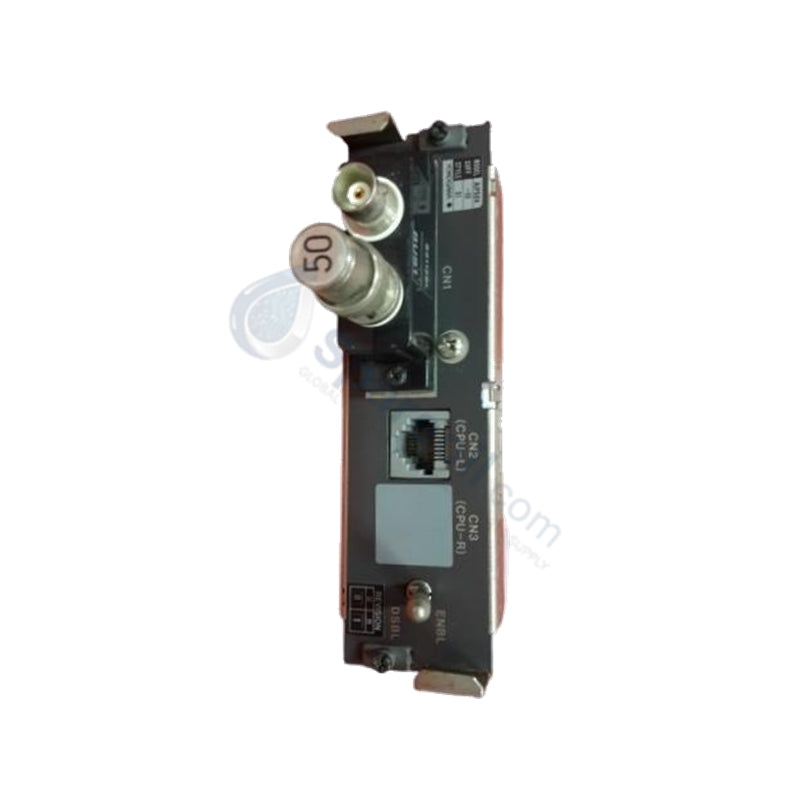

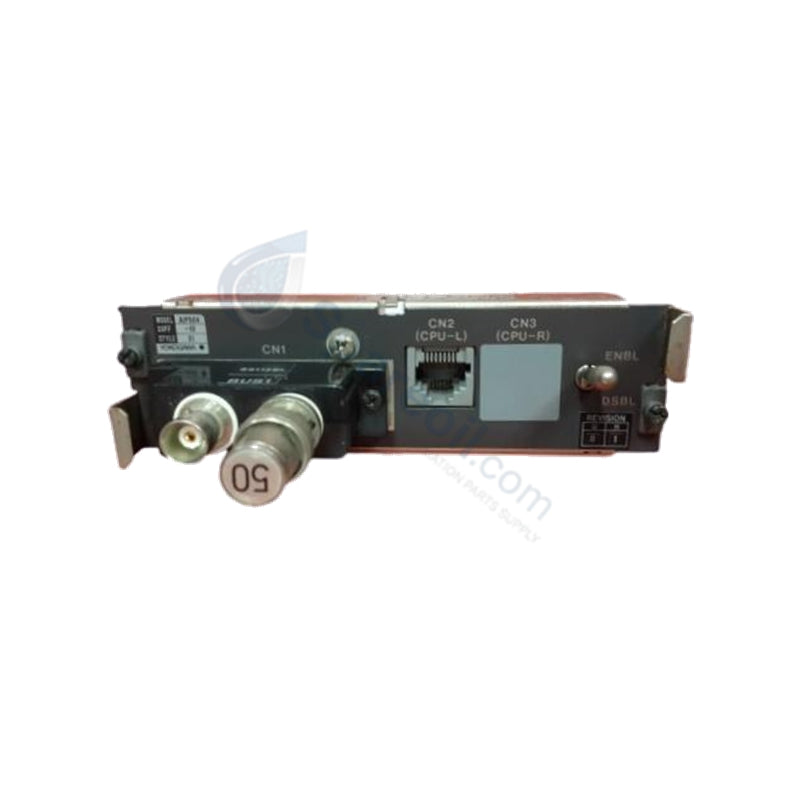

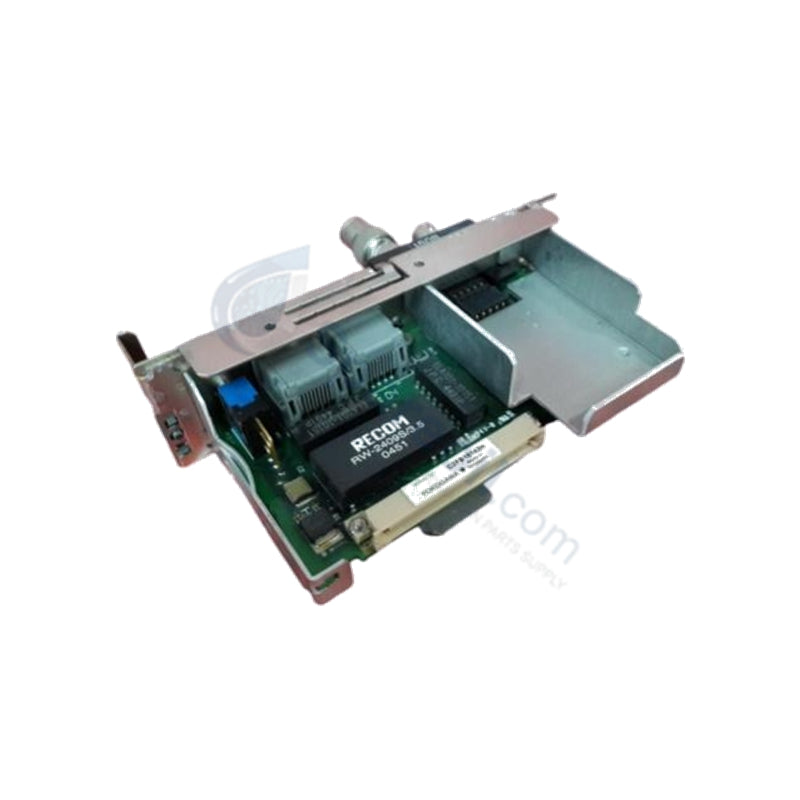

YOKOGAWA AIP504-10 CENTUM VP V-net Coupler Power Supply Module

YOKOGAWA AIP504-10 CENTUM VP V-net Coupler Power Supply Module

Availability: 99 left in stock

YOKOGAWA AIP504-10 V-net Coupler Power Supply Unit Configured for power conversion and V-net network coupling within CENTUM VP and CS...

SKU: AIP504-10

Manufacturer: Yokogawa
Product No.: AIP504-10
Product Type: Power Supply Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 5500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA AIP504-10 V-net Coupler Power Supply Unit

Configured for power conversion and V-net network coupling within CENTUM VP and CS control systems, the YOKOGAWA AIP504-10 (AIP504-10 Power Supply Module) provides direct physical and electrical execution of 24 VDC output distribution for rack-mounted instrumentation.

Hardware Specifications

Parameter	Specification
Model	AIP504-10
Brand	YOKOGAWA
Origin	Japan
Weight	5.5 kg
Dimensions	482.6 mm x 132.5 mm x 205 mm
Operating Temp	0 deg C to 50 deg C
Power Consumption	250 VA
Output Current	10 A

Power Distribution and Network Coupling

The AIP504-10 facilitates stable DC power delivery while maintaining the signal integrity of the V-net bus communication network. By converting 100-240 VAC mains input to a regulated 24 VDC output, the module ensures that control processors, communication units, and I/O modules remain within their operational voltage tolerances. The power stage includes integrated overcurrent and thermal protection to prevent cascading failures in the event of a field-side short circuit. When deployed in dual-redundant configurations, the unit enables seamless load sharing and failover capabilities, preventing power-related downtime in continuous process control environments.

Frequently Asked Questions

Q: Does the AIP504-10 module support load sharing in a dual-redundant configuration?

A: Yes. The module is engineered for parallel operation where two units can supply the common 24 VDC bus. Internal circuitry manages current balancing to ensure that neither unit exceeds its 10 A output capacity.

Q: What are the primary indicators of a power supply failure?

A: Failure is indicated by status LEDs on the front panel and a diagnostic alarm sent through the V-net bus. Loss of 24 VDC output or activation of the thermal protection circuit will trigger an immediate status change, which should be monitored via the CENTUM VP engineering station.

Field Installation Guidelines

Ensure the AC input source is isolated before mounting the unit into the 3U rack assembly.
Verify that the AC input voltage selector (if applicable to the specific revision) is matched to the local power grid (100-120 VAC or 220-240 VAC).
Connect the 24 VDC output terminals to the system backplane, ensuring high-gauge cabling is used to minimize voltage drop over distance.
Secure the unit using the rack-mount brackets to ensure proper thermal dissipation through the chassis surface.
Perform a load test by monitoring the voltage stability while the system is under typical I/O demand before commissioning into a production loop.
